HOMCOM 6-Bottle Thermoelectric Wine Cooler Instruction Manual

1. Entwodiksyon

Mèsi pou acha aasing the HOMCOM 6-Bottle Thermoelectric Wine Cooler. This appliance is designed to store your wine at optimal temperatures, ensuring its quality and readiness for enjoyment. This manual provides essential information for the safe and efficient use of your wine cooler. Please read it thoroughly before installation and operation, and retain it for future reference.

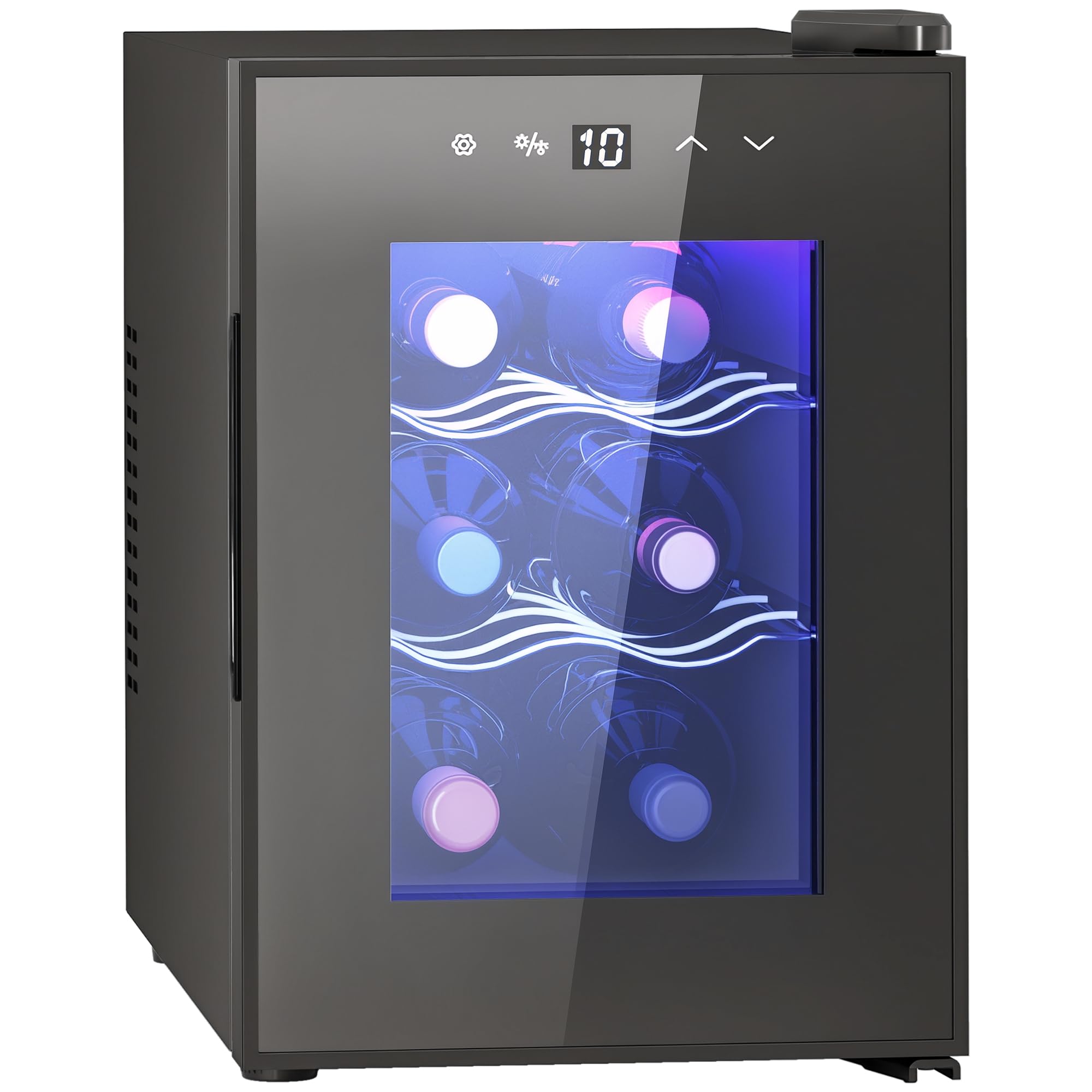

The HOMCOM 6-Bottle Thermoelectric Wine Cooler, showcasing its sleek black design and illuminated interior.

2. Enstriksyon Sekirite

• Li tout enstriksyon yo anvan ou sèvi ak aparèy la.
• Asire ekipman pou pouvwa a voltage koresponn ak etikèt klasman ki sou aparèy la.
• Pa opere aparèy la ak yon kòd oswa ploge ki domaje.
• Kenbe ouvèti vantilasyon yo klè ak obstak.
• Pa sere sibstans eksplozif tankou bwat ayewosòl ak yon pwopilsif ki ka pran dife nan aparèy sa a.
• Aparèy sa a fèt pou itilize nan kay la sèlman.
• Deploge aparèy la anvan netwaye oswa antretyen.
• Pa kite timoun yo jwe ak aparèy la.

3. Pake kontni

Verifye ke tout konpozan yo prezan nan pake a:

• Wine Cooler Unit (Base/Main Unit)
• Door (pre-installed)
• Shelves (2 chrome, adjustable)
• Manyèl Enstriksyon

4. Enstalasyon ak Enstalasyon

4.1 Debake

Carefully remove the wine cooler from its packaging. Remove all packing materials, including foam and tape. Inspect the unit for any damage incurred during shipping. If damage is found, do not operate the unit and contact customer support.

4.2 Plasman

Place the wine cooler on a flat, stable surface away from direct sunlight and heat sources (e.g., ovens, radiators). Ensure there is adequate ventilation around the unit. A minimum of 10 cm (4 inches) clearance should be maintained on the sides and back for proper air circulation. The compact design allows it to fit under countertops or on desks.

This image illustrates the compact size of the wine cooler, measuring 39.3 cm in height, 26.5 cm in width, and 51.5 cm in depth, making it suitable for various spaces while accommodating 6 standard 750ml wine bottles.

4.3 Nivelman

The wine cooler is equipped with adjustable feet. Use a spirit level to ensure the unit is perfectly level. Adjust the feet by turning them clockwise or counter-clockwise until the unit is stable and level. This helps ensure proper door sealing and efficient operation.

4.4 Premye pouvwa-sou

After placement and leveling, wait at least 2 hours before plugging the unit into a power outlet. This allows the cooling system fluids to settle. Once plugged in, the unit will begin to cool. Allow it to run for several hours empty to reach the desired temperature before loading bottles.

5. Operasyon Enstriksyon

5.1 Kontwòl Panel

The wine cooler features a touch control panel with an LED display located on the top front of the unit. This panel allows you to adjust the temperature, control the interior light, and switch between temperature units.

The intuitive touch control panel with an LED display allows precise temperature adjustments between 8-18°C and switching between Celsius and Fahrenheit. It also features a control for the soft blue interior light.

5.2 Ajisteman Tanperati

The wine cooler maintains a temperature range of 8-18°C (46-64°F). Use the up and down arrows on the control panel to set your desired temperature. The LED display will show the current internal temperature. You can switch between Celsius and Fahrenheit by pressing the dedicated button (often labeled °C/°F).

A helpful guide indicating optimal temperature ranges for various wine types, including sparkling, red, white, and sweet wines, to ensure they are served at their best.

5.3 Chaje Boutèy yo

The wine cooler includes two chrome shelves designed to hold up to 6 standard 750ml wine bottles. The shelves are adjustable, allowing you to reposition them to accommodate larger bottles such as champagne or cava if needed. Ensure bottles are placed securely to prevent rolling.

The interior of the wine cooler features two adjustable chrome shelves, allowing flexible storage for up to 6 standard bottles or larger bottles like champagne.

5.4 Interior Light

The wine cooler features a soft blue LED interior light. This light can be turned on or off using the dedicated light button on the control panel. It provides visibility of your wine collection without emitting heat that could affect the internal temperature.

5.5 Advanced Cooling System

This wine cooler utilizes a dual thermoelectric cooling system, which provides rapid and efficient temperature maintenance. It operates quietly, typically below 35dB, ensuring minimal disturbance in your home or office environment. The system also features an air circulation fan for even cooling and is designed for energy efficiency (Class E).

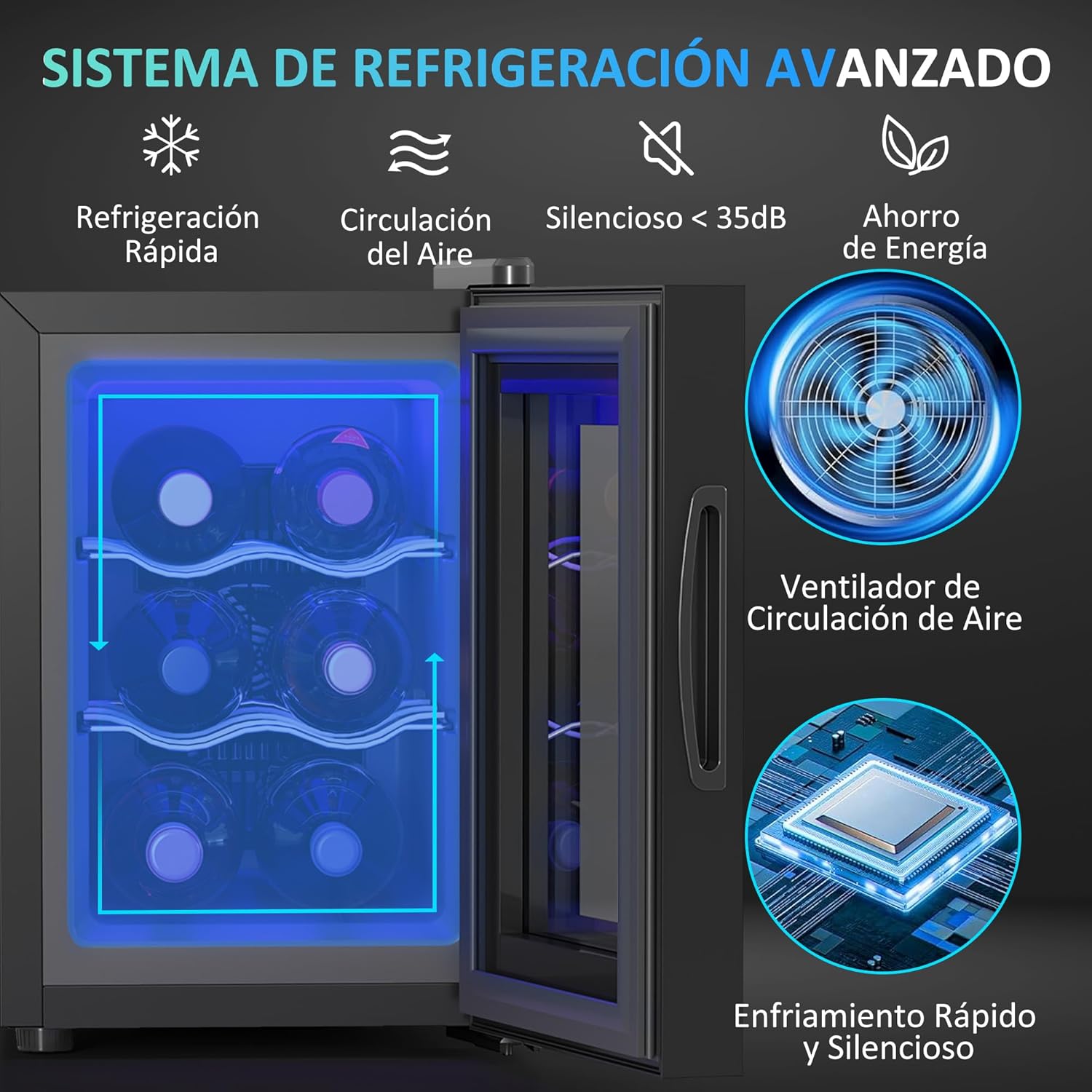

This image details the advanced cooling system, highlighting rapid cooling, efficient air circulation, quiet operation below 35dB, and energy-saving benefits.

A visual representation demonstrating the ultra-quiet operation of the wine cooler, rated at 35dB, which is quieter than a normal conversation and barely audible, ensuring minimal disturbance.

5.6 UV Protection

The wine cooler is equipped with a triple-layered tempered glass door that offers UV resistance. This feature protects your wine from harmful ultraviolet rays, which can degrade wine quality over time, while also helping to maintain a stable internal temperature.

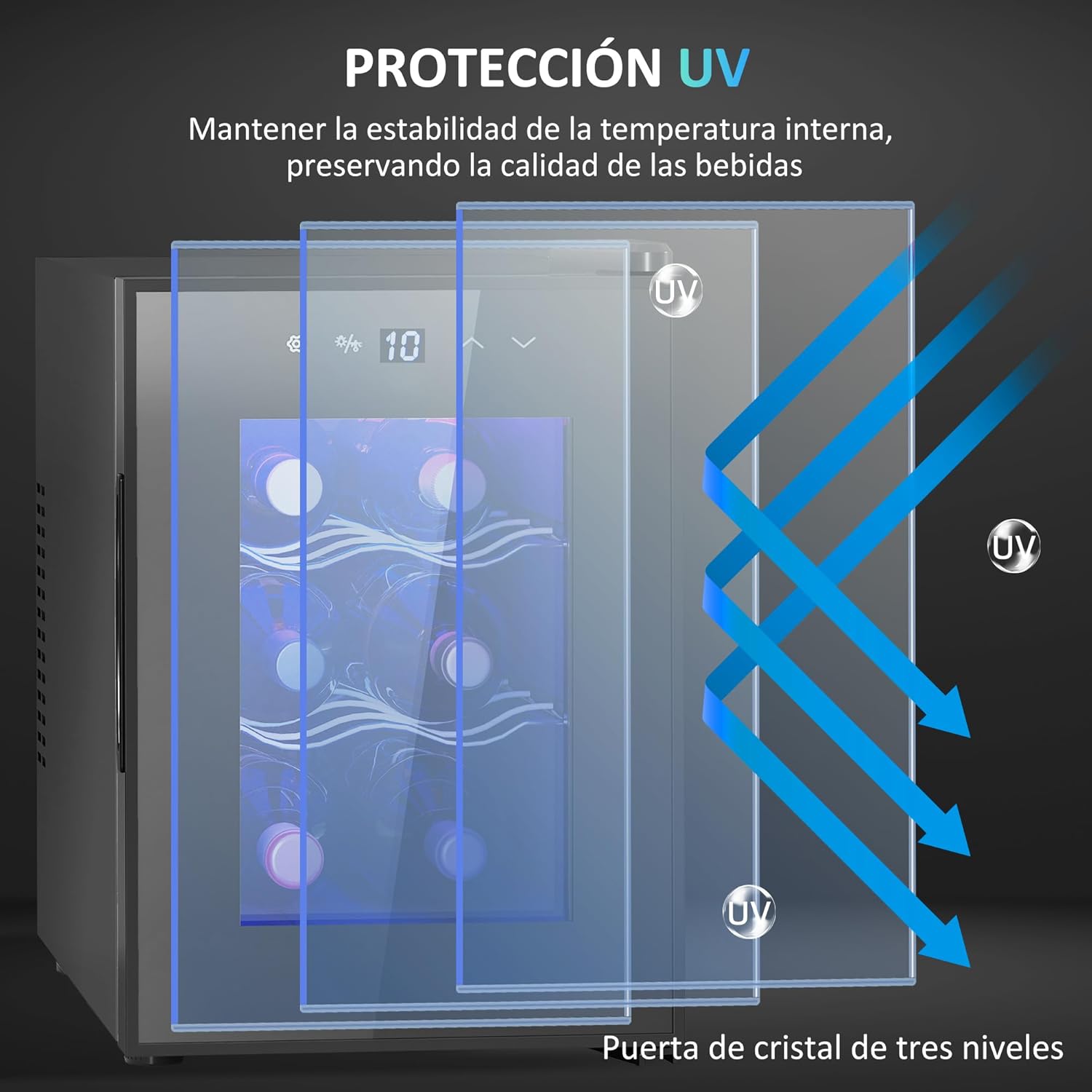

The wine cooler features a triple-layered tempered glass door with UV resistance, which helps maintain a stable internal temperature and protects wine from harmful UV rays.

6. Antretyen

6.1 Netwayaj

• Enteryè: Debranche aparèy la anvan ou netwaye li. Sèvi ak yon twal mou.ampened with a mild detergent solution to clean the interior surfaces. Avoid abrasive cleaners or solvents. Dry thoroughly before plugging the unit back in.
• Eksteryè: Siye eksteryè a ak yon mou, damp Pou pòt an vit la, sèvi ak yon pwodui netwayaj pou vit.
• Etajè: The chrome shelves can be removed and washed with warm soapy water. Dry completely before returning them to the unit.

6.2 Dekonjle

This wine cooler features an automatic defrost system. Frost buildup on the back wall will periodically melt and drain into a collection tray at the back of the unit, where it evaporates. No manual defrosting is typically required.

6.3 Peryòd Pwolonje Pa Itilizasyon

If the wine cooler will not be used for an extended period, unplug it, empty all contents, clean the interior, and leave the door slightly ajar to prevent odors and mold growth.

NAN. Depanaj

If problems persist after checking the above, please contact customer support.

8. Espesifikasyon

9. Enfòmasyon sou Garanti

This HOMCOM wine cooler comes with a 2-ane garanti from the date of purchase. This warranty covers manufacturing defects and material faults under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, accident, unauthorized modification, or improper installation.

10. Sipò pou Kliyan

For any questions, technical assistance, or warranty claims, please contact the seller or HOMCOM customer service. Please have your model number (800-245V90BK) and proof of purchase ready when contacting support.

You can find more information and contact details on the official HOMCOM websit entènèt la oubyen atravè revandè w la.
