Entwodiksyon
This manual provides detailed instructions for the safe installation, operation, and maintenance of your ALIYIQI Modern Nickel Glass Bubble Chandelier. Please read this manual thoroughly before installation and retain it for future reference.
The chandelier features a unique design with swirled clear glass globe shades and a sleek nickel finish, offering both elegance and a playful aesthetic. It is designed to be a focal point in various interior spaces.
Enfòmasyon enpòtan sou sekirite
- Always turn off the main power supply at the circuit breaker before beginning any electrical work.
- Se yon elektrisyen kalifye oswa yon moun konpetan ki dwe fè enstalasyon an.
- Asire w tout koneksyon fil yo byen fèm epi konfòm ak kòd elektrik lokal yo.
- Pa depase wat maksimòm lantage espesifye pou anpoul yo.
- Manyen konpozan an vè yo avèk prekosyon pou evite yo kraze.
- Kenbe timoun yo lwen zòn enstalasyon an.
Ki sa ki nan bwat la
Verifye ke tout konpozan yo prezan epi yo pa domaje anvan ou kontinye ak enstalasyon an.
- Mounting Materyèl
- Glass Bubble Shades (12 large at 5.9" diameter, 6 small at 4.7" diameter)
- Chandelier Frame with 12 E12 bulb sockets
- Adjustable Hanging Cord (up to 86")

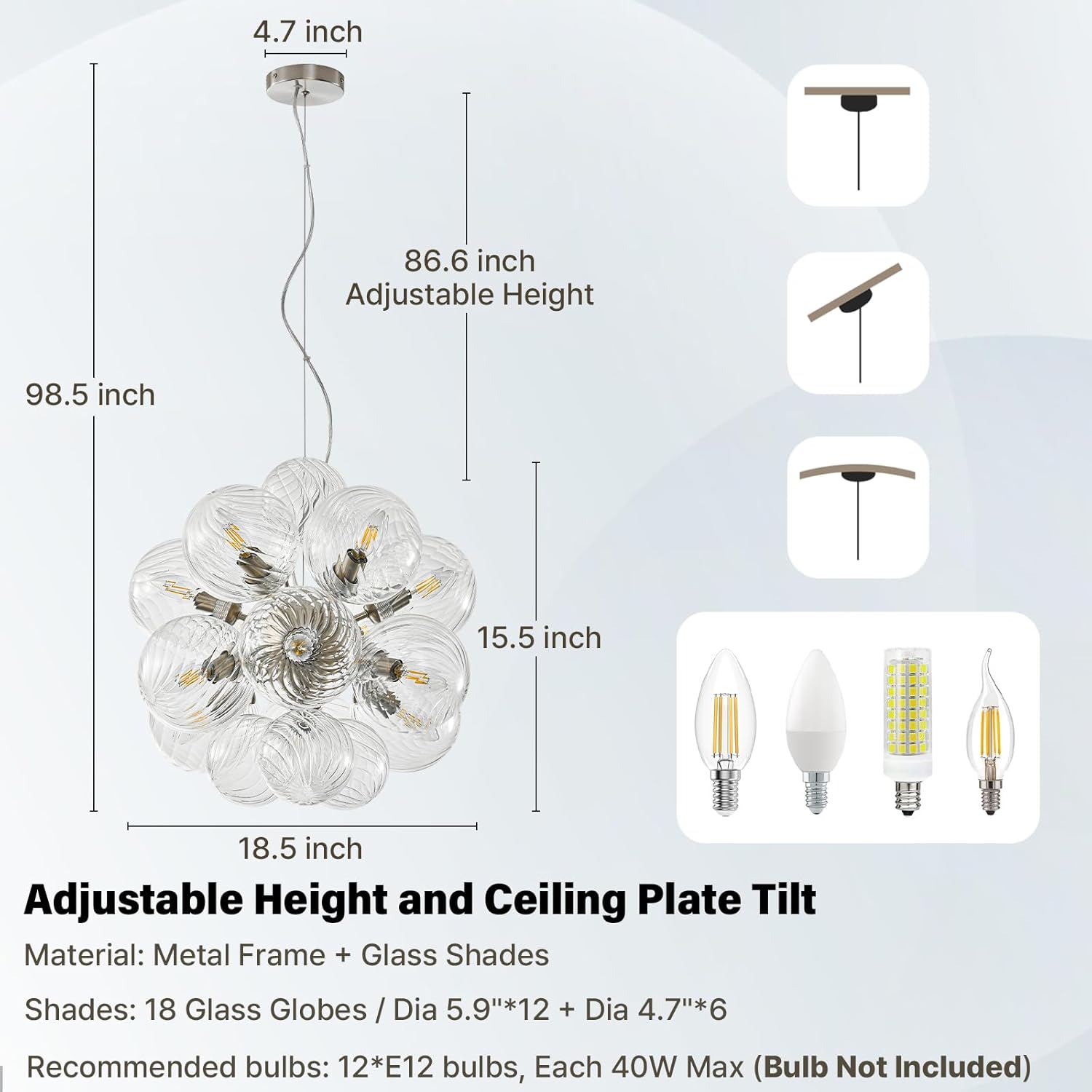

Figure 1: Chandelier dimensions and components. Note the adjustable height feature and recommended E12 bulb types.
Enstriksyon Enstalasyon
Follow these steps carefully for proper installation. It is recommended to have assistance during the installation process.
- Prepare pou enstalasyon: Turn off power at the circuit breaker. Clear the installation area.
- Assemble the Chandelier Frame: Connect the main body of the chandelier to the hanging rod and canopy, ensuring all wires are properly threaded.
- Monte canopy la: Secure the mounting bracket to your ceiling junction box using the provided hardware. Connect the chandelier's electrical wires to your household wiring (live to live, neutral to neutral, ground to ground) using wire nuts. Carefully tuck the wires into the junction box and secure the canopy to the mounting bracket.
- Ajiste Wotè: The hanging cord is adjustable up to 86 inches. Adjust the length to your desired height before securing the final connections.
- Enstale anpoul: Screw 12 E12 base bulbs (not included) into the sockets. Ensure bulbs are compatible with dimmers if you plan to use a dimming switch.
- Attach Glass Globes: Carefully attach each of the 18 swirled clear glass globes to the fixture frame using the provided hooks. There are 12 larger globes (5.9" diameter) and 6 smaller ones (4.7" diameter).
Figi 2: Detaye view of the chandelier's components, including the swirled glass shades and brushed nickel frame.
Enstriksyon Operasyon
Once installed, restore power at the circuit breaker. The chandelier is compatible with dimmable E12 bulbs (not included), allowing you to adjust the brightness to suit your preference. If using a dimmer switch, ensure both the switch and bulbs are dimmable compatible.
Figure 3: Visual comparison of the chandelier in its off and illuminated states, highlighting its aesthetic appeal.
Swen ak Antretyen
- Netwayaj: To clean the glass globes and metal frame, ensure the power is off. Use a soft, dry cloth to gently wipe away dust. For stubborn marks, a slightly damp cloth with mild soap can be used, followed by drying with a clean, soft cloth. Avoid abrasive cleaners or solvents.
- Ranplasman anpoul: Always turn off power before replacing bulbs. Allow bulbs to cool completely before handling. Replace with E12 base bulbs of the specified wattage.
- Enspeksyon: Periodically check all connections and components for any signs of wear or damage.
Depanaj
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Limyè pa limen. | No power, loose wiring, faulty bulb. | Check circuit breaker. Verify all wiring connections. Replace bulbs. |
| Bulbs flicker or buzz with dimmer. | Entèriptè gradatè oswa anpoul ki pa konpatib. | Ensure both dimmer switch and E12 bulbs are specifically rated as dimmable compatible. |
| Pyès ki manke oswa konpozan ki domaje lè yo rive. | Domaj anbake oswa erè anbalaj. | Contact customer service immediately for assistance and replacement parts. |
Espesifikasyon
| Karakteristik | Detay |
|---|---|
| Mak | ALIYIQI |
| Non modèl | Modern Bubble Chandelier |
| Koulè | Nickel Chandelier 18.5 |
| Materyèl | Vè, metal |
| Style | Modèn |
| Fòm aparèy limyè | Chandelye |
| Dimansyon pwodwi | 18.5"L x 18.5"L x 16.5"H |
| Wotè reglabl | Yes, up to 86" hanging cord |
| Itilizasyon Andedan kay la / Deyò | Andedan kay la |
| Sous pouvwa | Fil elektrik |
| Karakteristik espesyal | Adjustable Height, Dimmable, Glass Ball Bubble Chandelier, Nordic Swirled Clear Ribbed Glass Ball Chandelier |
| Materyèl lonbraj | Glass |
| Kantite sous limyè | 12 |
| Voltage | 110 Volts |
| Koulè limyè | Dimmable (with compatible bulbs) |
| Wattage | 48 wat (total) |
| Baz anpoul | E12 |
| Asanble obligatwa | Wi |
| Pwa atik | 13.6 liv |
Sipò pou Kliyan
For any inquiries regarding installation, quality concerns, or general assistance with your ALIYIQI Modern Nickel Glass Bubble Chandelier, please contact our dedicated customer service team. We are committed to providing prompt solutions.
Please refer to your purchase documentation for specific contact details or visit the ALIYIQI store on Amazon: ALIYIQI Store.
