hizpo Car Radio Stereo User Manual

1. Entwodiksyon

This manual provides instructions for the installation, operation, and maintenance of your hizpo Android 13 Car Radio Stereo. This unit is specifically designed for Subaru Legacy Outback models from 2015 to 2018, offering advanced features such as GPS navigation, wireless CarPlay, Android Auto, Bluetooth connectivity, and more. Please read this manual thoroughly before installation and use to ensure proper function and safety.

2. Enstalasyon ak Enstalasyon

Proper installation is crucial for the optimal performance of your car stereo. It is recommended that installation be performed by a qualified professional.

2.1 Kontni pake a

Anvan ou kòmanse enstalasyon an, verifye si tout konpozan yo la:

• Main Head Unit
• USB kab
• RCA Harness
• GPS antèn
• Bwat Canbus
• Pouvwa kab
• Manyèl Itilizatè (dokiman sa a)
• Sipò ak vis pou monte

2.2 Etap Pre-Enstalasyon

1. Dekonekte batri: Anvan ou kòmanse nenpòt travay elektrik, dekonekte tèminal negatif batri machin nan pou evite kous kout.
2. Retire radyo faktori a: Carefully remove the existing factory radio from your Subaru Legacy Outback (2015-2018). Refer to your vehicle's service manual for specific instructions on dash disassembly.
3. Enspekte fil elektrik: Familiarize yourself with the vehicle's wiring harness and the provided wiring harness for the new head unit.

2.3 Koneksyon fil elektrik

Connect the provided wiring harnesses to the corresponding ports on the head unit and your vehicle's wiring. Ensure all connections are secure.

• Fil elektrik: Connect the main power harness, including constant power (yellow), accessory power (red), and ground (black) wires.
• CANbus Box: Connect the CANbus box as instructed. This is essential for integrating with your vehicle's factory amplifier and steering wheel controls.
• GPS Antèn: Monte antèn GPS la nan yon kote ki klè. view of the sky, typically on the dashboard or under the windshield, and connect it to the head unit.
• Câbles USB: Route the USB cables to an accessible location, such as the glove compartment or center console.
• RCA Harness: Connect the RCA harness for audio outputs, subwoofer output, and auxiliary inputs if applicable.
• Dèyèview Antre kamera: Connect the video input for the rearview kamera.

2.4 Monte Inite Tèt la

Once all connections are made, carefully slide the new head unit into the dashboard opening. Secure it using the provided mounting brackets and screws. Reassemble the dashboard trim.

Image: Comparison of the car's dashboard before and after the installation of the hizpo car radio stereo. The top image shows the original factory radio, and the bottom image shows the new Android 13 touchscreen head unit seamlessly integrated into the dashboard.

2.5 Premye pouvwa-sou

Reconnect the vehicle's negative battery terminal. Turn on the ignition. The head unit should power on and display the Android 13 operating system. Follow any on-screen prompts for initial setup.

3. Operasyon Enstriksyon

3.1 Fonksyon debaz

• Limen/Etenyen: Press and hold the power button (usually on the left side of the unit) to turn the device on or off. A short press typically mutes/unmutes audio.
• Kontwòl Volim: Adjust volume using the on-screen controls or the steering wheel controls.
• Ekran Kay: Tap the Home icon to return to the main Android interface.
• Bouton tounen: Tap the Back icon to go to the previous screen or menu.

3.2 CarPlay / Android Auto

The unit supports wireless Apple CarPlay and Android Auto. These functions are pre-installed and activated.

1. Asire w ke Wi-Fi ak Bluetooth smartphone ou a aktive.
2. On the head unit, open the CarPlay or Android Auto application.
3. Follow the on-screen instructions to connect your smartphone via Bluetooth and then Wi-Fi for wireless projection.
4. Once connected, you can access phone functions, navigation, music, and messaging directly from the head unit's display.

Image: A visual representation of the CarPlay and Android Auto interfaces on the hizpo car radio stereo. It shows various app icons like Phone, Music, Spotify, Maps, and Podcasts, demonstrating how smartphone functions are integrated into the head unit's display.

3.3 Navigasyon GPS

The unit comes with offline map data preloaded and supports online navigation applications like Waze.

• Kat jeyografik offline: Access the preloaded navigation application to use maps without an internet connection.
• Navigasyon sou entènèt: Connect the unit to Wi-Fi (e.g., via a mobile hotspot) to use online navigation apps.
• GPS Antèn: Ensure the GPS antenna is properly installed and has a clear signal for accurate positioning.

3.4 Fonksyonalite Bluetooth

Konekte smartphone ou atravè Bluetooth pou apèl men lib ak difizyon odyo.

1. Ale nan paramèt Bluetooth yo sou inite prensipal la.
2. Pèmèt Bluetooth sou smartphone ou epi chèche aparèy ki disponib.
3. Select the head unit's Bluetooth name (e.g., "hizpo Car Stereo") from your phone's list and pair.
4. Once paired, you can make/receive calls, access your phonebook, and stream music wirelessly.

3.5 Dèyèview Antre kamera

The system supports a rearview camera (factory or aftermarket). When the vehicle is shifted into reverse gear, the display automatically switches to the camera view.

• Ekspozisyon otomatik: The screen will automatically show the rearview camera feed when reversing.
• Trajectory Adjustment: You can adjust the reversing trajectory (up/down, width, left/right) through the system settings for better parking assistance.

Imaj: Dèyè aview camera display on the hizpo car radio stereo, showing a car reversing with adjustable trajectory lines and settings for width, height, horizontal offset, and safe distance. This feature assists in safe parking and maneuvering.

3.6 Kontwòl volan (SWC)

The unit is compatible with your vehicle's factory steering wheel controls, allowing you to manage audio functions without taking your hands off the wheel.

• Fonksyonalite: Control volume, change tracks, switch radio stations, and answer/end calls directly from your steering wheel.
• Enstalasyon: The CANbus box typically handles automatic recognition. If controls do not work, navigate to the 'Steering Wheel Control' settings in the unit's menu to manually map buttons.

Image: A screenshot of the Steering Wheel Control configuration screen on the hizpo car radio stereo. It displays various functions that can be assigned to steering wheel buttons, such as volume up/down, next/previous track, mode, and mute, allowing for custom mapping.

3.7 USB Koneksyon

The unit supports USB connections for various peripherals.

• USB Flash Drive: Connect a USB flash drive (up to 2TB) to play music, videos, or view foto yo.
• DVR: Connect a compatible USB DVR camera for recording driving footage.
• DAB+: Connect an optional DAB+ receiver for digital audio broadcasting.
• TPMS: Connect an optional TPMS (Tire Pressure Monitoring System) device to monitor tire pressure.

Image: The USB connection interface on the hizpo car radio stereo, showing options to access internal storage and connected USB devices (UDISK1). It highlights categories like Audio, Images, Video, Documents, and Applications, indicating the types of files that can be accessed via USB.

3.8 TPMS Function (Optional)

If an optional TPMS module is connected, the unit can display real-time tire pressure and temperature data.

• Siveyans: View individual tire pressure and temperature readings on the screen.
• Avètisman: Receive alerts for abnormal tire conditions.
• Enstalasyon: Access the TPMS setup menu to pair sensors and configure settings.

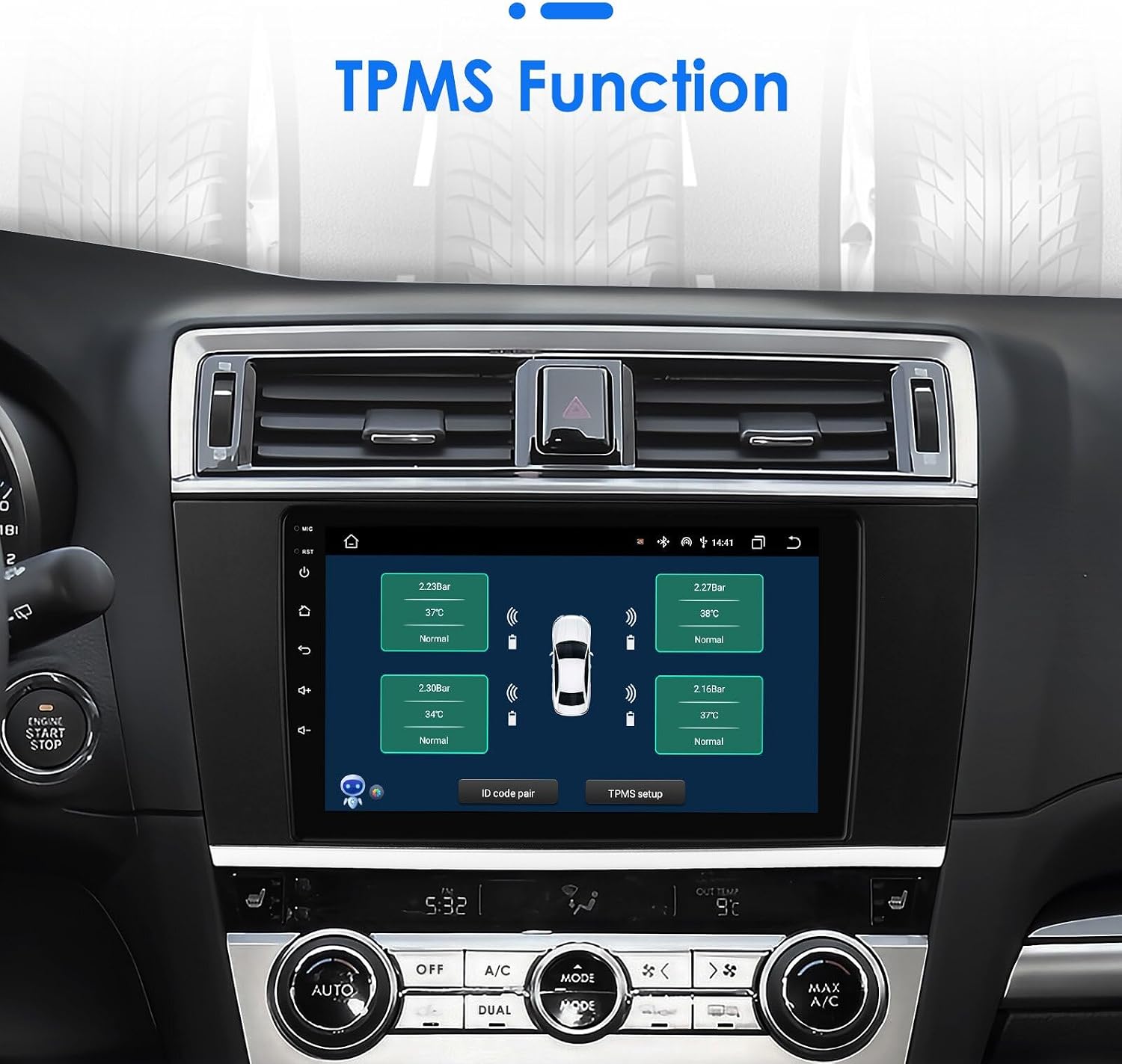

Image: The TPMS (Tire Pressure Monitoring System) display on the hizpo car radio stereo. It shows a graphical representation of a car with real-time tire pressure and temperature readings for each tire, along with options for ID code pairing and TPMS setup.

3.9 Radio (FM/RDS)

Access the built-in FM radio tuner with RDS (Radio Data System) support.

• Akor: Manually tune or auto-scan for radio stations.
• Prereglaj: Sove estasyon ou pi renmen yo pou jwenn aksè rapid.
• RDS: Display station information, song titles, and traffic announcements where available.

4. Antretyen

4.1 Netwaye inite a

• Ekran: Sèvi ak yon twal mou, ki pa gen pousyè, yon ti kras mouyeampened with water or a screen cleaner, to gently wipe the touchscreen. Avoid abrasive materials or harsh chemicals.
• Kò: Wipe the unit's body with a soft, dry cloth.

4.2 Mizajou lojisyèl

Tcheke manifakti a regilyèman website or contact support for available software updates. Updates can improve performance, add new features, or fix bugs. Follow the provided instructions carefully when performing updates.

NAN. Depanaj

If you encounter issues with your hizpo car stereo, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact hizpo customer support for further assistance.

6. Espesifikasyon

7. Garanti ak sipò

For warranty information, please refer to the documentation provided with your purchase or contact the seller directly. If you require technical support or have questions not covered in this manual, please reach out to hizpo customer service through the retailer where the product was purchased or visit the official hizpo websit la pou jwenn enfòmasyon kontak pou sipò a.
