HOOOWOOO Ergonomic Office Chair Instruction Manual

Entwodiksyon

This manual provides detailed instructions for the assembly, operation, and maintenance of your new HOOOWOOO Ergonomic Office Chair. Please read this manual thoroughly before assembly and use to ensure proper function and safety. This chair is designed to offer comfort and support for extended periods of use in an office environment.

Description: A full view of the HOOOWOOO Ergonomic Office Chair, showcasing its high back, cloudy seat, and overall design.

Enfòmasyon sou Sekirite

• Kapasite Max pwa: The chair has a maximum weight capacity of 300 LBS. Do not exceed this limit to prevent damage or injury.
• Back Tilt Adjustment: Exercise caution when adjusting the back tilt to avoid sudden movements or injury.
• Asanble sekirite: Ensure all screws and bolts are securely tightened before using the chair. Periodically check and re-tighten if necessary.
• Timoun ak ti pati: Kenbe tout ti pyès ak materyèl anbalaj lwen timoun yo pandan asanblaj la pou evite danje toufe.

Kontni pake

Anvan ou kòmanse asanblaj la, tanpri verifye ke tout konpozan yo prezan epi yo pa domaje. Si gen nenpòt pyès ki manke oswa ki domaje, kontakte sèvis kliyan imedyatman.

• Kousen Syèj (1)
• Dosye (1)
• Akoudwa (2)
• Silenn asansè gaz (1)
• Baz Zetwal (1)
• Woulo (5)
• Plak Mekanis (1)
• Pakè pyès ki nan konpitè (vis, rondelles, kle Allen)
• Enstriksyon Asanblaj (manyèl sa a)

Enstalasyon ak Asanble

Follow these steps to assemble your HOOOWOOO Ergonomic Office Chair. It is recommended to assemble the chair on a soft, clean surface to prevent damage.

1. Mete wou yo: Mete senk wou yo nan twou ki nan bout chak pye baz zetwal la. Pouse byen fèm jiskaske yo fè yon klik pou yo anfòm.
2. Enstale asansè gaz la: Mete silenn asansè gaz la nan twou santral baz zetwal ki fin reyini an.
3. Tache plak mekanis lan: Secure the mechanism plate to the underside of the seat cushion using the provided screws. Ensure the front of the mechanism (indicated by an arrow or label) faces the front of the seat.
4. Tache akoudwar: Connect the armrests to both the seat cushion and the backrest using the designated screws. Do not overtighten initially.
5. Konekte Syèj la ak Baz la: Carefully place the assembled seat and backrest onto the gas lift cylinder. The chair should now be able to swivel and adjust height.
6. Sere final la: Once the chair is fully assembled and stable, go back and securely tighten all screws.

For a visual guide, please watch the official assembly video:

Description: This video demonstrates the step-by-step assembly process of the office chair, from attaching casters to the base, installing the gas lift, securing the mechanism plate, attaching armrests, and finally placing the seat onto the base.

Enstriksyon Operasyon

Ajisteman Wotè

Adjust the chair's height to find your optimal seating position for comfort and ergonomics.

• Pou leve chèz la: While standing, pull the lever located on the right side of the seat upwards. The chair will rise. Release the lever at your desired height.
• Pou bese chèz la: While seated, pull the lever located on the right side of the seat upwards. The chair will lower. Release the lever at your desired height.

Description: An image illustrating the height adjustment mechanism. Pulling the lever up while seated lowers the chair, and pulling it up while standing raises it.

Back Tilt Adjustment

The chair features a versatile back tilt adjustment to accommodate various activities, from focused work to relaxed napping.

• Pou repoze: Pull out the lock lever (typically on the left side of the seat) and lean back. The chair will recline.
• To Lock the Tilt: Push in the lock lever at your desired recline angle to fix the backrest in position.
• Pou ajiste tansyon enklinasyon an: Rotate the tension knob located underneath the seat (usually at the front) to increase or decrease the resistance when reclining.

Description: A visual representation of the chair's recline function, demonstrating three different angles suitable for working, reading, and napping, along with the rocking lock and tension knob.

360-Degre Swivel

The chair is designed with a 360-degree swivel function, allowing for easy movement and access to different areas of your workspace without needing to stand up.

Watch this video for a demonstration of the chair's features:

Description: This video showcases the high back executive office chair, demonstrating its ergonomic design, comfortable seating, and adjustable features.

Karakteristik ergonomik

Your HOOOWOOO Ergonomic Office Chair is engineered for optimal comfort and support during long working hours.

• Konsepsyon ergonomique: Features a high back with integrated lumbar, back, and shoulder support, perfectly fitting your body's natural curve to prevent fatigue.

Description: A diagram illustrating the ergonomic support points of the chair, specifically highlighting shoulder, back, and lumbar support.

• Extra Soft Cloudy Seat: The seat is constructed with a sturdy plywood frame, upholstered with high-density foam, memory foam, and tufted cloudy cotton for hours of comfortable sitting.

Description: A cutaway view of the seat cushion, detailing its layers of suede fabric, cloudy cotton, memory foam, and high-density sponge for enhanced comfort.

• Premium Suede Fabric: The selected suede fabric is a matte finish faux leather, designed to feel warm in winter and breathable in summer, ensuring comfort year-round. It is smooth and soft to the touch.

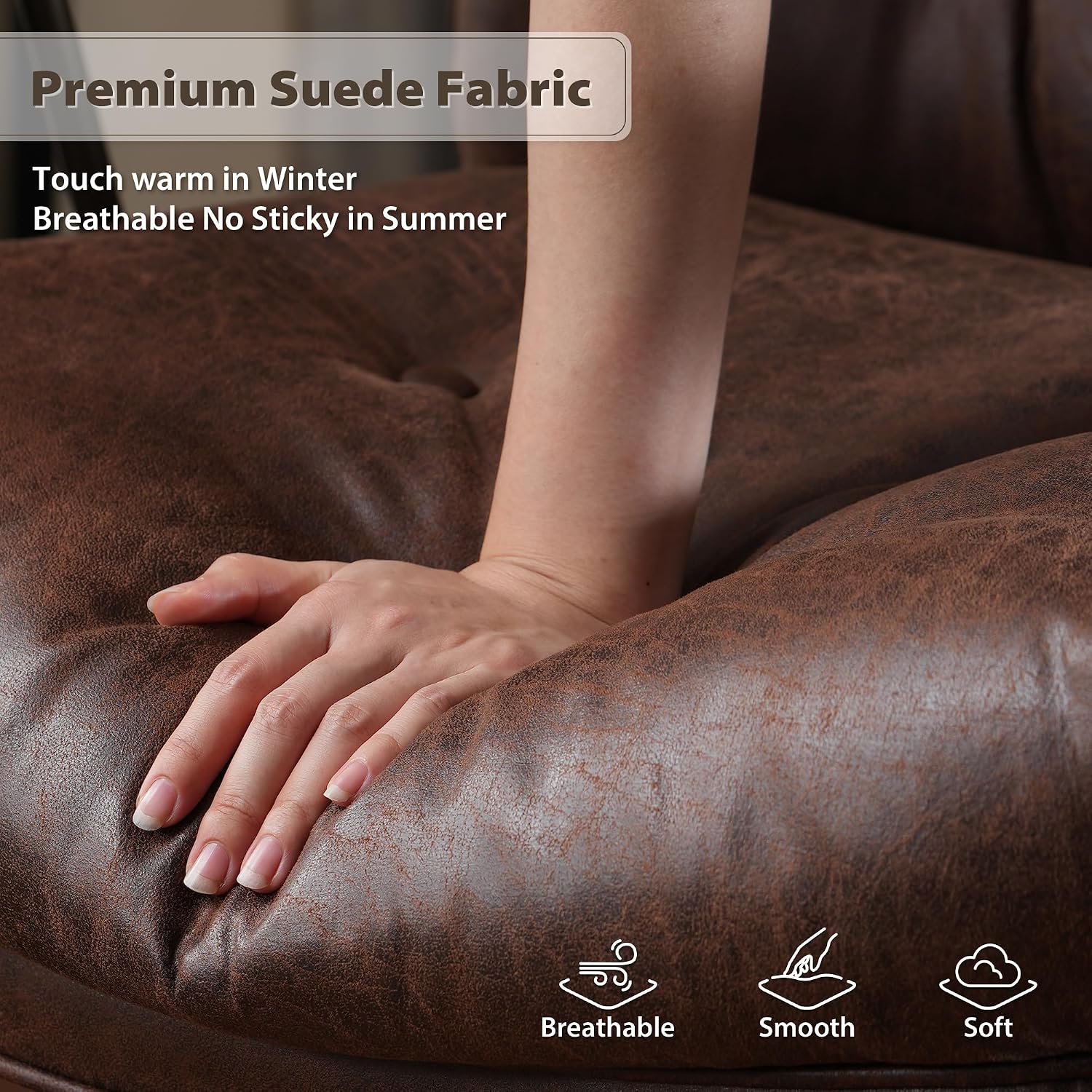

Description: A close-up image of the chair's premium suede fabric, showcasing its breathable, smooth, and soft qualities.

• Extra Wide Seat: With a 24.6-inch ultra-wide seat, the chair offers ample space for various sitting postures, making it suitable for individuals of different body types.

Description: An image highlighting the generous 24.61-inch width of the chair's seat, designed for comfortable and free posture.

Antretyen

Proper care and maintenance will extend the life and preserve the appearance of your HOOOWOOO Ergonomic Office Chair.

• Netwayaj: Spot clean the suede fabric as needed. Use a soft, damp cloth with a mild, pH-neutral soap solution for spills. Gently blot the affected area and avoid rubbing vigorously. Do not use harsh chemicals, abrasive cleaners, or excessive water.
• Enspeksyon Materyèl: Periodically (e.g., every 3-6 months) check all screws and bolts to ensure they are tight. Re-tighten any loose fasteners to maintain stability and safety.
• Swen Roulèt: Keep the casters free of debris such as hair, dust, and lint to ensure smooth rolling. Clean them regularly with a soft brush or cloth.
• Evite limyè solèy la dirèk: Prolonged exposure to direct sunlight can cause the fabric to fade or degrade. Position your chair away from direct sunlight or use window coverings.

Depanaj

Si ou rankontre nenpòt pwoblèm ak chèz ou a, gade konsèy depanaj komen sa yo:

• Chèz la pa ajiste wotè a: Ensure the gas lift lever is fully engaged or disengaged as required. If the issue persists, the gas lift cylinder may be faulty and require replacement.
• Chèz k ap kriye: Check and tighten all assembly screws. A small amount of silicone-based lubricant can be applied to moving metal parts (e.g., the mechanism plate, gas lift connection) if the squeaking continues.
• Difikilte pou woule: Clean any debris (hair, dust) from the casters. Ensure the chair is on an appropriate surface; hard floors are recommended for optimal rolling.
• Dokiman an pa ka panche/fèmen: Verify that the tilt lock lever is correctly positioned. If the tension is too high, loosen the tilt tension knob.

Espesifikasyon

Detailed specifications for your HOOOWOOO Ergonomic Office Chair.

Description: A detailed diagram illustrating the various dimensions of the HOOOWOOO Ergonomic Office Chair, including height, width, and depth measurements.

Garanti ak sipò

For warranty information or technical support regarding your HOOOWOOO Ergonomic Office Chair, please contact HOOOWOOO customer service through the retailer where the product was purchased. It is important to retain your purchase receipt as proof of purchase for any warranty claims.
