TODIMART S9 Scooter elektrik Manyèl Itilizatè

Entwodiksyon

Imaj: The TODIMART S9 Electric Scooter, a professional-grade adult electric scooter.

This manual provides essential information for the safe operation, maintenance, and troubleshooting of your TODIMART S9 Electric Scooter. Please read it thoroughly before your first ride to ensure optimal performance and safety.

The TODIMART S9 Electric Scooter is designed for adults, featuring a powerful 1000W brushless motor and a 48V 20.8Ah lithium battery, offering a range of 55-65 km. It is equipped with 10-inch tubeless all-terrain tires and an intelligent LCD display for real-time ride information.

Imaj: Illustration of the powerful 1000W brushless motor, providing rapid acceleration and efficient climbing capabilities.

Imaj: The TODIMART S9 features a dual suspension system, front and rear, for a smoother and more comfortable ride over varied terrain.

Ki sa ki nan bwat la

Lè w ap ouvri pake a, verifye si tout bagay sa yo ladan l:

• TODIMART S9 Scooter elektrik
• Charger
• Twous zouti enstalasyon
• Manyèl Itilizatè (dokiman sa a)

Si nenpòt atik ki manke oswa ki domaje, tanpri kontakte sipò kliyan imedyatman.

Enstalasyon ak Asanble

Your TODIMART S9 Electric Scooter comes partially assembled. Follow these steps to complete the setup:

1. Unboxing: Carefully remove the scooter and all accessories from the packaging. Retain the packaging for future storage or service needs.
2. Depliye Scooter a: Lift the handlebar stem until it locks into the upright position. Secure the locking mechanism.
3. Enstalasyon gidon: Attach the handlebars to the stem. Ensure they are securely fastened using the provided screws and tools. Refer to the detailed video for visual guidance.
4. Rear Fender Installation: Attach the rear fender to the scooter. Ensure all screws are tightened.
5. Inisyal chaj: Before your first ride, fully charge the scooter's battery. Connect the charger to the charging port and then to a power outlet. The charging indicator will show the charging status. A full charge typically takes 8 to 10 hours.

Enstriksyon Operasyon

Power On/Off

To power on the scooter, press and hold the power button on the display for a few seconds. To power off, repeat the action.

Entelijan LCD Display

The intelligent LCD display provides real-time information about your ride, including speed, speed mode, battery life, and lighting status. Use the controls near the display to navigate through different settings and modes.

Imaj: Close-up of the TODIMART S9's intelligent LCD display, showing speed, battery level, and mode indicators.

Imaj: Digital LCD screen mounted on the handlebar, displaying speed and riding statistics. Includes controls for cruise control, turn signals, and power.

Mod vitès

The scooter features multiple speed modes. You can switch between these modes using the controls on the handlebar to adjust your speed according to riding conditions and local regulations.

Sistèm frenaj

The TODIMART S9 is equipped with a dual braking system (front and rear). Apply both brakes gently and evenly to slow down or stop. Avoid sudden braking, especially at high speeds, to prevent loss of control.

Lighting and Indicators

For enhanced safety, especially during night rides, the scooter includes LED headlights, taillights, and left/right turn indicators. The brake light automatically illuminates when braking. Ensure all lights are functional before riding.

Folding and Portability

The scooter is designed for easy folding and portability. To fold, disengage the locking mechanism on the handlebar stem and fold it down towards the deck. Ensure it is securely latched for transport. The folded dimensions are approximately 116 x 62 x 54 cm, and it weighs 26.5 kg.

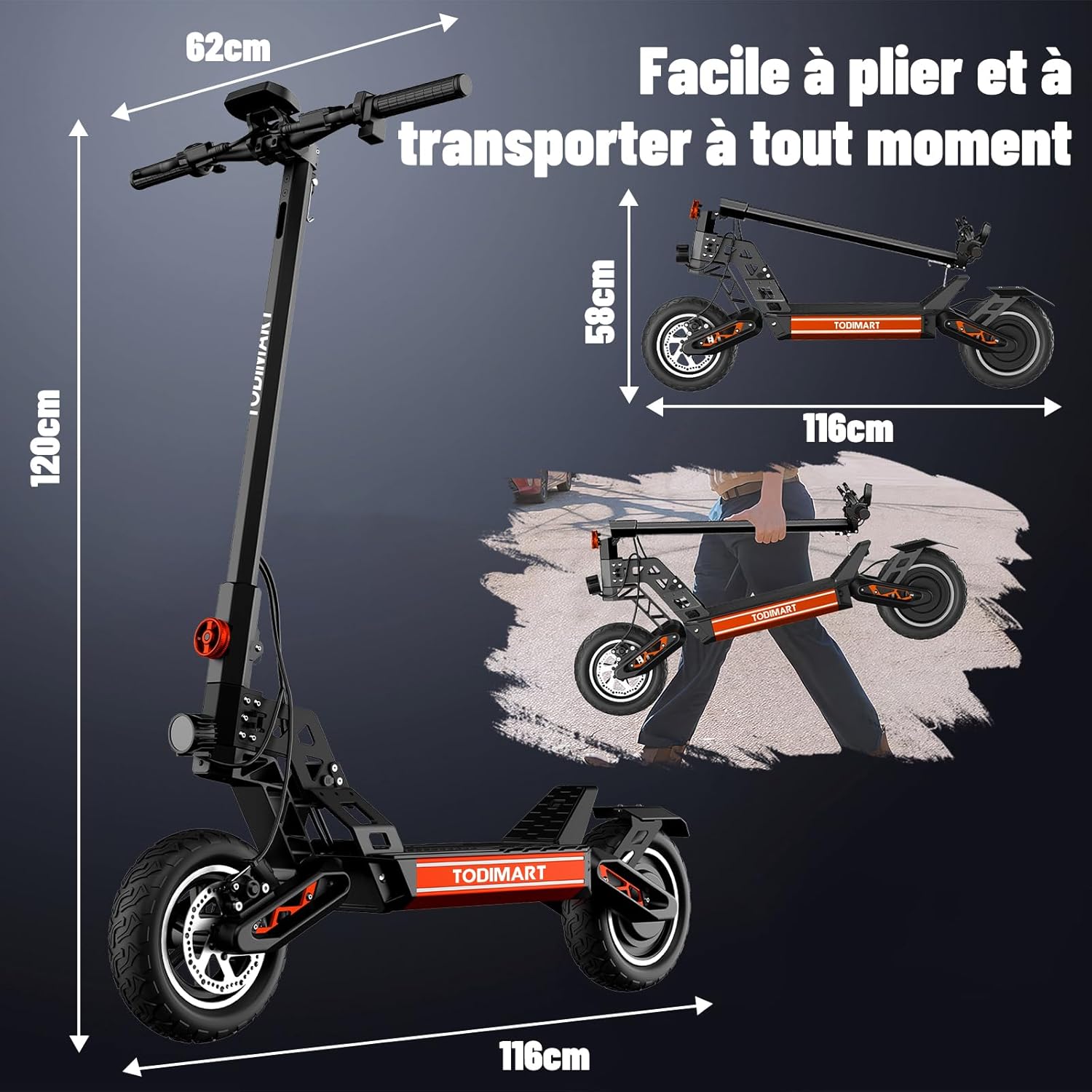

Imaj: Illustration of the TODIMART S9 electric scooter's folding mechanism, showing its compact size when folded for easy transport.

Antretyen

Swen batri

• Chaje batri a konplètman anvan premye itilize.
• Avoid completely draining the battery. Recharge it regularly, even if not in use for extended periods.
• Sere scooter a nan yon kote ki fre epi sèk, lwen limyè solèy dirèk ak tanperati ekstrèm.
• Sèvi sèlman ak chajè orijinal ki vini ak scooter a.

Imaj: Close-up of the TODIMART S9's 48V 20.8Ah lithium battery, highlighting its intelligent design for extended range.

Swen kawotchou

The scooter is equipped with 10-inch tubeless all-terrain tires. Regularly check tire pressure and inspect for any signs of wear or damage. Proper tire pressure ensures optimal performance, range, and safety.

Imaj: Detaye view of the TODIMART S9's 10-inch tubeless all-terrain tire, designed for durability and grip on various surfaces.

Netwayaj jeneral

Netwaye scooter a regilyèman avèk piblisite.amp cloth. Avoid using high-pressure water jets or harsh chemicals, as these can damage electronic components.

Enspeksyon fren

Periodically inspect the brake levers, cables, and discs for wear or damage. Ensure the brakes respond effectively. If you notice any issues, have them serviced by a qualified technician.

Depanaj

This section addresses common issues you might encounter with your TODIMART S9 Electric Scooter. For problems not listed here, please contact customer support.

• Scooter a pa limen: Asire w batri a chaje. Tcheke tout koneksyon yo.
• Ranje redwi: This can be due to low tire pressure, riding uphill frequently, heavy loads, or cold weather. Ensure tires are properly inflated and consider riding in a lower speed mode.
• Bwi etranj: Inspect wheels, brakes, and suspension for loose parts or obstructions. If noises persist, seek professional inspection.
• Fren yo pa reponn: Check brake cable tension and disc condition. Do not ride the scooter if brakes are not fully functional.

Espesifikasyon

Garanti ak sipò

The TODIMART S9 Electric Scooter comes with a 1-ane garanti limite. Spare parts availability is guaranteed for 5 ane.

For warranty claims, technical support, or inquiries about spare parts, please contact TODIMART customer service through your retailer or the official TODIMART websit.
