CSCPEXCZ SU600 VFD Instruction Manual

1. Entwodiksyon

This manual provides essential information for the safe and efficient operation of the CSCPEXCZ SU600 Variable Frequency Drive (VFD). The SU600 VFD is designed to convert single-phase 220V input power to three-phase 380V output, suitable for controlling the speed of three-phase motors ranging from 0.75KW to 5.5KW. Please read this manual thoroughly before installation, operation, or maintenance.

2. Enfòmasyon sou Sekirite

AVÈTISMAN: Improper installation or operation can lead to serious injury or death. Only qualified personnel should install, operate, and maintain this equipment.

• Toujou dekonekte kouran an anvan ou fè nenpòt fil elektrik oswa antretyen.
• Asire w ke VFD a ak motè a byen konekte atè.
• Pa touche konpozan elektrik yo lè gen kouran.
• Verifye volim antre ak sòti atage ratings match your application.
• Pwoteje VFD a kont imidite, pousyè, ak gaz koroziv.
• Install the VFD in a well-ventilated area to prevent overheating.

3. Pwodwi souview

The SU600 VFD is a robust frequency converter designed for industrial and commercial applications requiring precise motor speed control. It features a durable design with main board material characteristics that are waterproof, moisture-proof, and mildew-proof, ensuring reliability in various environments.

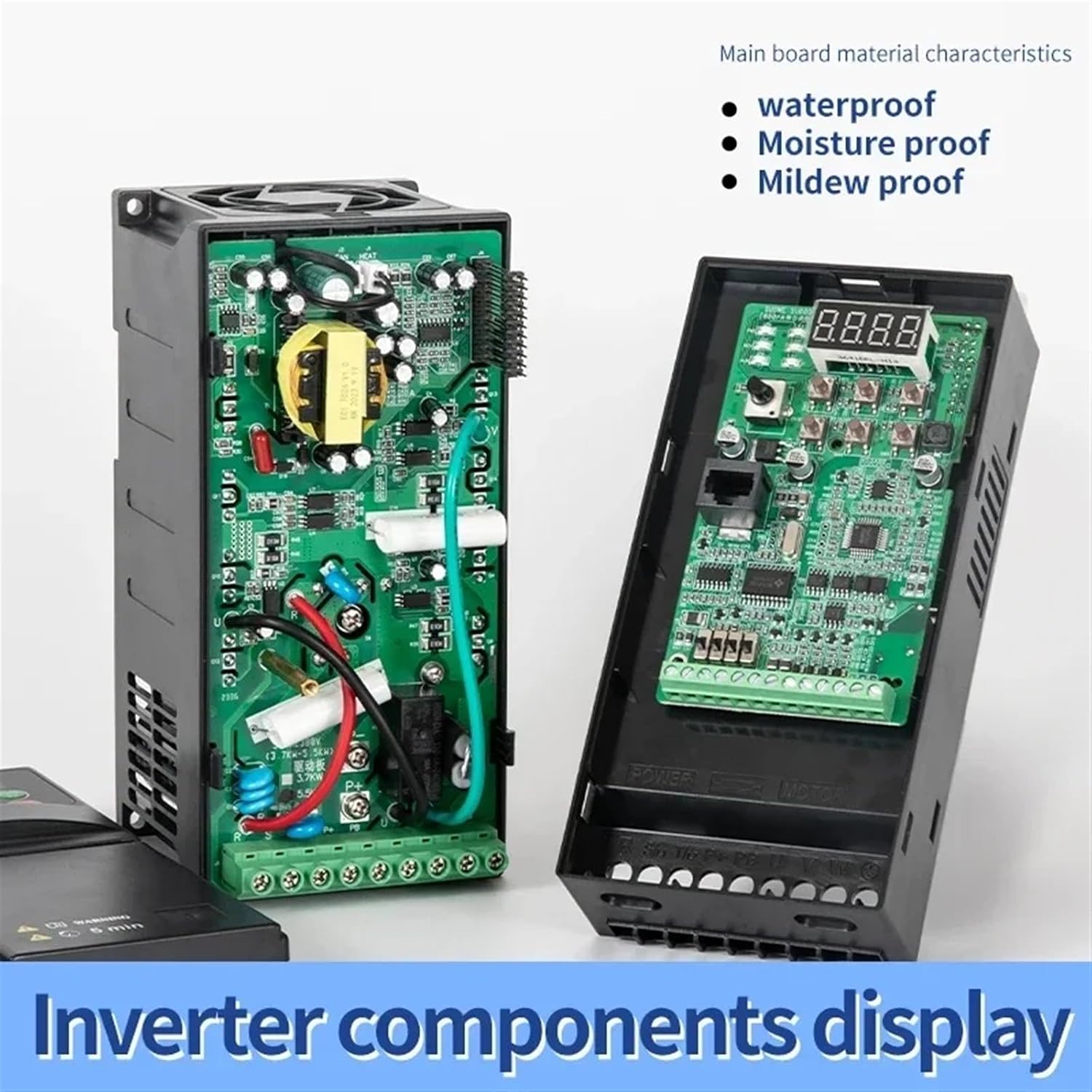

Figure 3.1: Inverter Components Display. This image illustrates the internal layout of the SU600 VFD, highlighting the main circuit board and various electronic components. The main board is designed to be waterproof, moisture-proof, and mildew-proof for enhanced durability.

4. Espesifikasyon

The following table details the key specifications for the SU600-5R5G1 VFD model:

Figure 4.1: SU600-5R5G1 Product Parameters. This image provides a visual summary of the VFD's specifications, including its model number, compatible motor power, electrical ratings, and physical dimensions.

5. Enstalasyon ak fil elektrik

Proper wiring is crucial for the safe and correct operation of the VFD. Refer to the wiring diagram below and ensure all connections are secure and meet local electrical codes.

Figure 5.1: Wiring Diagram. This diagram illustrates the connection points for the SU600 VFD. It shows the single-phase 220V input power connection (R, S/L1/L2), the three-phase 380V output power connection to the motor (U, V, W), the ground wire, and optional connections for a brake resistor (P+, PB).

Etap fil elektrik:

1. Koneksyon pouvwa Antre: Connect the single-phase 220V AC power supply to terminals R and S/L1/L2. Ensure the power source is properly fused and switched.
2. Koneksyon motè: Connect the three-phase motor to the output terminals U, V, and W. Verify the motor's voltage and current ratings are compatible with the VFD's output.
3. Atè: Connect the ground wire from both the power supply and the motor to the VFD's ground terminal. Proper grounding is essential for safety.
4. Brake Resistor (Optional): If a brake resistor is required for your application (e.g., for CNC machine tools), connect it to terminals P+ and PB.
5. External Operation Panel (Optional): If using an external operation panel, connect it to the external network port as shown in the operating interface diagram.

6. Operasyon Enstriksyon

The SU600 VFD features an intuitive control panel for easy operation and parameter adjustment.

Figure 6.1: Operation and Display Interface. This image details the VFD's control panel, showing the digital display, programming key (PRG), confirm key (ENT), run key (RUN), stop key (STOP), incremental key (up arrow), and decrement key (down arrow). It also indicates the external network port and an optional external operation panel.

Fonksyon panèl kontwòl:

• PRG (Programming Key): Enters or exits parameter programming mode.
• ENT (Confirm Key): Konfime paramèt yo oswa antre nan sou-meni yo.
• RUN (Run Key): Kòmanse motè a.
• STOP (Stop Key): Sispann motè a.
• Up/Down Arrows (Incremental/Decrement Keys): Adjusts frequency, navigates menus, or changes parameter values.
• Ekspozisyon: Shows current frequency, current, voltage, and fault indicators (FWD, REV, ALM).

Operasyon debaz:

1. Pouvwa sou: After ensuring all wiring is correct and secure, apply power to the VFD. The display will light up.
2. Mete frekans: Use the Up/Down arrow keys to set the desired output frequency.
3. Kòmanse motè: Peze a KOURI button to start the motor. The display will show the operating frequency and other relevant parameters.
4. Sispann motè a: Peze a SISPANN bouton pou kanpe motè a.
5. Ajisteman paramèt: To change advanced settings, press the PRG key to enter programming mode. Use the Up/Down keys to navigate parameters and ENT to confirm changes. Refer to the full product manual for detailed parameter descriptions.

7. Antretyen

Regular maintenance ensures the longevity and reliable operation of your SU600 VFD.

• Netwayaj: Netwaye deyò VFD a ak alet refwadisman yo detanzantan pou anpeche pousyè akimilasyon, sa ki ka anpeche chalè disparèt. Sèvi ak yon twal mou epi sèk. Pa sèvi ak pwodui netwayaj likid.
• Enspeksyon: Regularly inspect all wiring connections for tightness and signs of wear or damage. Check for any unusual noises or odors during operation.
• Anviwònman: Ensure the operating environment remains within the specified temperature and humidity ranges. Keep the VFD away from direct sunlight, excessive vibration, and corrosive substances.
• Verifikasyon Vantilatè: Verify that the cooling fan operates freely and is not obstructed.

NAN. Depanaj

Seksyon sa a bay konsèy pou pwoblèm komen. Pou pwoblèm konplèks, kontakte sipò teknik.

9. Garanti ak sipò

For warranty information, technical assistance, or service, please contact your vendor or the manufacturer directly. Ensure you have your product model number (SU600-5R5G1) and purchase details available when seeking support.

Manufacturer: CSCPEXCZ
