AIRPLUS 20-30 Pints Dehumidifier Instruction Manual

1. Entwodiksyon

This manual provides detailed instructions for the safe and efficient operation of your AIRPLUS 20-30 Pints Dehumidifier, Model AP08-2005EE. This appliance is designed to reduce humidity levels in residential spaces such as homes, basements, bedrooms, and RVs, contributing to a more comfortable and healthier environment. Please read this manual thoroughly before initial use and retain it for future reference.

Image 1.1: The AIRPLUS Dehumidifier, Model AP08-2005EE, shown in a typical room environment. This compact unit is designed for effective moisture removal.

2. Enstriksyon Sekirite

Pou evite blesi pou itilizatè a oswa lòt moun epi domaj materyèl, ou dwe swiv enstriksyon sa yo. Si ou pa itilize aparèy la kòrèkteman, sa ka lakòz domaj oswa malèz.

• Always plug the unit into a grounded electrical outlet. Do not remove the grounding prong.
• Do not operate the unit with a damaged power cord or plug. If the supply cord is damaged, it must be replaced by the manufacturer or a qualified service agent.
• Do not place the dehumidifier near heat-generating appliances or in direct sunlight.
• Ensure the unit is placed on a stable, level surface to prevent water spillage.
• Do not block the air inlet or outlet. Maintain at least 8 inches (20 cm) of clearance around the unit for proper airflow.
• Debranche aparèy la anvan ou netwaye li, deplase li, oswa fè nenpòt antretyen.
• Do not use the appliance in areas where flammable gases or combustible materials are present.
• Aparèy sa a pa fèt pou itilize pa moun (ki gen ladan timoun) ki gen kapasite fizik, sansoryèl oswa mantal redwi, oswa ki pa gen eksperyans ak konesans, sof si yo te ba yo sipèvizyon oswa enstriksyon konsènan itilizasyon aparèy la pa yon moun ki responsab sekirite yo.
• The child lock feature is designed to prevent accidental touching by children.

3. Konpozan pwodwi ak dimansyon

Familiarize yourself with the main parts of your dehumidifier.

Image 3.1: The AIRPLUS Dehumidifier showing its approximate dimensions: 12.98 inches (33.0 cm) height, 13.38 inches (34.0 cm) depth, and 7.48 inches (19.0 cm) width.

The unit features a compact design, making it suitable for various room sizes. Key components include the air inlet, air outlet, control panel, and water tank.

4. Enstalasyon

1. Debake: Retire dezumidifikatè a nan anbalaj li avèk prekosyon. Kenbe materyèl anbalaj yo pou depo oswa transpò pita.
2. Plasman: Place the dehumidifier on a firm, level surface in the area where dehumidification is desired. Ensure there is at least 8 inches (20 cm) of space around the unit for proper air circulation. Avoid placing it against walls or furniture that could obstruct airflow.
3. Koneksyon pouvwa: Branche kòd kouran an nan yon priz elektrik ki gen tè. Asire w vòltaj latage koresponn ak espesifikasyon inite a.
4. Operasyon inisyal: Kite aparèy la kanpe dwat pou omwen 2 èdtan anvan ou branche l epi limen l, sitou si yo te transpòte l sou kote. Sa pèmèt frijidè a depoze.

5. Operasyon Enstriksyon

Dezimidifikatè a gen yon panèl kontwòl taktil pou operasyon fasil.

Image 5.1: Close-up of the digital control panel, illustrating the touch-sensitive buttons for various functions including Mode, Timer, Humidity, Child Lock, Anion, and Power On/Off.

5.1 Fonksyon Panel Kontwòl

• Bouton ON/OFF: Peze pou limen oswa etenn inite a.
• Bouton MODE: Press to cycle through the operating modes:
  • Mòd estanda: Normal dehumidification operation.
  • Rainy Mode: Optimized for high humidity conditions.
  • Mòd siye: Designed for drying clothes.
  • Mòd dòmi: Operates at a lower fan speed and dims the display for quiet operation.
• Bouton TIMER: Set a 24-hour timer for automatic power on or off.
• HUMIDIFY Button: Adjust the target humidity level. The unit will operate until the set humidity is reached, then cycle on/off to maintain it.
• Bouton BLOKAJ TIMOUN: Press and hold to activate or deactivate the child lock, preventing accidental changes to settings.
• ANION Button: Activates the anion function for air purification.

5.2 Sleep Mode Operation

When Sleep Mode is activated, the dehumidifier operates at a reduced noise level (30-40 dB) and the display light dims, making it suitable for use in bedrooms or other quiet environments.

Image 5.2: The dehumidifier operating in Sleep Mode, indicating low noise levels suitable for nighttime use.

6. Opsyon Drenaj

Your dehumidifier offers two methods for water removal: manual drainage via the water tank or continuous drainage using a hose.

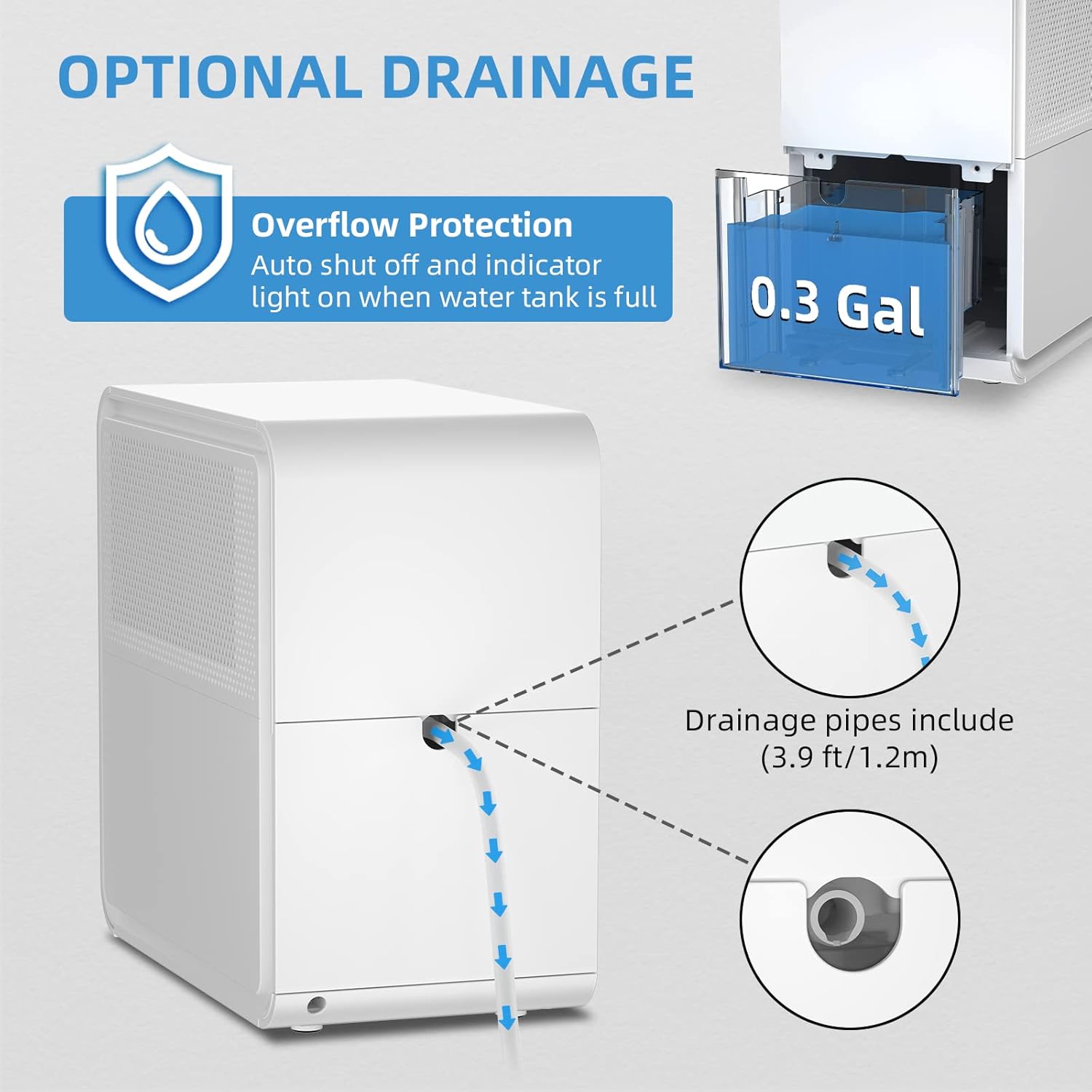

Image 6.1: Diagram illustrating both the internal water tank and the continuous drainage port with an attached hose.

6.1 Water Tank Drainage (Manual)

• The dehumidifier has a 0.3-gallon (approximately 1.1 liters) water tank.
• When the water tank is full, the unit will automatically shut off, and an indicator light will illuminate. The unit will also beep to alert you.
• Rale tank dlo a avèk prekosyon soti nan devan aparèy la.
• Vide dlo ki te kolekte a.
• Glise tank dlo vid la tounen nan plas li jiskaske li fè yon klik byen fèm. Aparèy la ap rekòmanse fonksyone.

6.2 Continuous Drainage (Hose)

• For continuous operation without needing to empty the water tank, use the included 3.9 ft (1.2 m) drainage hose.
• Locate the continuous drainage port on the back of the unit.
• Connect one end of the drainage hose to this port. Ensure a secure connection to prevent leaks.
• Direct the other end of the hose to a suitable drain, such as a floor drain, sink, or large bucket. Ensure the hose is sloped downwards to allow gravity to drain the water effectively.
• Nòt: If the hose is not properly sloped, water may accumulate in the tank and trigger the full tank shut-off.

7. Antretyen

Antretyen regilye asire pèfòmans optimal epi pwolonje dire lavi dezumidifikatè ou a.

7.1 Netwaye tank dlo a

• Vide tank dlo a jan sa dekri nan Seksyon 6.1.
• Clean the tank with warm water and a mild detergent. Rinse thoroughly to remove any residue.
• Seche tank la nèt anvan ou mete l tounen nan aparèy la.
• Netwaye tank dlo a regilyèman pou anpeche mwazi ak kanni grandi.

7.2 Netwaye filtè lè a

• The air filter helps remove dust and particles from the air. A dirty filter can reduce efficiency.
• Locate the air filter (typically behind the air inlet grille).
• Remove the filter and clean it with a vacuum cleaner or wash it with warm, soapy water.
• Asire w ke filtè a fin sèk anvan ou re-enstale li.
• Netwaye filtè a chak de semèn oswa pi souvan selon itilizasyon an ak kalite lè a.

7.3 Fonksyon dekonjle

The unit is equipped with an automatic defrost function. If the room temperature drops below 45°F (7°C), the unit will intelligently detect frost buildup on the evaporator coils and automatically enter defrost mode to melt the ice. During defrosting, the dehumidification function will temporarily pause.

Image 7.1: Internal diagram highlighting the compressor, defrost mechanism, and protection features. The unit intelligently detects low temperatures to activate defrost mode.

NAN. Depanaj

Anvan ou kontakte sèvis kliyan, tanpri gade gid depanaj sa a pou pwoblèm komen yo.

9. Espesifikasyon

Nòt: The dehumidification capacity is often listed using both current (2019 DOE) and older (2012 DOE) standards. This unit is rated for 30 Pints per Day (2019 DOE) which is equivalent to 20 Pints per Day (2012 DOE).

10. Garanti ak sipò

This AIRPLUS dehumidifier is covered by a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions, including warranty duration and coverage details.

For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact AIRPLUS customer support. Contact information can typically be found on the product packaging, the official AIRPLUS websit la, oswa dokiman acha ou a.

When contacting support, please have your model number (AP08-2005EE) and purchase date readily available.
