NIRVANA Heat Pump NE20 User Manual

Entwodiksyon

The NIRVANA Heat Pump NE20 is a compact and energy-efficient solution designed to heat your above-ground swimming pool, extending your swimming season cost-effectively. This unit is engineered for ease of use, featuring a simple plug-and-play installation that connects to any standard outlet, drawing up to 8 AMPS. It is AHRI Rated and certified to ensure energy-efficient pool heating.

Karakteristik kle yo enkli:

• AHRI Certified: Independently tested and verified for energy-efficient performance.
• Efikas ak serye: Operates on 15 Amp / 120 Volt, environmentally friendly with R410A refrigerant, and a quiet 48 dB at 10 meters.
• Konsepsyon kontra enfòmèl ant: Measures 19.9" x 14.2" x 21.4" and weighs 64 pounds.
• Operasyon fasil: Plug and play design for pools up to 15 feet round and 5,000 Gallons.
• Koneksyon dlo: Includes 1 ¼" - 1 ½" BARB fittings and 1 ½" quick connect fittings.

Enstalasyon ak Enstalasyon

The NE20 Heat Pump is designed for straightforward installation. Ensure the unit is placed on a stable, level surface with adequate clearance for air circulation, as indicated by the 'DO NOT BLOCK THE AIR VENT!' warning on the fan. The unit requires a 15 Amp / 120 Volt electrical connection and is plug-and-play, meaning no complex electrical wiring is typically needed beyond plugging it into a suitable outlet.

For water connections, utilize the provided 1 ¼" - 1 ½" BARB fittings and 1 ½" quick connect fittings to connect the heat pump to your pool's filtration system. Ensure all connections are secure and leak-free before operating the unit.

Devan view of the NIRVANA NE20 Heat Pump, showing the main fan and branding.

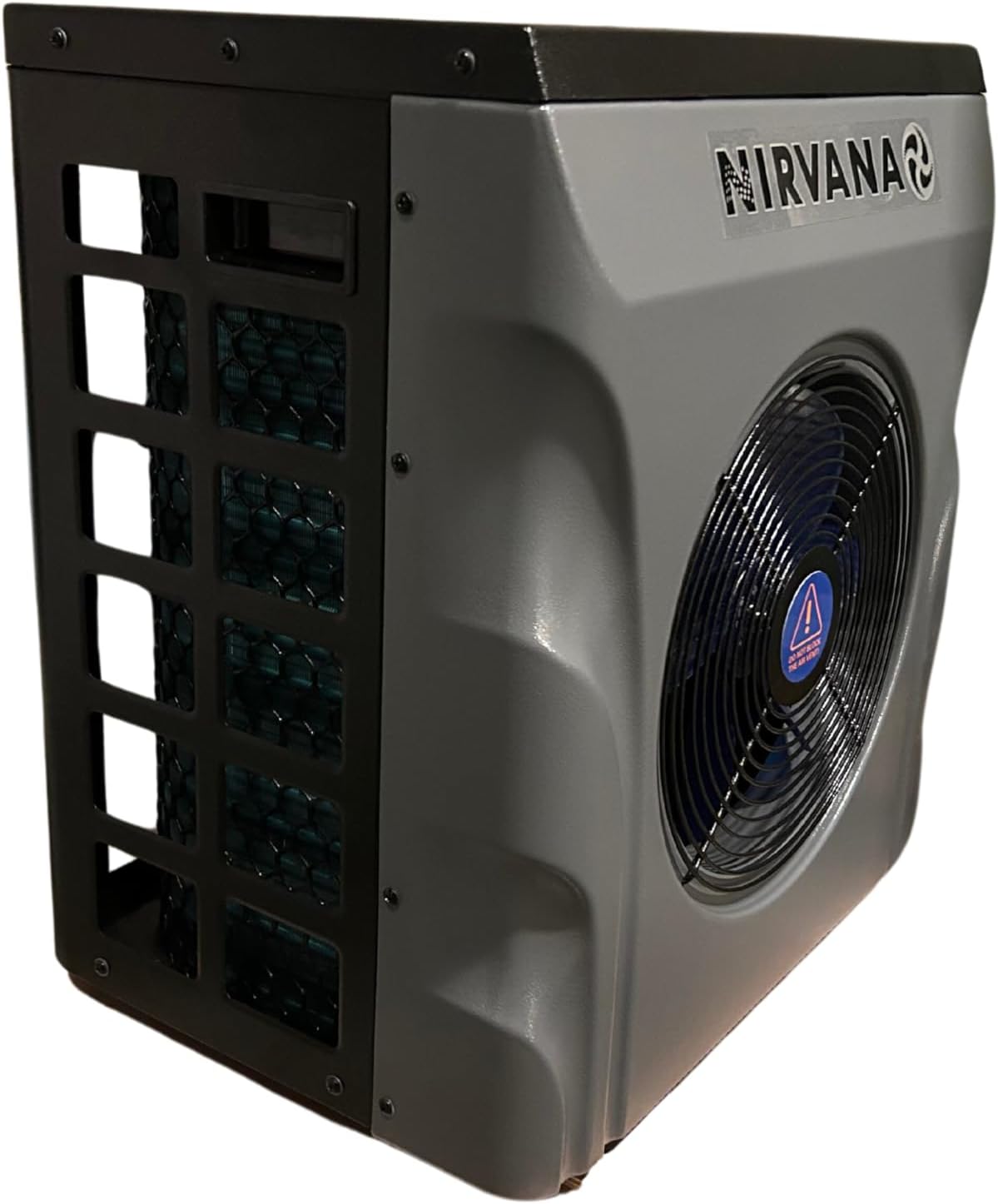

Side view of the NIRVANA NE20 Heat Pump, illustrating the air intake fan and compact design.

Dèyè view of the NIRVANA NE20 Heat Pump, highlighting the water inlet and outlet connections.

Enstriksyon Operasyon

Once installed and connected, operating the NIRVANA NE20 Heat Pump is simple. The unit features a precise digital control panel for setting and maintaining your desired pool temperature. It is designed to be remarkably quiet during operation, ensuring a peaceful pool environment.

To begin heating, ensure your pool pump is running to allow water circulation through the heat pump. Use the digital controls to set your target temperature. The heat pump will automatically activate and deactivate to maintain the set temperature, providing consistent warmth for your pool.

Promotional image highlighting the plug-and-play nature and ease of use of the NE20 Heat Pump.

Icon representing precise digital control for optimal pool temperature management.

Icon indicating the remarkably quiet operation of the heat pump, enhancing your pool experience.

Antretyen

Regular maintenance ensures the longevity and efficient operation of your NIRVANA Heat Pump. Keep the area around the unit clear of debris, leaves, and other obstructions to ensure proper airflow to the fan and coils. Periodically inspect the coils for dirt buildup and gently clean them with a soft brush or hose if necessary. Ensure all water connections remain tight and free of leaks.

During colder months or extended periods of non-use, it is recommended to properly winterize the heat pump according to standard pool equipment procedures to prevent damage from freezing.

Depanaj

If you encounter issues with your NIRVANA Heat Pump, consider the following common troubleshooting steps:

• Aparèy la pa limen: Check the power connection and ensure the circuit breaker has not tripped. Verify the pool pump is running, as the heat pump requires water flow to operate.
• Insufficient heating: Ensure the set temperature is higher than the current pool temperature. Check for proper water flow and ensure the coils are clean and free of obstructions.
• Bwi etranj: Inspect the fan for any obstructions. If unusual noises persist, contact customer support.
• Water leaking from unit: A small amount of condensation is normal during operation. However, if there is significant water leakage, check all water connections for tightness. If the leak persists, discontinue use and contact customer support.

For more complex issues, please refer to the detailed troubleshooting guide in the full product manual or contact NIRVANA customer support.

Espesifikasyon

The NIRVANA NE20 Heat Pump is built with high-quality components and designed for optimal performance. Below are the detailed specifications:

Detailed specifications table for the NIRVANA NE20 Heat Pump, including performance ratings.

The AHRI Certified logo, signifying that the product has been independently tested and verified for performance and energy efficiency.

Garanti ak sipò

NIRVANA Heat Pumps are manufactured with over 25 years of expertise, ensuring high-quality and reliable products. For specific warranty details, please refer to the warranty card included with your product or visit the official NIRVANA Heat Pump website. Warranty terms typically cover manufacturing defects and performance as per the product specifications.

For any questions, technical assistance, or support, please contact NIRVANA customer service. Our dedicated support team is available to assist you with installation, operation, and troubleshooting queries.

Customer Support is available for assistance with your product.
