Stacool Spark Plug Tester with Indicator Lights Instruction Manual

1. Entwodiksyon

The Stacool Spark Plug Tester with Indicator Lights is a diagnostic tool designed to quickly and accurately identify issues within an engine's ignition system. It helps determine if spark plug connections, contact points, and cables are functioning correctly, enabling timely replacement of faulty components to prevent erratic engine operation. This tool is suitable for a wide range of applications, including cars, trucks, motorcycles, lawn mowers, trimmers, and other small engines.

Ki sa ki nan bwat la:

• 1x Spark Plug Tester

2. Pwodwi souview

The Stacool Spark Plug Tester features a high-brightness neon bulb that provides clear visual feedback on spark presence. Its durable construction ensures reliability and longevity in various working conditions.

Karakteristik kle:

• Indicator Light Design: Equipped with a high-brightness neon bulb for accurate reaction to spark plug problems, allowing quick identification of issues in spark plug connections, contact points, and cables.
• Konstriksyon dirab ak ki estab: The shell is made of high-quality ABS material for hardness and resistance to breakage. The inner part features pure copper wire, designed to withstand high-voltage current, and the metal head ensures long-term stability and reliability.
• Aplikasyon lajè: Suitable for cars, trucks, motorcycles, lawn mowers, trimmers, and various engines.

Image: Stacool Spark Plug Tester with Indicator Lights, showing its overall design.

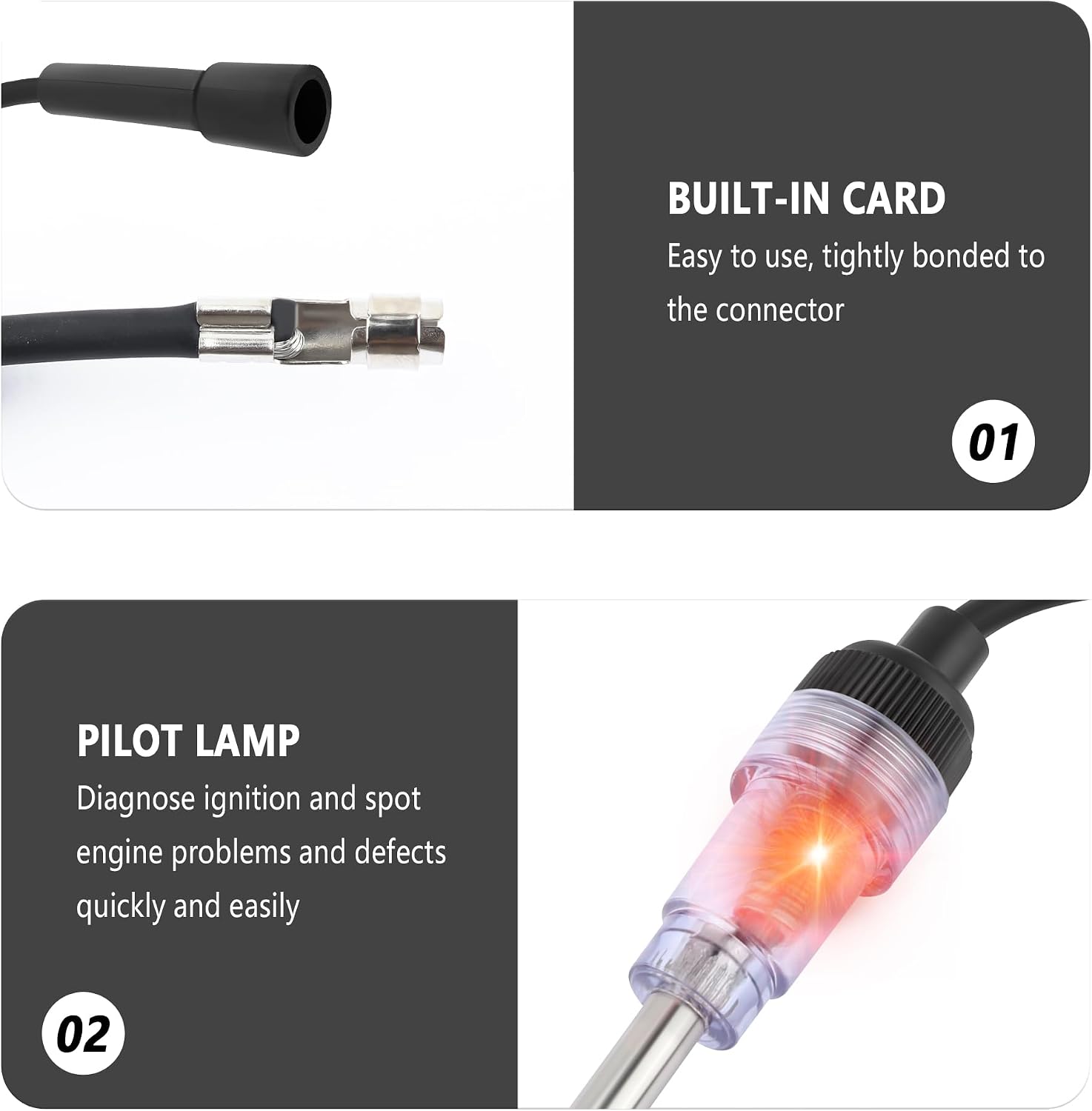

Image: Close-up of the tester highlighting the built-in card for secure connection and the pilot lamp pou dyagnostik.

Imaj: Detaye view of the spark plug tester components, including the metal tip and transparent body.

Image: The spark plug tester connected to an automotive engine, demonstrating its application.

3. Enstalasyon

Before using the spark plug tester, ensure the engine is turned off and cool to the touch to prevent injury. Locate the spark plug wires and identify the one you wish to test.

Prekosyon sekirite:

• Always ensure the engine is off before handling spark plug wires or the tester.
• Mete ekipman pwoteksyon pèsonèl ki apwopriye, tankou gan ak pwoteksyon pou je.
• Avoid touching the metal parts of the tester or spark plug wires while the engine is cranking or running, as high voltage prezan.

4. Operasyon Enstriksyon

Follow these steps to use the Stacool Spark Plug Tester:

1. Etenn motè a: Asire w ke motè a etenn nèt.
2. Detach Coil/Spark Plug Wire: Carefully detach the spark plug wire or coil from the spark plug.
3. Konekte tèsteur a ak bouji a: Connect the black rubber port of the ignition spark tester to the spark plug. Ensure a secure connection.
4. Connect Tester to Spark Plug Wire/Coil: Connect the metal end of the tester to the spark plug wire or coil that was previously detached.
5. Kòmanse motè: Eseye kòmanse motè a.
6. Observe Indicator Light: If the ignition circuit is complete and functioning, the indicator light on the tester will flash. A flashing light indicates that spark is being delivered to the spark plug. If the light does not flash, there is an issue with the ignition system.

Image: Diagram illustrating how to connect the spark plug tester between the spark plug and the ignition coil/wire.

Image: The spark plug tester connected and showing a flashing light during engine operation, indicating a functional spark.

Videyo ansèyman:

5. Antretyen

To ensure the longevity and accurate performance of your Stacool Spark Plug Tester, follow these maintenance guidelines:

• Netwayaj: After each use, wipe the tester with a clean, dry cloth to remove any dirt, oil, or moisture. Do not use harsh chemicals or abrasive cleaners.
• Depo: Store the tester in a dry, cool place, away from direct sunlight and extreme temperatures. Keep it in its original packaging or a protective case to prevent damage.
• Enspeksyon: Periodically inspect the cable and connections for any signs of wear, fraying, or damage. If any damage is found, discontinue use and replace the unit if necessary.

NAN. Depanaj

If the indicator light on your Stacool Spark Plug Tester does not flash when the engine is cranked, consider the following:

• No Flash: If the indicator light does not flash, it indicates a lack of spark in the ignition circuit. This could be due to a faulty spark plug, a damaged spark plug wire, a malfunctioning ignition coil, or other issues within the ignition system.
• Tcheke Koneksyon: Ensure all connections between the tester, spark plug, and spark plug wire/coil are secure and properly seated.
• Test Other Cylinders: If applicable, test other spark plug wires/cylinders to determine if the issue is isolated to one cylinder or affects the entire ignition system.
• Konsilte yon pwofesyonèl: If you are unable to diagnose the problem, it is recommended to consult a qualified mechanic or automotive technician.

7. Espesifikasyon

8. Garanti ak sipò

Stacool products are manufactured to high-quality standards. For specific warranty information, please refer to the documentation included with your purchase or contact Stacool customer support.

Sipò Kliyan:

If you encounter any issues or have questions regarding the Stacool Spark Plug Tester, please contact our customer support team through the retailer's platform or the official Stacool website. Our representatives are available to assist you with product inquiries, troubleshooting, and warranty claims.
