ALLIANCE LAUNDRY SYSTEMS Control Kit F113P3 User Manual

1. Entwodiksyon

This manual provides essential information for the installation, function, and maintenance of the ALLIANCE LAUNDRY SYSTEMS Control Kit, model F113P3. This kit is designed as a replacement or service part for specific coin-operated laundry machines, including those from Speed Queen, Huebsch, and other Alliance Laundry Systems brands. It functions as a control board for the washer drive system, managing coin integration and operational limits.

The F113P3 control kit is a genuine OEM part, ensuring compatibility and optimal performance with the intended appliances. Please read this manual thoroughly before attempting any installation or service.

2. Enfòmasyon sou Sekirite

• Danje elektrik: Always disconnect power to the appliance before installing, servicing, or removing this control kit. Failure to do so can result in serious injury or death.
• Enstalasyon pwofesyonèl rekòmande: Installation of this control kit should only be performed by qualified service technicians familiar with electrical systems and laundry appliance repair.
• Egzeyat estatik: Electronic components are sensitive to static electricity. Handle the control kit by its edges and avoid touching exposed circuitry. Use appropriate static-dissipative measures.
• Pyès Orijinal: Use only genuine replacement parts as specified by ALLIANCE LAUNDRY SYSTEMS. Non-genuine parts may cause damage or unsafe operation.
• Read Appliance Manual: Refer to the specific service manual for the laundry appliance in which this kit will be installed for detailed wiring diagrams and safety procedures.

3. Pake kontni

Verifye ke tout konpozan yo prezan epi yo pa domaje lè w ap ouvri pake a.

• 1x ALLIANCE LAUNDRY SYSTEMS Control Kit (F113P3)
• (Additional components such as connectors or specific instructions may be included depending on the kit version. Refer to the packaging for a complete list.)

4. Enstalasyon ak Enstalasyon

This control kit is a critical electronic component. Improper installation can lead to appliance malfunction, damage, or safety hazards. It is strongly recommended that installation be performed by a certified technician.

1. Dekonekte pouvwa: Ensure the laundry machine is completely disconnected from its power source before beginning any work.
2. Access Control Area: Follow the specific service manual for your laundry machine model to safely access the existing control board or installation location.
3. Retire ansyen konpozan an (si sa aplikab): Carefully disconnect all wiring harnesses and mounting hardware from the old control board. Note the orientation and connection points for each wire. Taking photos can be helpful.
4. Install New Control Kit:

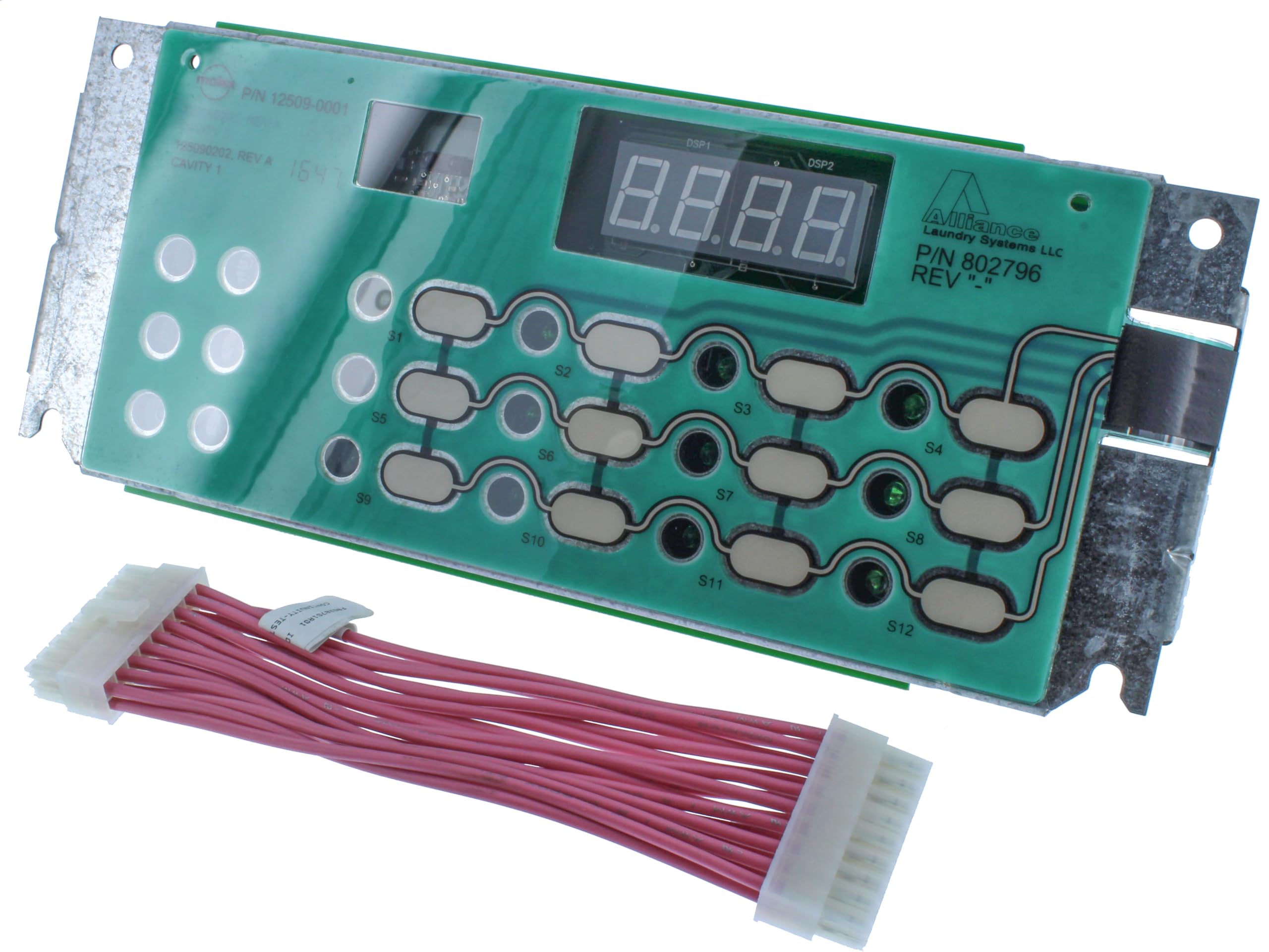

   Image 1: ALLIANCE LAUNDRY SYSTEMS Control Kit F113P3. This image shows the electronic control board with various connectors and components, typical of a washer drive control unit.

   Carefully align the new F113P3 control kit with the mounting points. Secure it using the appropriate hardware. Connect all wiring harnesses to their corresponding terminals on the new board. Ensure all connections are firm and correctly seated. Refer to the appliance's wiring diagram for verification.

5. Ransanble aparèy la: Once the control kit is securely installed and all connections are verified, reassemble the laundry machine panels and covers.
6. Retabli pouvwa ak tès: Restore power to the appliance. Perform a functional test according to the laundry machine's service manual to ensure the new control kit is operating correctly.

5. Operasyon

The F113P3 Control Kit is an internal component that manages the washer drive system and coin integration. It does not have direct user-operable controls. Its function is to interpret signals from the coin mechanism and user interface, then control the washer's operational cycles and drive components. Proper operation is indicated by the laundry machine functioning as expected after installation.

For instructions on how to operate the laundry machine itself (e.g., selecting cycles, inserting coins), please refer to the user manual provided with the specific laundry appliance.

6. Antretyen

The ALLIANCE LAUNDRY SYSTEMS Control Kit F113P3 is designed to be maintenance-free under normal operating conditions. However, to ensure its longevity and reliable performance:

• Kenbe sèk: Ensure the environment around the control kit remains dry and free from moisture or excessive humidity.
• Lapwòpte: Periodically inspect the area around the control kit for dust or debris accumulation. If necessary, gently clean with a soft, dry brush or compressed air (ensure power is disconnected).
• Vantilasyon: Ensure proper airflow within the appliance to prevent overheating of electronic components.
• Evite chòk fizik: Protect the control kit from impacts or vibrations that could damage internal components or connections.

NAN. Depanaj

If the laundry machine experiences issues after the installation of the F113P3 control kit, consider the following troubleshooting steps. Always disconnect power before inspecting internal components.

• No Power to Machine:
  • Check main power supply to the appliance.
  • Verify all wiring connections to the control kit are secure.
  • Inspect for blown fuses or tripped circuit breakers.
• Machine Not Starting Cycle:
  • Ensure the coin mechanism is functioning correctly and registering payments.
  • Check door/lid switch for proper engagement.
  • Consult the appliance's service manual for specific error codes or diagnostic procedures.
• Incorrect Washer Drive Function:
  • Verify all motor and sensor connections to the control kit.
  • Ensure the correct control kit model (F113P3) was installed for the specific appliance.

For complex issues or if troubleshooting does not resolve the problem, contact a qualified service technician or ALLIANCE LAUNDRY SYSTEMS customer support.

8. Espesifikasyon

9. Garanti ak sipò

For specific warranty information regarding the ALLIANCE LAUNDRY SYSTEMS Control Kit F113P3, please refer to the documentation provided with your purchase or contact the authorized seller or ALLIANCE LAUNDRY SYSTEMS directly. Warranty terms typically cover manufacturing defects for a specified period.

For technical support, service inquiries, or to locate an authorized service provider, please visit the official ALLIANCE LAUNDRY SYSTEMS website or contact their customer service department. When contacting support, have your product model number (F113P3) and purchase details readily available.

ALLIANCE LAUNDRY SYSTEMS Official Websit: www.alliancelaundry.com
