Lithium-ion Battery Angle Grinder User Manual

1. Enstriksyon Sekirite Enpòtan

Always observe basic safety precautions when operating this angle grinder to reduce the risk of fire, electric shock, and personal injury.

• Li tout enstriksyon yo: Familyarize w avèk kontwòl yo ak bon jan pou w itilize zouti a.
• Sekirite nan zòn travay: Kenbe zòn travay ou pwòp epi byen limen. Zòn ankonbre oswa nwa yo envite aksidan.
• Sekirite elektrik: Do not expose power tools to rain or wet conditions. Keep cords away from heat, oil, sharp edges, or moving parts.
• Sekirite pèsonèl: Always wear eye protection, hearing protection, and appropriate respiratory protection. Use safety footwear and work gloves when necessary.
• Itilizasyon zouti ak swen: Do not force the power tool. Use the correct power tool for your application. Disconnect the battery pack before making any adjustments, changing accessories, or storing the tool.
• Itilizasyon ak swen batri: Rechaje sèlman avèk plato ki espesifye pa manifakti a. Sèvi ak zouti elektrik sèlman avèk pil ki fèt espesyalman pou sa.

2. Pwodwi souview

The Generic TAGLI211156 is a powerful 20V Lithium-ion battery-powered angle grinder designed for various cutting and grinding tasks. It features a brushless motor for enhanced efficiency and durability.

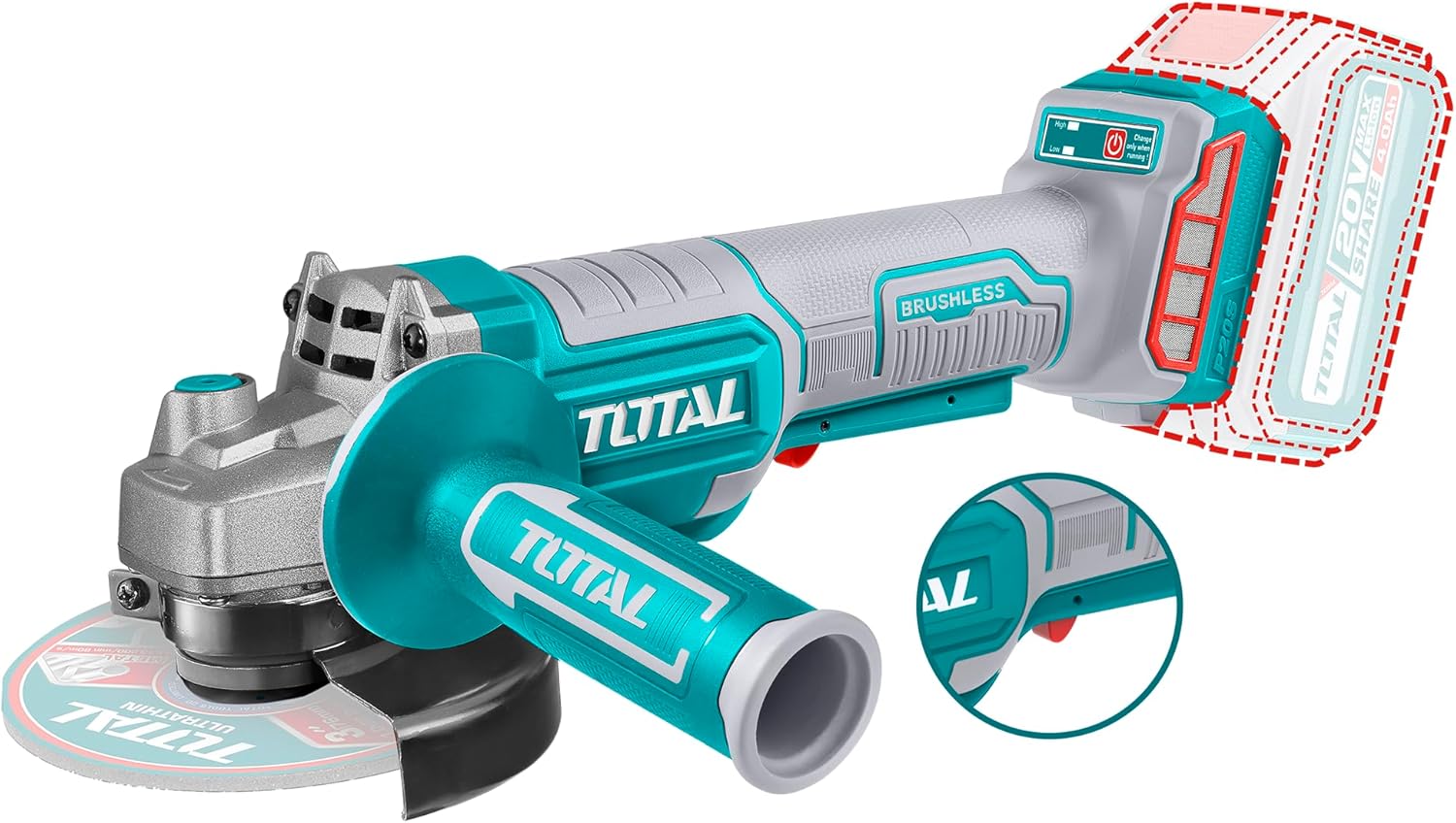

Figi 2.1: Devan view of the Generic 20V Lithium-ion Angle Grinder, showing the main body, auxiliary handle, and a 115mm disc. Note that the battery, charger, and disc are sold separately.

Figi 2.2: Side view of the Generic 20V Lithium-ion Angle Grinder, highlighting the 115mm (4-1/2 inch) disc diameter and a reminder that the battery and charger are sold separately.

Key features include a 20V brushless motor, offering no-load speeds of 3000/8000 RPM, and a 115mm disc diameter capacity. The spindle thread is M14, equipped with a safety switch for secure operation. The tool is green in color and comes packaged in a colored box. Please note that the battery, charger, and grinding disc are not included with the tool and must be purchased separately.

3. Enstalasyon

Before initial use, ensure all components are present and undamaged. This angle grinder requires a 20V Lithium-ion battery and a compatible charger, both sold separately.

3.1 Mete manch oksilyè a

The auxiliary handle can be screwed into either side of the gear housing for left or right-handed operation. Ensure it is tightened securely before use.

3.2 Installing/Removing the Grinding Disc

1. Asire w ou retire pake batri a nan zouti a.
2. Peze epi kenbe bouton an fèmen file koton.
3. Mete flanj enteryè a sou aks la.
4. Mete disk moulen an sou flange enteryè a, asire w ke li chita plat.
5. Screw the outer flange (nut) onto the spindle and tighten it firmly using the provided spanner wrench.
6. Pou retire, ranvèse etap yo.

3.3 Enstale pake batri a

Align the battery pack with the battery port on the tool and slide it in until it clicks into place. Ensure it is fully seated before operation.

4. Operasyon Enstriksyon

Always wear appropriate personal protective equipment (PPE) including safety glasses, hearing protection, and gloves before operating the angle grinder.

4.1 Kòmanse epi kanpe zouti a

• To start the tool, slide the safety switch forward and then press the trigger switch.
• To stop the tool, release the trigger switch. The safety switch will automatically return to the locked position.

4.2 Ajisteman vitès

This model offers two no-load speed settings: 3000 RPM and 8000 RPM. Refer to the tool's controls for adjusting the speed according to the material and task. Lower speeds are generally suitable for polishing or light grinding, while higher speeds are for aggressive cutting and grinding.

4.3 Teknik pou fanm ak mòso koupe

• Manje: Hold the grinder at a 15-30 degree angle to the workpiece. Apply light, even pressure and move the tool smoothly across the surface.
• Koupe: Hold the grinder perpendicular to the workpiece. Allow the disc to do the work; do not force it. Ensure the workpiece is securely clamped.
• Evite twò chaje zouti a. Si motè a ralanti anpil, diminye presyon an.

5. Antretyen

Regular maintenance ensures optimal performance and extends the life of your angle grinder. Always disconnect the battery pack before performing any maintenance.

• Netwayaj: Keep the ventilation openings clear and free of dust and debris. Use a soft brush or compressed air to clean the tool. Do not use water or chemical cleaners.
• Enspeksyon Disk: Regularly inspect grinding and cutting discs for cracks, chips, or excessive wear. Replace damaged discs immediately.
• Swen batri: Store battery packs in a cool, dry place away from direct sunlight and extreme temperatures. Recharge batteries before they are completely depleted to prolong their lifespan.
• Depo: Sere zouti a nan yon kote ki sèk, an sekirite, kote timoun pa ka rive.

NAN. Depanaj

7. Espesifikasyon

8. Garanti ak sipò

For information regarding warranty coverage, please refer to the warranty card included with your purchase or contact the retailer where the product was acquired. Keep your proof of purchase for any warranty claims.

For technical support or service inquiries, please contact the customer service department of the brand or your local distributor. Contact details are typically provided in the product packaging or on the manufacturer's official websit.
