AYINO HD950 5.1CH Surround Sound Decoder Splitter Converter User Manual

1. Entwodiksyon

The AYINO HD950 is a versatile 5.1 channel surround sound decoder and HDMI splitter converter designed to enhance your audio and video experience. It supports various digital audio decoding formats including Dolby Atmos, AC3, DTS HD, and LPCM. With 4K 60Hz HDMI 2 in 1 out, HDCP 2.2, and HDR support, it integrates seamlessly into modern home theater systems. This manual provides detailed instructions for setup, operation, and maintenance of your device.

2. Bwat sa ki nan liv

Tanpri verifye ke tout atik sa yo enkli nan pakè ou a:

• 1x AYINO HD950 Audio Decoder
• 1x pouvwa adaptè
• 1x Remote Control (pil yo pa enkli)
• 1x antèn san fil
• 1x Kab Optik
• 1x USB A pou USB B kab
• 3x 2RCA Cable
• 1x OFC Audio Cable
• 1x USB C to USB Female Connector
• 1x Manyèl Itilizatè (Dokiman sa a)

3. Pwodwi souview

Familiarize yourself with the AYINO HD950's design and key features.

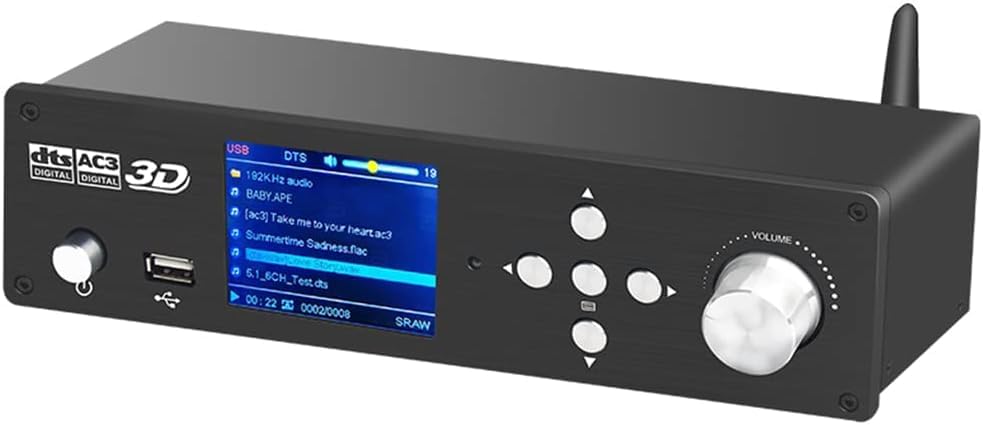

Figi 3.1: Devan view of the AYINO HD950 decoder, showing the display, control buttons, and volume knob.

Figi 3.2: Plis paseview of key features including DTS, AC3, DSD decoding, 24Bit/192Khz DSP, USB/SD playback, PC-USB, Coaxial/Optical I/O, Bluetooth 5.0, Remote control, HDMI 2.0, 4K support, and ARC functionality.

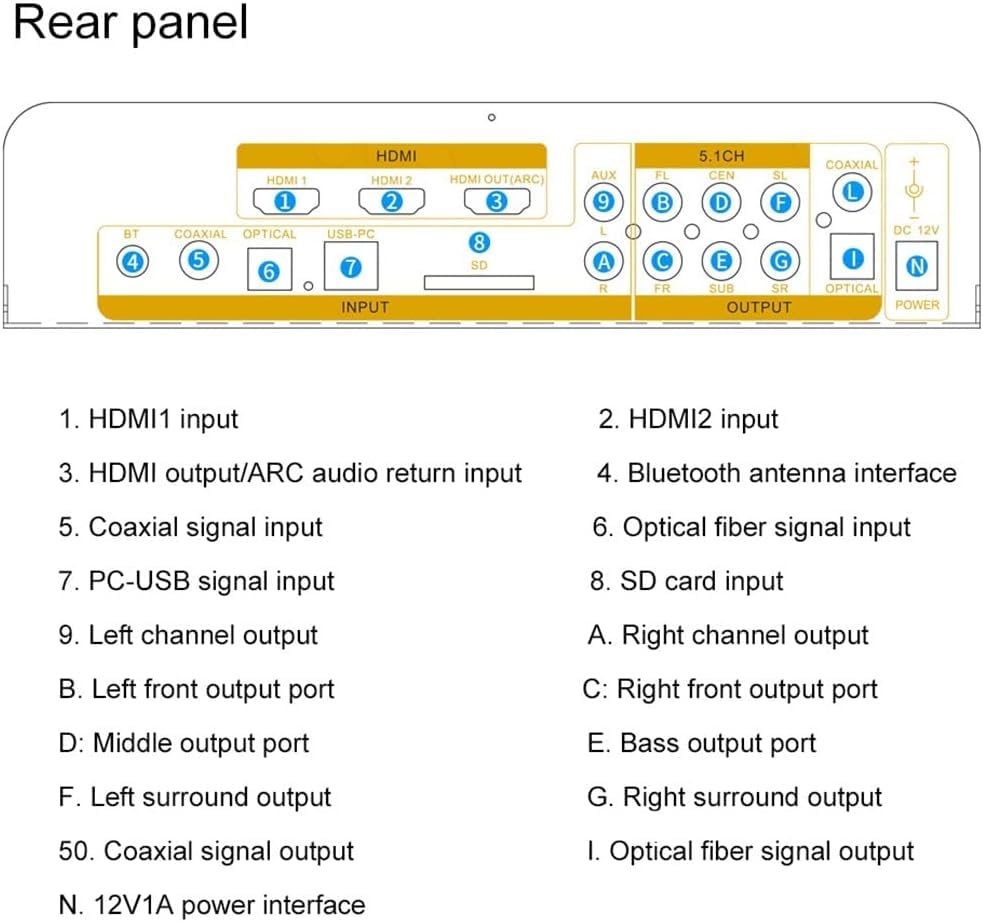

Figure 3.3: Detailed diagram of the rear panel connections, including HDMI inputs/output, Bluetooth antenna, Coaxial, Optical, PC-USB, SD card slots, 5.1ch RCA outputs, and power input.

1. HDMI1 opinyon
2. HDMI2 opinyon
3. HDMI pwodiksyon / ARC odyo retounen opinyon
4. Koòdone antèn Bluetooth
5. Kowaksyal siyal opinyon
6. D 'siyal fib optik
7. Antre siyal PC-USB
8. Antre kat SD
9. Pwodiksyon chanèl gòch
10. Pwodiksyon kanal dwat
11. Front Left (FL) output port
12. Front Right (FR) output port
13. Center (CEN) output port
14. Subwoofer (SUB) output port
15. Left Surround (SL) output
16. Right Surround (SR) output
17. Pwodiksyon siyal kowaksyal
18. Pwodiksyon siyal fib optik
19. 12V/1A power interface

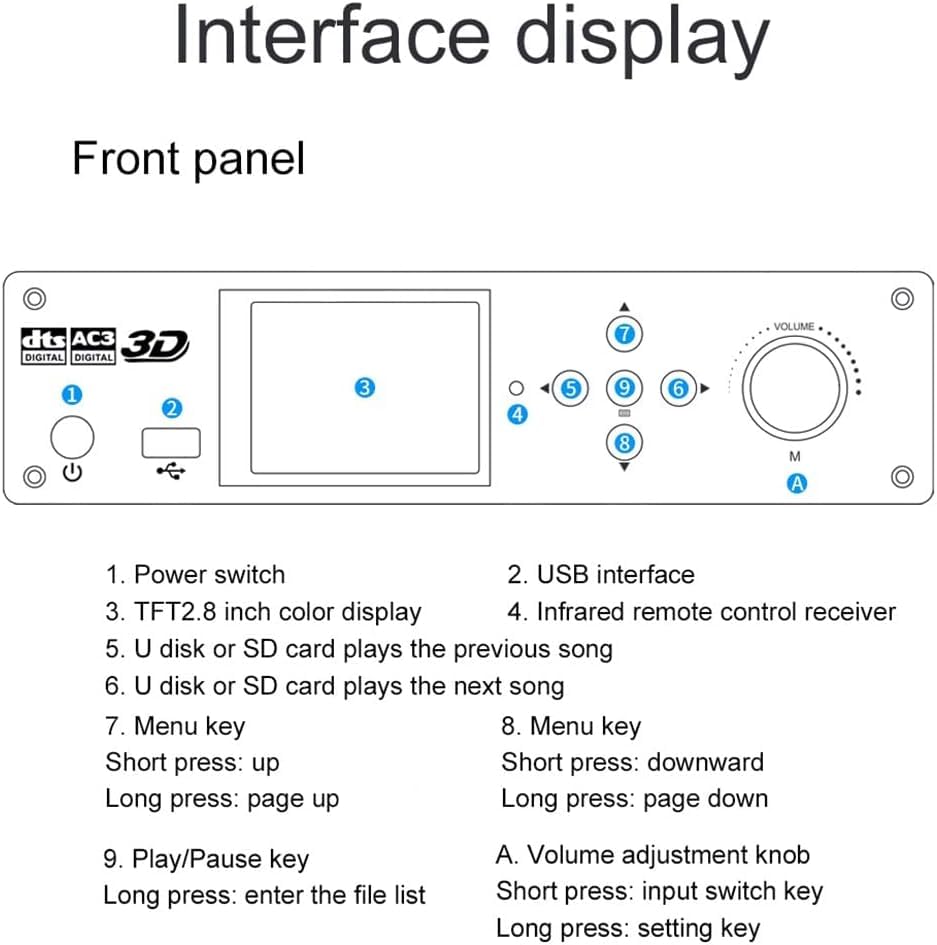

Figure 3.4: Detailed diagram of the front panel controls and display.

1. Pouvwa switch
2. USB koòdone
3. TFT 2.8 inch color display
4. Enfrawouj reseptè kontwòl remote
5. U disk oswa kat SD jwe chante anvan an
6. U disk oswa kat SD jwe chante kap vini an
7. Menu key (Short press: up, Long press: page up)
8. Menu key (Short press: downward, Long press: page down)
9. Play/Pause key (Long press: enter the file lis)
10. Volume adjustment knob (Short press: input switch key, Long press: setting key)

4. Enstriksyon Enstalasyon

Follow these steps to connect your AYINO HD950 to your audio and video system.

4.1 Konekte Sous Antre yo

Figure 4.1: General interface connection diagram for various input and output devices.

• Antre HDMI: Connect your source devices (e.g., TV box, game console, Blu-ray player) to HDMI1 or HDMI2 ports on the rear panel.
• HDMI ARC: If your TV supports Audio Return Channel (ARC), connect an HDMI 2.0 (19+1 core) cable from your TV's HDMI ARC port to the HDMI OUT(ARC) port on the HD950. This allows audio from your TV to be sent back to the decoder.
• Optik/Koaksyal: Connect digital audio sources (e.g., TV, set-top box) to the OPTICAL or COAXIAL input ports.
• PC-USB: Connect your computer to the PC-USB port using the provided USB A to USB B cable to use the HD950 as an external sound card.
• USB Disk/SD Card: Insert a USB flash drive or SD card into the respective slots for media playback.
• Bluetooth: Attach the wireless antenna to the BT port. Enable Bluetooth on your mobile device and pair with 'HD950'.
• AUX: Connect analog audio sources to the AUX input.

4.2 Konekte Aparèy Sòti yo

• 5.1 Channel Analog Output: Connect the 5.1ch RCA outputs (FL, FR, CEN, SUB, SL, SR) to a 5.1 channel amplifier or active 5.1 speakers.
• 2.0 Channel Analog Output: Connect the FL and FR RCA outputs to a 2.0 channel amplifier or active 2.0 speakers.
• Sòti HDMI: Connect the HDMI OUT(ARC) port to your monitor, HDTV, or projector for video output.
• Sòti odyo dijital: Connect the COAXIAL or OPTICAL output ports to a digital amplifier or digital speakers for digital audio passthrough (not supported for U disk playback).

4.3 Koneksyon pouvwa

Connect the provided power adapter to the DC 12V/1A input port on the rear panel and then plug it into a power outlet.

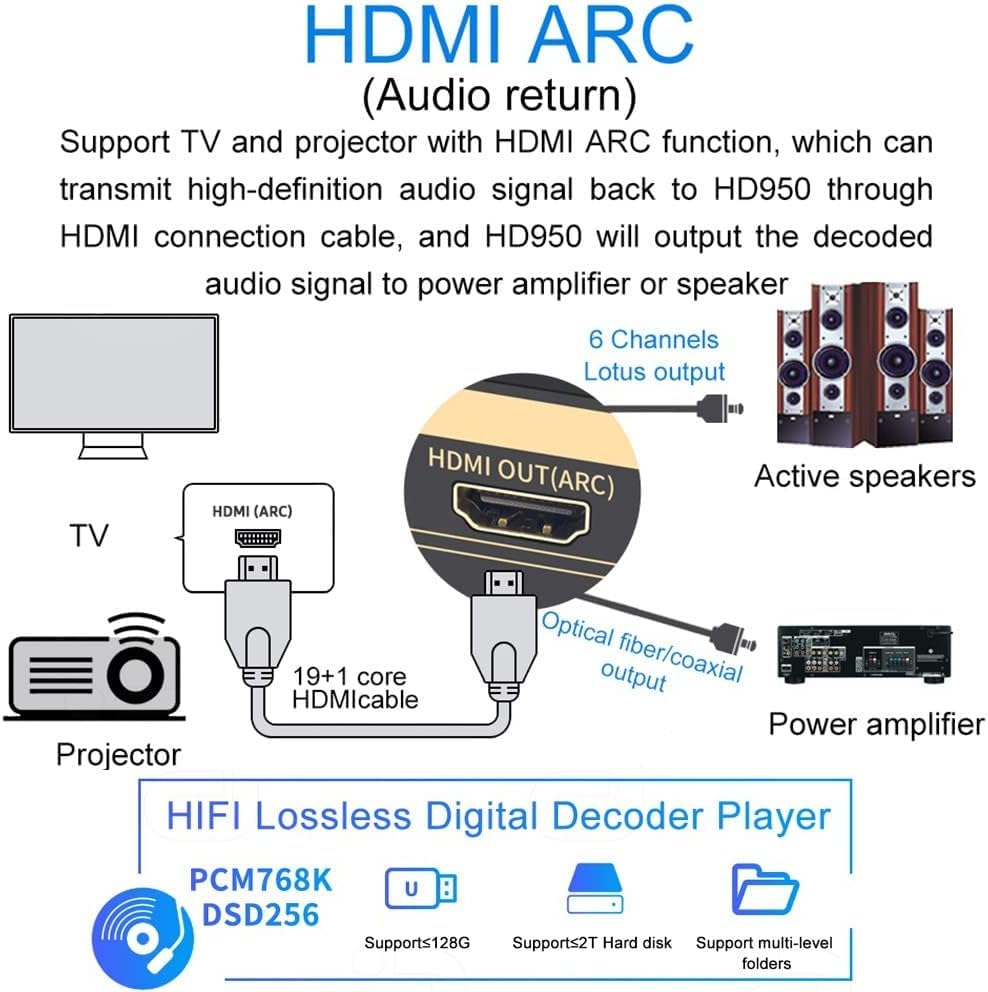

Figure 4.2: Diagram illustrating HDMI ARC connection from a TV to the HD950, and then to active speakers or a power amplifier.

5. Operasyon Enstriksyon

5.1 Power On/Off

Press the power switch (1) on the front panel to turn the device on or off.

5.2 Seleksyon Sous Antre

Short press the Volume adjustment knob (A) on the front panel or use the 'Input' button on the remote control to cycle through available input sources (HDMI1, HDMI2, ARC, PC-USB, USB Disk, SD Card, Coaxial, Optical, AUX, Bluetooth). The selected input will be displayed on the TFT screen (3).

5.3 Kontwòl Volim

Rotate the Volume adjustment knob (A) on the front panel or use the volume buttons on the remote control to adjust the master volume. Each channel's volume can be adjusted separately via the remote control. Note: When audio originates from a set-top box, volume control may only be possible via the HD950's remote or knob, not your TV remote.

5.4 Media Playback (USB/SD Card)

Insert a USB disk or SD card. Use the navigation buttons (5, 6, 7, 8) on the front panel or the remote control to browse and select audio files. Press the Play/Pause key (9) to start or pause playback. Long press the Play/Pause key to enter the file lis.

5.5 Menu and Settings

Long press the Volume adjustment knob (A) to enter the settings menu. Use the navigation buttons (7, 8) to navigate through menu options and adjust settings such as audio output modes or display preferences.

6. Antretyen

• Netwayaj: Sèvi ak yon twal mou epi sèk pou netwaye aparèy la. Pa sèvi ak pwodui netwayaj likid oswa ayewosòl.
• Anviwònman: Kenbe aparèy la nan yon kote ki fre epi sèk, lwen limyè solèy dirèk, sous chalè ak imidite.
• Vantilasyon: Asire w ke gen ase vantilasyon toutotou aparèy la pou anpeche l chofe twòp. Pa bloke ouvèti vantilasyon yo.
• Pouvwa: Disconnect the power adapter if the device will not be used for an extended period.

NAN. Depanaj

If you encounter issues with your AYINO HD950, please refer to the following common problems and solutions:

• Pa gen Sòti Son:
  • Ensure all audio cables (RCA, Optical, Coaxial) are securely connected.
  • Verify that the correct input source is selected on the HD950.
  • Check the volume level on both the HD950 and your connected amplifier/oratè.
  • Confirm that your source device is outputting audio in a supported format.
  • If using ARC, ensure your HDMI cable is HDMI 2.0 (19+1 core) and ARC is enabled on your TV.
• No Video Output (HDMI):
  • Ensure HDMI cables are securely connected between the source, HD950, and display.
  • Verify the correct HDMI input is selected on your display.
  • Check if the source device is powered on and outputting video.
• Incorrect Surround Sound:
  • Ensure your source material is 5.1 channel audio. If the source is 2.0 channel, the HD950 will decode it to virtual 5.1.
  • Verifye ke ou amplifier/speakers are configured for 5.1 channel input.
  • Check the audio settings on your source device to ensure it's outputting the desired audio format (e.g., Bitstream for DTS/AC3).
• Kontwòl Remote pa travay:
  • Ensure batteries are correctly inserted and not depleted.
  • Point the remote directly at the infrared receiver on the front panel.
  • Retire tout obstak ki genyen ant telekòmand lan ak aparèy la.

8. Espesifikasyon

9. Garanti ak sipò

9.1 Pwodwi Garanti

The AYINO HD950 comes with a 3-mwa garanti from the date of purchase. Please retain your proof of purchase for warranty claims. This warranty covers manufacturing defects and malfunctions under normal use.

9.2 Sipò pou Kliyan

For technical assistance, troubleshooting, or warranty inquiries, please contact AYINO customer support. You may also reach out to the packer for support:

• Anbalè: Etzin PVT.LTD, Mumbai, India.
• Nimewo liy asistans: +91-22-49696922
