BUVAYE BN03 Portable Car Jump Starter with Air Compressor and LED Light User Manual

Entwodiksyon

The BUVAYE BN03 is a multi-functional device designed for automotive emergencies. It combines a powerful car jump starter, a tire inflator, a portable power bank, and an LED flashlight. This manual provides detailed instructions for safe and effective use of the device.

Karakteristik pwodwi

• Demaraj so segondè-pèfòmans: Delivers 2500A peak current, capable of starting vehicles with up to 5L diesel or 8L gas engines.
• Smart Clamp Pwoteksyon: Features 10 integrated safety protections including anti-spark, reverse polarity, overcurrent, short-circuit, overcharge, over-discharge, high-temperature, low-temperature, reverse connection, and overload protection.
• Fast Tire Inflator: Equipped with a 22-cylinder turbo motor, providing an airflow of 35 liters per minute. Supports real-time tire pressure detection, automatic shut-off at preset values, and unit switching. Can inflate 195/65/R15 tires from 0 to 35 PSI in approximately 5 minutes.
• Fonksyon memwa: Retains the last set inflation mode and air pressure value for convenience.
• Portable Power Bank: Functions as a mobile power source for charging electronic devices.
• Flach ki ap dirije: Integrated LED light for emergency illumination.

Kontni pake

Tanpri tcheke pake a pou atik sa yo:

• BUVAYE BN03 Jump Starter with Air Compressor x1
• Smart Jump Starter Clamps x1
• Inflatable Hose x1
• Nozzle Adapters x4
• USB-C Chaje kab x1
• Accessory Storage Bag x1
• Manyèl itilizatè x1

Enstriksyon Sekirite

Li tout avètisman ak enstriksyon sekirite yo anvan ou itilize pwodui sa a. Si ou pa swiv avètisman ak enstriksyon yo, sa ka lakòz chòk elektrik, dife ak/oswa blesi grav.

• Pa demare yon batri ki nan frizè.
• Asire koneksyon polarite ki kòrèk la (klou wouj la)amp a pozitif, nwa clamp pou negatif).
• Pa konekte pozitif ak negatif cl aamps ansanm.
• Kenbe aparèy la lwen timoun yo.
• Pa ekspoze aparèy la nan lapli oswa nan kondisyon mouye.
• Pa demonte aparèy la. Konfye tout antretyen bay pèsonèl kalifye.
• Sèvi sèlman ak kab chaje ak akseswa yo bay la.
• Avoid prolonged inflation to prevent overheating. Allow 10 minutes of cooling time after each inflation cycle.

Eleman souview

Imaj: Diagram showing the components and features of the BUVAYE BN03 device.

This image illustrates the various parts of the BUVAYE BN03, including the power switch, air pressure controls, pressure unit adjustment, smart clip socket, inflator hose socket, USB-A output, USB-C input port, LED flashlight switch, positive clamp (red), negative clamp (black), and jump start port.

• Pouvwa switch: Limen/éteint aparèy la.
• Air Pressure +/-: Ajiste presyon lè sib la pou gonfleman.
• Pressure Unit Adjustment: Cycles through pressure units (PSI, KPA, BAR, KG/CM²).
• Smart Clip Socket: Port for connecting the smart jump starter clamps.
• Inflator Hose Socket: Port for connecting the air inflator hose.
• USB-A Sòti: Pou chaje aparèy ekstèn yo.
• Pò Antre USB-C: For charging the BUVAYE BN03 device.
• LED Flashlight Switch: Activates the LED light.
• Pozitif Clamp (Wouj): Connects to the positive terminal of the car battery.
• Negatif Clamp (Nwa): Connects to the negative terminal of the car battery.
• Pò Demaraj Rapid: Connects the smart clamps to the main unit.

Enstalasyon ak chaje

Chaje Aparèy la

Before first use, fully charge the BUVAYE BN03. Connect the provided USB-C charging cable to the USB-C input port on the device and to a suitable USB power adapter (not included). The display will indicate the charging status. A full charge is recommended for optimal performance.

Premye enspeksyon

Inspect the device and all accessories for any damage before use. Do not use if any components are damaged.

Enstriksyon Operasyon

1. Demaraj yon machin ak yon aparèy pou demaraj ak yon sovtaj

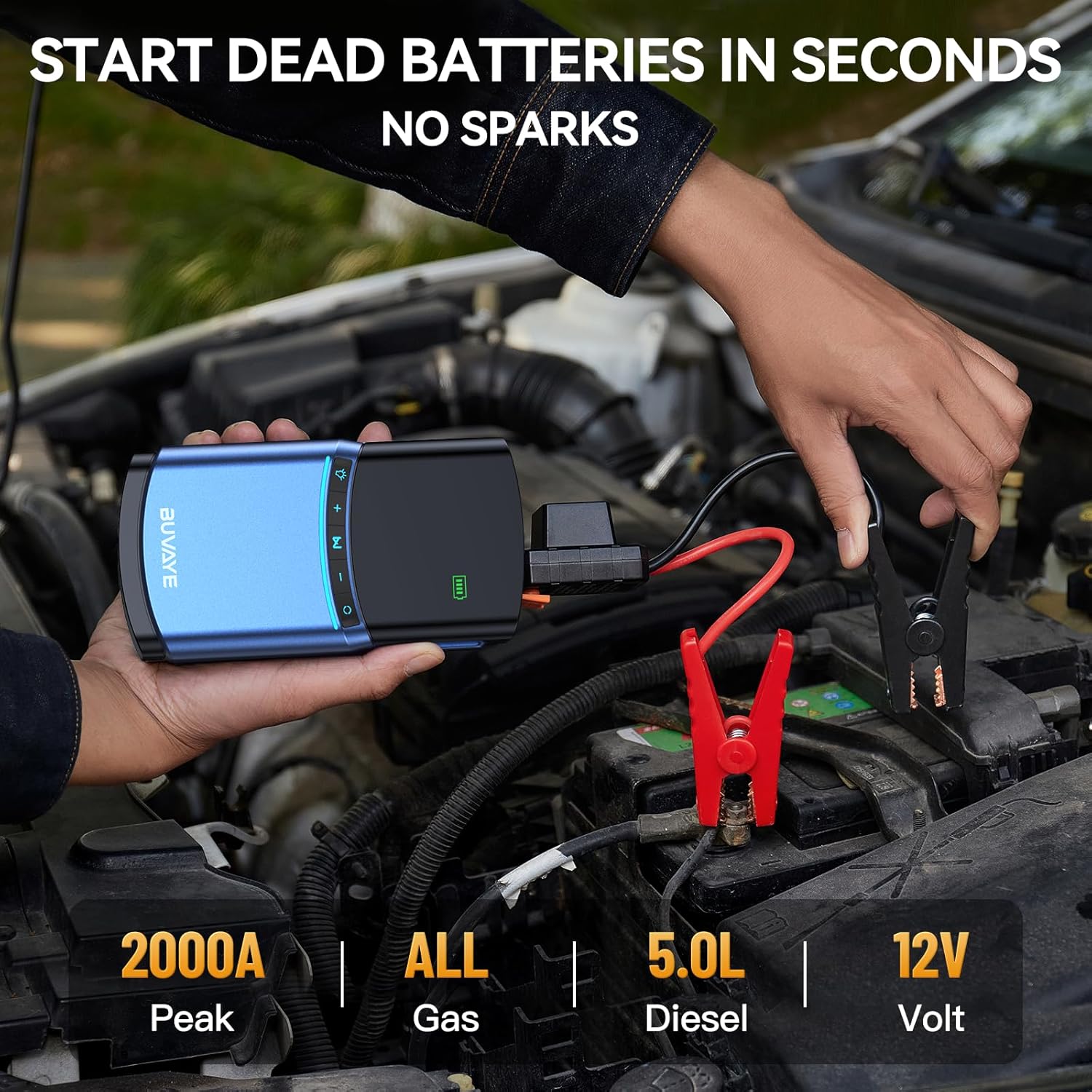

Imaj: A person connecting the jump starter clamps nan yon batri machin.

This image demonstrates the process of connecting the BUVAYE BN03 jump starter to a vehicle's battery terminals, showing the red clamp on the positive terminal and the black clamp on the negative terminal.

1. Ensure the BUVAYE BN03 is sufficiently charged.
2. Etenn ignisyon machin nan ak tout akseswa yo.
3. Connect the smart jump starter clamps to the jump start port on the BUVAYE BN03.
4. Konekte a red (positive) clamp a la tèminal pozitif (+) of the vehicle's battery.
5. Konekte a black (negative) clamp a la negatif (-) tèminal of the vehicle's battery.
6. Asire clamps are securely attached and the indicator light on the smart clamp is green. If it's red or flashing, check connections and battery status.
7. Demarre motè machin nan.
8. Yon fwa motè a kòmanse, retire kle entelijan an imedyatman.amps from the vehicle battery, first the negative (black) clamp, then the positive (red) clamp.
9. Disconnect the smart clamps from the BUVAYE BN03.

Nòt: If the vehicle does not start after 3 attempts, allow the jump starter to cool down for a few minutes before trying again. Consult your vehicle's manual for specific jump-starting procedures.

2. Gonfle Kawotchou

Imaj: The BUVAYE BN03 connected to a car tire for inflation.

This image shows the BUVAYE BN03 device with its inflator hose connected to a car tire valve, demonstrating the tire inflation function.

1. Connect the inflator hose to the inflator hose socket on the BUVAYE BN03.
2. Attach the other end of the inflator hose to the tire valve. Ensure a secure connection to prevent air leakage.
3. Turn on the BUVAYE BN03. The display will show the current tire pressure.
4. Use the "Air Pressure +/-" buttons to set the desired target pressure. Press the "Pressure Unit Adjustment" button to cycle through units (PSI, KPA, BAR, KG/CM²).
5. Press the start button (often the power button or a dedicated inflation button) to begin inflation.
6. Aparèy la ap sispann otomatikman lè presyon prereglaj la rive.
7. Disconnect the inflator hose from the tire valve and then from the BUVAYE BN03.

Fonksyon memwa: After powering on, press "+" or "-" to recall the last set inflation mode and pressure value.

Nòt: For continuous inflation, allow the device to cool down for 10 minutes after each inflation cycle to prevent overheating.

3. Itilizasyon kòm yon Bank Pouvwa

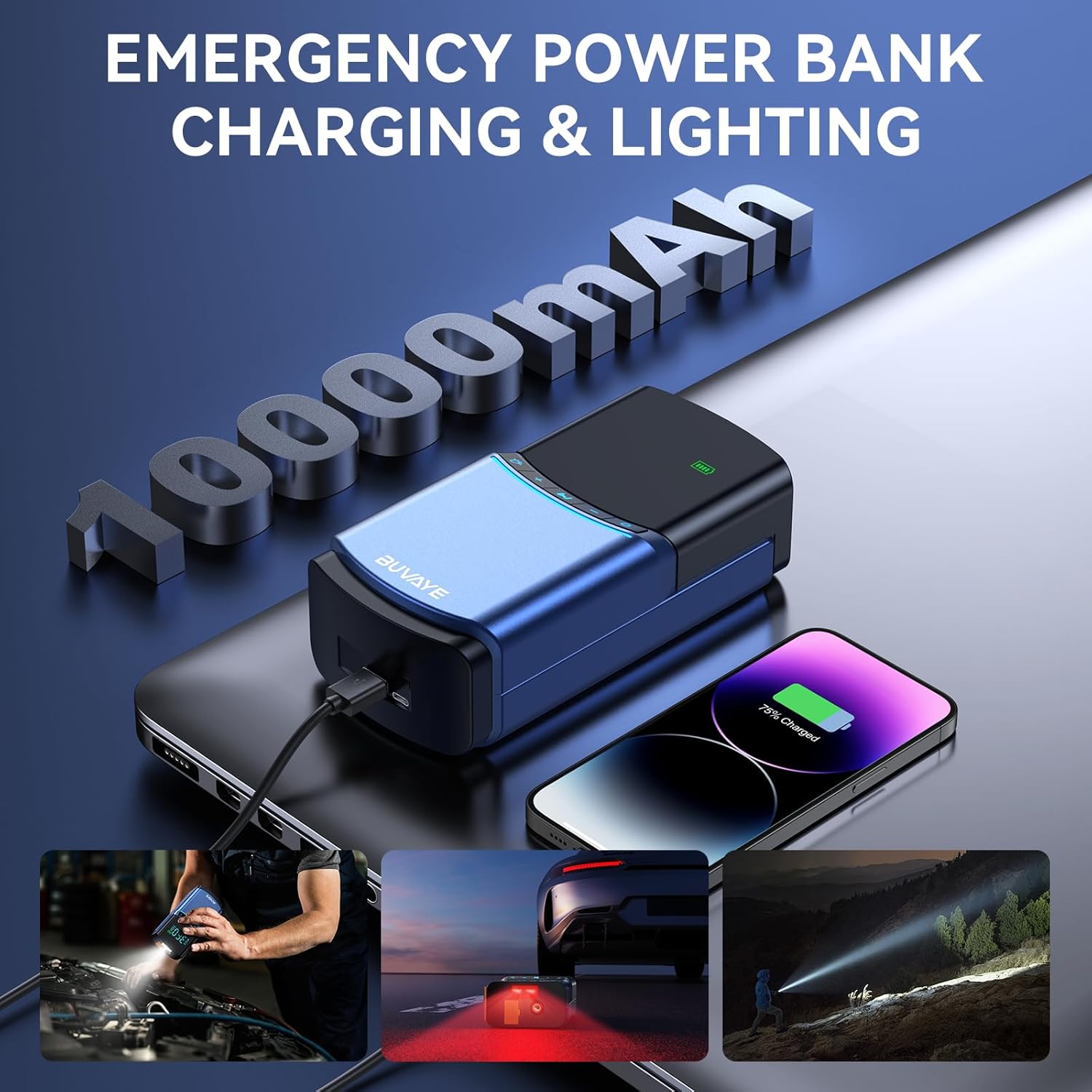

Imaj: The BUVAYE BN03 connected to a smartphone for charging.

This image shows the BUVAYE BN03 being used as a portable power bank, with a USB cable connecting it to a smartphone that is actively charging.

Connect your electronic device's USB charging cable to the USB-A output port on the BUVAYE BN03. The device will automatically begin charging your connected device.

4. Sèvi ak flach LED la

Press the LED Flashlight Switch to cycle through different light modes: steady on, strobe, and SOS. Press again to turn off the light.

Antretyen

• Netwayaj: Siye aparèy la avèk yon twal mou epi sèk. Pa sèvi ak pwodui chimik ki agresif oswa pwodui netwayaj abrazif.
• Depo: Sere aparèy la nan yon kote ki fre epi sèk, lwen limyè solèy dirèk ak tanperati ekstrèm.
• Chaje: Rechaje aparèy la chak 3-6 mwa, menm si w pa ap itilize l, pou kenbe batri a an bon eta.
• Dispozisyon batri: Dispose of the lithium-ion battery according to local regulations. Do not dispose of in household waste.

Depanaj

Espesifikasyon

Imaj: Visual representation of the jump starter's capacity for gas and diesel engines.

This image highlights the BUVAYE BN03's capability to jump start vehicles with up to 8.5L gas engines and 6L diesel engines, with a peak current of 2500A.

Imaj: Icons illustrating the 10 safety protection features.

This image displays the comprehensive 10 protection features of the BUVAYE BN03, including reverse polarity, over current, over voltage, over charge, over-discharge, high-temp, low-temp, reverse connection, overload, and short circuit protection.

Garanti ak sipò

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official BUVAYE websit la. Kenbe resi acha ou kòm prèv acha.
