Retevis RB645 PMR446 Rechargeable Walkie Talkie User Manual

1. Entwodiksyon

The Retevis RB645 is a compact and user-friendly PMR446 two-way radio designed for reliable communication. It features 16 channels, dual PTT buttons, VOX hands-free operation, and a long-lasting rechargeable battery. This manual provides essential information for setting up, operating, and maintaining your RB645 walkie talkie.

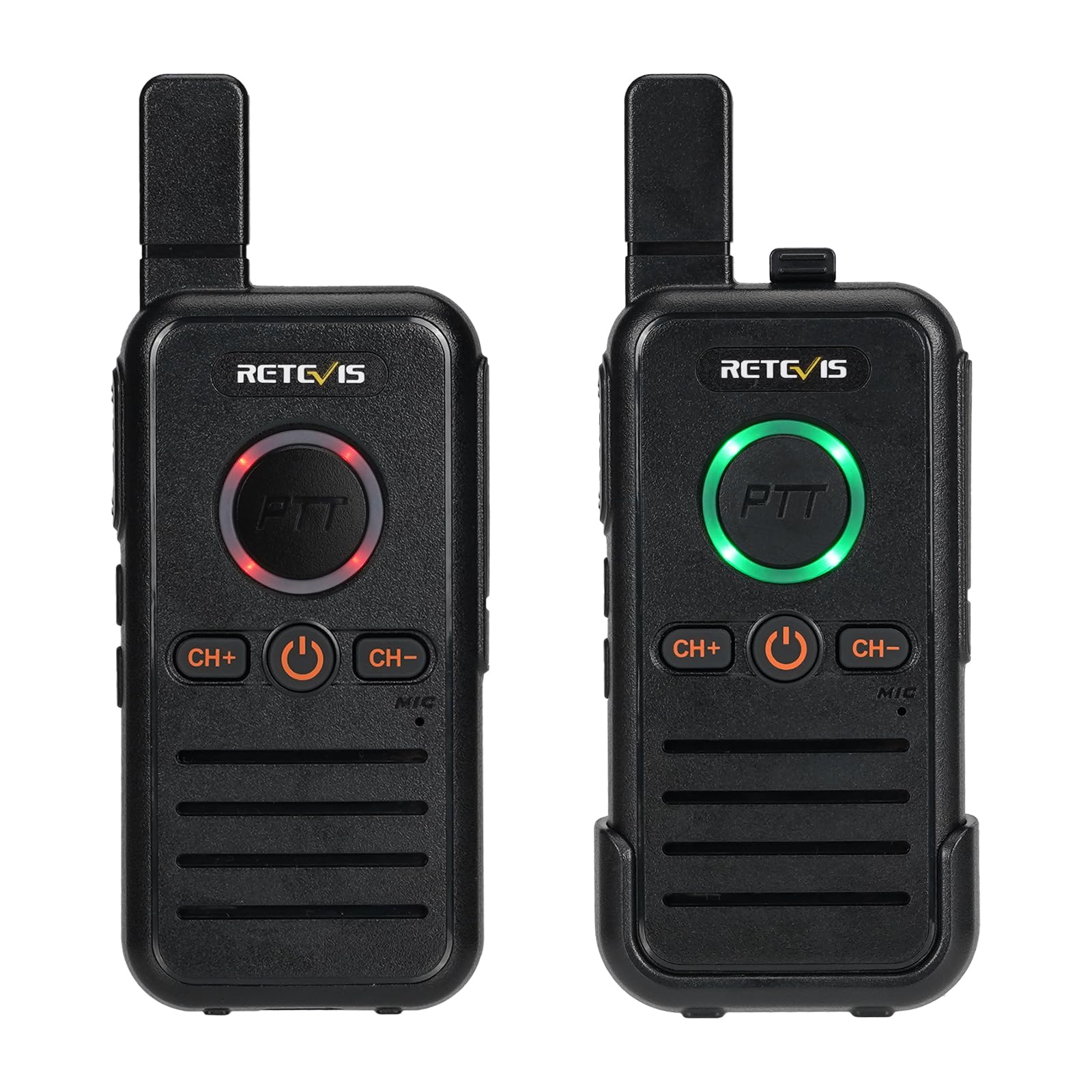

Figure 1: Retevis RB645 Walkie Talkie

2. Pake kontni

Anvan w itilize li, tanpri verifye si tout bagay yo prezan nan pake a:

• 2 x RB645 Walkie Talkies
• 2 x 1100 mAh Pil Li-ion
• 1 x 2-in-1 USB C Charging Cable
• 2 x Clips senti
• 2 x Lanyards
• 1 x Manyèl itilizatè milti-lang

Figure 2: Included accessories: two walkie talkies, two batteries, one USB-C charging cable, two belt clips, and two lanyards.

3. Pwodwi souview

The RB645 walkie talkie is designed for ease of use with essential communication features.

3.1 Karakteristik kle

• PMR446 License-Free Operation
• 16 chanèl
• Dual Push-to-Talk (PTT) Buttons
• VOX Hands-Free Function
• Fonksyon Alam Ijans
• Chèn Lock
• USB Kalite-C Chaje
• Konsepsyon kontra enfòmèl ant ak lejè

3.2 Kontwòl ak Fonksyon

Familyarize w avèk kontwòl prensipal yo:

• Bouton pouvwa/volim: Rotate to turn the radio on/off and adjust volume.
• Bouton PTT prensipal la: Peze epi kenbe pou transmèt, lage pou resevwa.
• Bouton PTT bò kote a: An alternative PTT button for convenience.
• Channel Up (CH+): Peze pou ogmante nimewo chanèl la.
• Channel Down (CH-): Peze pou diminye nimewo chanèl la.
• Side Button 1: Long press to activate/deactivate VOX function.
• Side Button 2: Long press to activate the emergency alarm.
• USB-C chaje pò: Pou chaje aparèy la.

Figure 3: The RB645 features a dual PTT button design for flexible operation.

4. Enstalasyon

4.1 Enstalasyon batri

The RB645 walkie talkie comes with a built-in detachable Li-ion battery. Ensure the battery is securely seated in its compartment before first use.

Figure 4: The RB645 features a built-in detachable battery for easy replacement or charging.

4.2 Chaje batri a

Before initial use, fully charge the battery. Connect the provided USB Type-C charging cable to the walkie talkie's charging port and to a compatible USB power source (e.g., power bank, PC, car charger, wall adapter). The charging indicator will show the charging status.

• Kapasite batri: 1100mAh
• Tan sibstiti: Jiska 30 èdtan
• Tan travay: Jiska 10 èdtan

Figure 5: The walkie talkie charges conveniently via a USB Type-C port.

4.3 Attaching the Belt Clip and Lanyard

Attach the belt clip to the back of the walkie talkie for easy carrying. The lanyard can be attached for additional security.

Figure 6: The integrated back clip allows for secure attachment to clothing or bags.

5. Operasyon Enstriksyon

5.1 Pouvwa pou limen/etenn ak ajisteman volim

1. Pou limen l, vire bouton Pouvwa/Volim nan nan sans zegwi mont lan jiskaske ou tande yon klik.
2. Pou etenn li, vire bouton Pouvwa/Volim nan nan sans kontrè ak zegwi mont lan jiskaske ou tande yon klik.
3. Ajiste volim nan wotasyon bouton Pouvwa / Volim lan.

5.2 Seleksyon chanèl

The RB645 has 16 PMR446 channels. To select a channel:

1. Peze a CH+ button to move to the next channel.
2. Peze a CH- button to move to the previous channel.
3. Ensure all radios intended for communication are set to the same channel.

5.3 Transmisyon ak Resepsyon (PTT)

1. To transmit, press and hold either the main PTT button or the side PTT button. Speak clearly into the microphone.
2. Lage bouton PTT a pou sispann transmisyon an epi retounen nan mòd resepsyon.

5.4 Fonksyon men lib VOX

The VOX function allows you to transmit by speaking into the microphone without pressing the PTT button.

1. To activate VOX, long press Bouton bò 1.
2. To deactivate VOX, long press Bouton bò 1 ankò.

Figure 7: The VOX function allows for hands-free communication, improving efficiency.

5.5 Emergency Alarm Function

In an emergency, you can activate an alarm to alert other users.

1. To activate the emergency alarm, long press Bouton bò 2.
2. The radio will emit a loud alarm sound locally and transmit an alarm signal to other radios on the same channel.
3. To deactivate the alarm, briefly press any button or power cycle the radio.

Figure 8: The emergency call feature provides remote and local alarm capabilities.

5.6 Chèn Lock

The channel lock feature prevents accidental channel changes.

1. To activate channel lock, consult your specific device's manual for the exact button combination or setting.
2. Once activated, channel changes will be disabled until unlocked.

Figure 9: Channel lock prevents unintended channel changes during use.

6. Antretyen

To ensure optimal performance and longevity of your Retevis RB645 walkie talkie, follow these maintenance guidelines:

• Netwayaj: Sèvi ak yon mou, damp twal pou netwaye sifas radyo a. Pa sèvi ak pwodui chimik ki agresif oswa pwodui netwayaj abrazif.
• Swen batri: Evite chaje batri a twòp oswa dechaje l nèt. Sere radyo a ak batri a nan yon kote ki fre epi sèk lè w pa itilize l pou yon bon bout tan.
• Depo: Store the walkie talkie in a dry environment, away from direct sunlight and extreme temperatures.
• Rezistans dlo: The device is rated IPX4 water-resistant, meaning it is protected against splashing water from any direction. Do not submerge the device in water.

Figure 10: The RB645 provides clear sound quality, even in noisy environments, due to its noise squelch function.

NAN. Depanaj

If you encounter issues with your RB645 walkie talkie, refer to the following common problems and solutions:

8. Espesifikasyon

9. Garanti ak sipò

Retevis offers a comprehensive warranty and support policy for the RB645 walkie talkie:

• Peryòd garanti: 2 years for the radio body and 1 year for accessories.
• Règleman retounen: 30 days for returns without reason.
• Sèvis apre garanti: Maintenance services are available beyond the warranty period; applicable costs will be charged to the buyer.
• Kontakte sipò: For any inquiries or support needs, please contact us through Amazon. We aim to respond within 12 hours.
