Shark Vertex DuoClean PowerFins Upright Vacuum AZ2001AMZ Instruction Manual

Entwodiksyon

This manual provides essential information for the safe and effective operation and maintenance of your Shark Vertex DuoClean PowerFins Upright Vacuum, Model AZ2001AMZ. Please read all instructions carefully before use and retain this manual for future reference.

The Shark Vertex vacuum is designed for powerful cleaning across various floor types, featuring DuoClean PowerFins technology, a self-cleaning brushroll, and Powered Lift-Away functionality for versatile cleaning.

Ki sa ki nan bwat la

Your Shark Vertex DuoClean PowerFins Upright Vacuum package includes the following components:

• Inite Aspiratè Vètikal Shark Vertex
• Duster Crevice Zouti
• Bèt kay Multi-Zouti

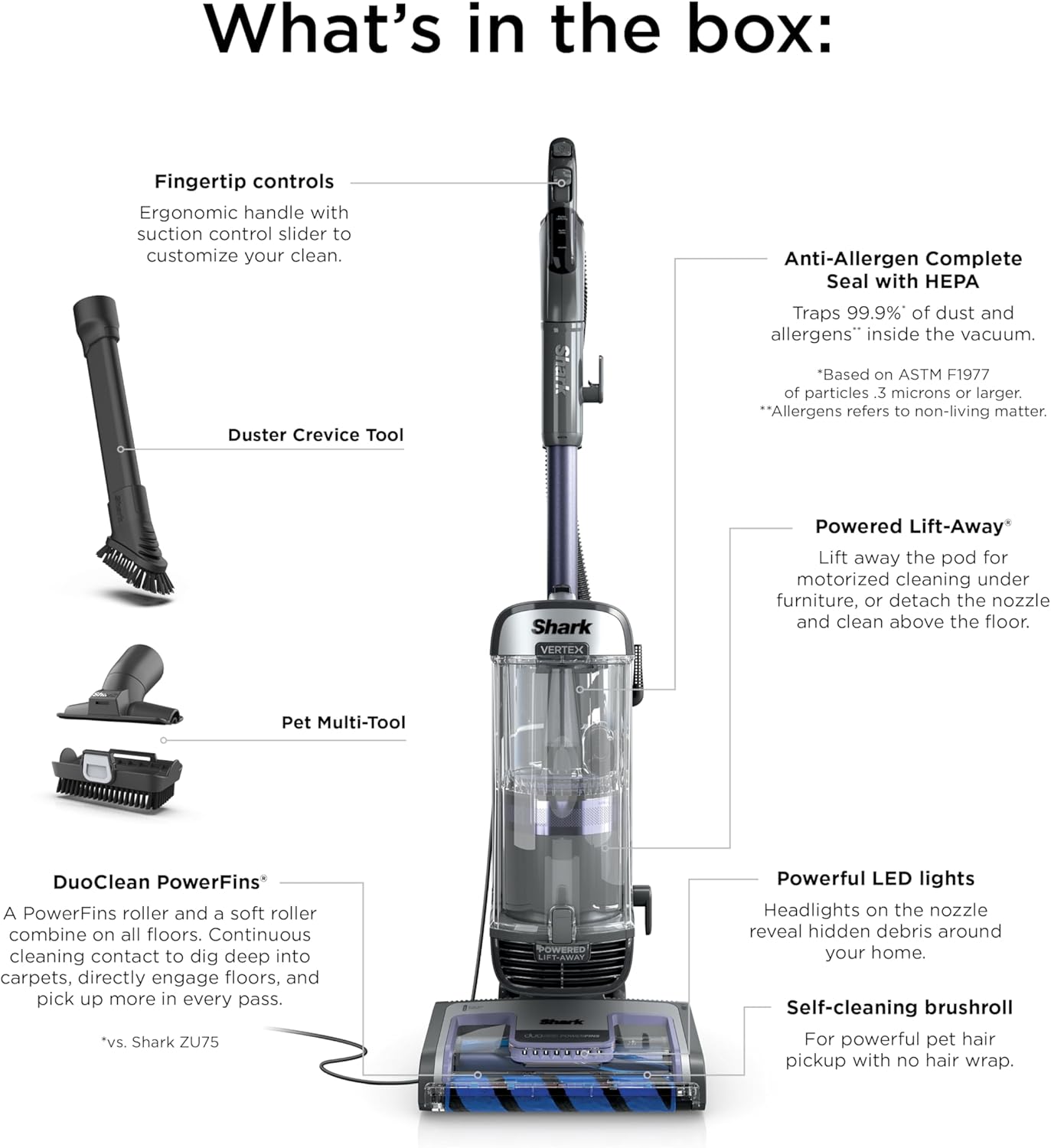

Image: All components included with the Shark Vertex DuoClean PowerFins Upright Vacuum, including the main unit, duster crevice tool, and pet multi-tool.

Enstalasyon ak Asanble

Assembly of your Shark Vertex vacuum is straightforward. Ensure all components listed in the 'What's in the Box' section are present before beginning.

1. Mete baton an nan bouch la jiskaske li fè yon klik byen fèm nan plas li.
2. Glise manch lan sou tèt baton an jiskaske li fè yon klik.
3. Attach the hose to the back of the vacuum pod by aligning the tabs and pushing until it clicks.
4. Store the Duster Crevice Tool and Pet Multi-Tool on the accessory posts located on the vacuum pod.

Enstriksyon Operasyon

Seleksyon pouvwa ak mòd

Plug the power cord into an electrical outlet. The vacuum features fingertip controls for power and surface settings:

• Anviwònman planche di: Pou planche ki pa gen anyen ak tapi delika. Woulo bwòs yo vire dousman.
• Carpet/Low Pile Setting: For low-pile carpets. The brushrolls spin faster.
• Thick Carpet/Area Rug Setting: For high-pile carpets and thicker area rugs. Provides maximum suction and brushroll speed.

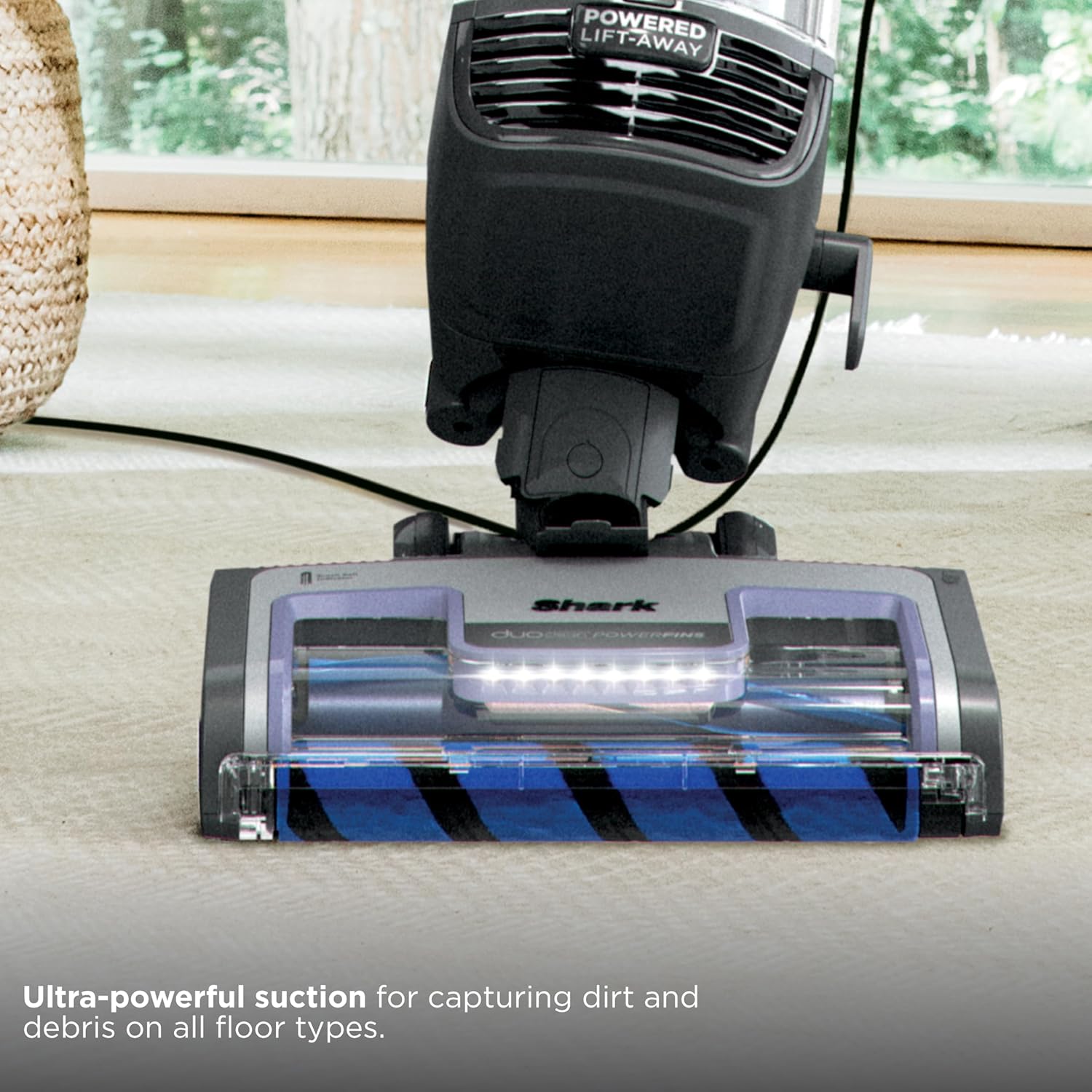

Image: The Shark Vertex vacuum actively cleaning a carpeted surface, demonstrating its powerful suction and brushroll action.

DuoClean PowerFins Technology

The DuoClean PowerFins nozzle features two brushrolls: a soft front roller and a PowerFin roller. This design ensures continuous contact with both carpets and hard floors, effectively picking up fine dust, large debris, and embedded dirt without leaving gaps.

Imaj: Yon imaj detaye view of the DuoClean PowerFins nozzle, highlighting the soft front roller and the flexible PowerFin brushroll designed for optimal debris pickup.

Mòd Lift-Away ki mache ak kouran

For cleaning under furniture or in hard-to-reach areas, press the Lift-Away button to detach the pod from the nozzle. The motorized nozzle remains active, allowing for deep cleaning in tight spaces.

Image: The vacuum pod detached in Powered Lift-Away mode, allowing the motorized nozzle to clean effectively under a sofa.

Sèvi ak atachman

The included attachments enhance the versatility of your vacuum:

• Zouti Duster Crevice: Ideal for cleaning tight spaces, corners, and along edges. Can be used with the wand for extended reach.
• Zouti Milti-Zouti pou Bèt Kay: Fèt pou ranmase pwal bèt ak debri ki difisil pou retire sou amebleman, eskalye ak lòt sifas.

Image: A person using the Duster Crevice Tool attached to the wand to clean high, hard-to-reach areas.

Image: The Pet Multi-Tool being used to effectively remove pet hair from a sofa cushion.

Image: A person cleaning carpeted stairs by carrying the Lift-Away pod and using an attachment with the hose.

Antretyen

Vide gode pousyè a

Empty the dust cup after each use or when debris reaches the MAX FILL line. The 1-quart capacity dust cup is designed for easy, mess-free emptying.

1. Peze lage gode pousyè a epi retire gode pousyè a nan kapsil aspirè a.
2. Kenbe gode pousyè a anlè yon bwat fatra epi peze lage ki anba a pou ouvri kouvèti ki anba a.
3. Tap gently to empty contents. Close the flap firmly until it clicks.

Image: A person demonstrating how to easily empty the XL dust cup of the Shark Vertex vacuum into a waste receptacle.

Netwaye filtè

Regularly clean the pre-motor and post-motor (HEPA) filters to maintain optimal suction. Rinse filters with water only and allow them to air dry completely before reinstalling. Refer to the full instruction manual for specific cleaning schedules.

The Anti-Allergen Complete Seal system, combined with the HEPA filter, traps 99.9% of dust and allergens inside the vacuum.

Image: A diagram illustrating the Shark Anti-Allergen Complete Seal system, which captures 99.99% of dust and allergens with its HEPA filter.

Brushroll pwòp tèt ou netwayaj

The self-cleaning brushroll is designed to prevent hair wrap, making it ideal for homes with pets. Periodically check the brushroll for any debris that may have accumulated and remove it if necessary.

Image: A visual comparison showing a standard brushroll tangled with hair versus the self-cleaning brushroll with no hair wrap.

Depanaj

If your vacuum is not performing as expected, consult the following common issues before contacting customer support:

• Pa gen pouvwa: Asire w kòd kouran an byen branche nan yon priz ki fonksyone. Tcheke disjonktè a.
• Redwi aspirasyon: Empty the dust cup. Clean all filters (pre-motor and HEPA). Check for blockages in the hose, nozzle, or attachments.
• Woulo bwòs la pa ap vire: Ensure the vacuum is upright and the power is on. Check for obstructions in the brushroll area. Ensure the correct floor setting is selected.
• Vacuum Turns Off: Aspiratè a ka twò chofe. Etenn aspiratè a, debranche li, epi kite l refwadi pou omwen 45 minit. Retire tout blokaj epi netwaye filtè yo anvan ou rekòmanse li.

Espesifikasyon

Garanti ak sipò

Enfòmasyon sou Garanti

Your Shark Vertex DuoClean PowerFins Upright Vacuum (Model AZ2001AMZ) is covered by a 5-year limited warranty. Please retain your purchase receipt and all documentation for warranty claims. For full terms and conditions, refer to the warranty card included with your product or visit the official Shark websit.

Sipò pou Kliyan

For further assistance, replacement parts, or to register your product, please contact Shark Customer Service. Contact details can typically be found on the product packaging or the official Shark websit.
