Elecsung M27 Smart Bathroom Mirror TV Instruction Manual

1. Pwodwi souview

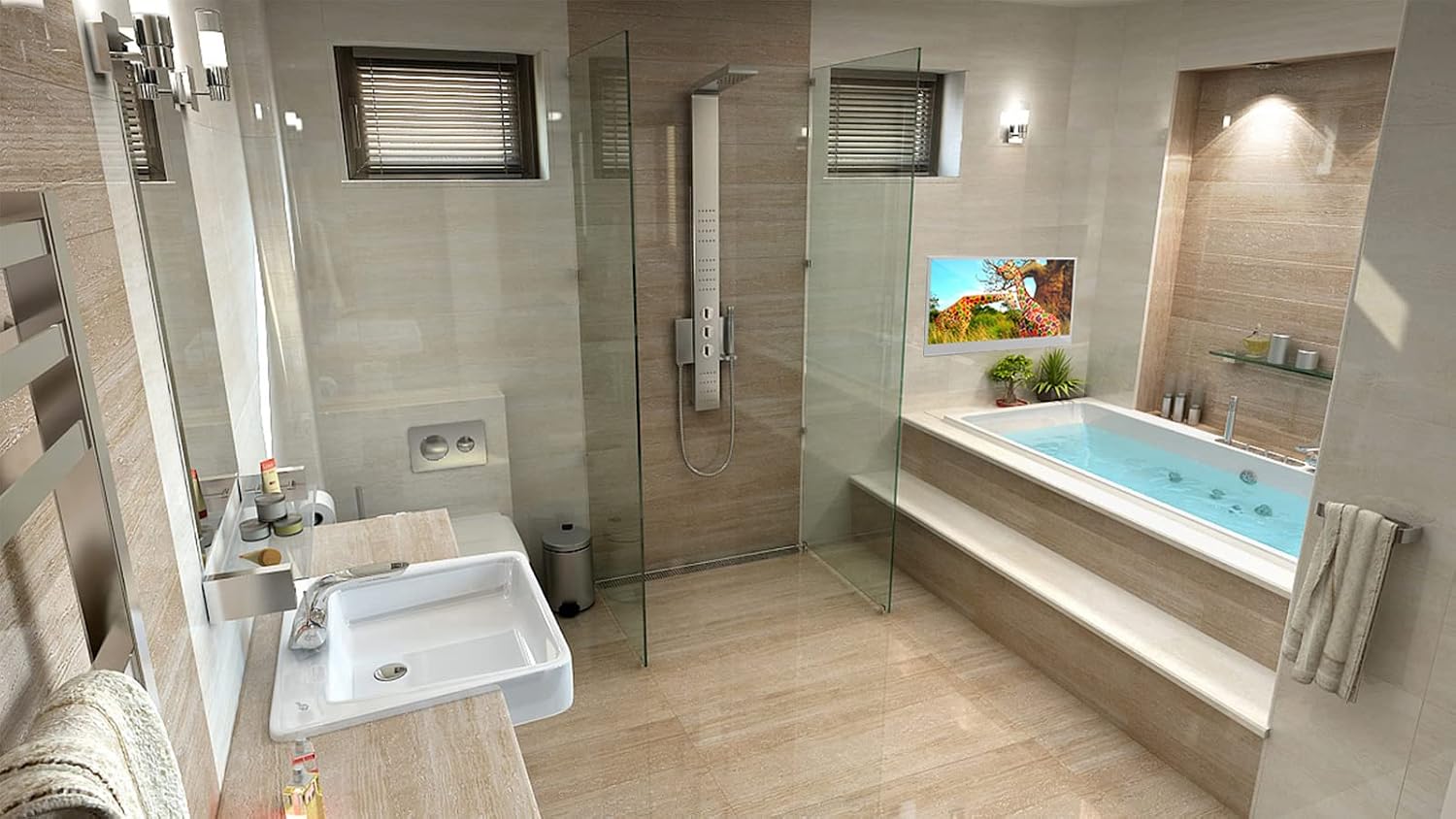

The Elecsung M27 Smart Bathroom Mirror TV is designed for environments where moisture is present, such as bathrooms and kitchens. It functions as a television when powered on and transforms into a mirror when turned off. This unit features an IP66 waterproof rating, ensuring durability and safety in wet conditions. It operates on an Android 11.0 system, providing access to various smart TV functionalities and applications.

Karakteristik kle yo enkli:

• Magic Mirror TV Functionality: Displays TV programs when on, acts as a mirror when off.
• Evalyasyon ki enpèmeyab IP66: Suitable for installation in bathrooms, hotels, and kitchens.
• Smart Full HD LED TV: Runs on Android 11.0, offering access to channels without an external TV box.
• Integrated HDTV (ATSC) Tuner: Allows direct reception of over-the-air digital television broadcasts.
• Built-in Wi-Fi & Bluetooth: For seamless connectivity and external device pairing.
• Pre-installed Applications: Includes Google Chromecast, Google Chrome, YouTube, and Netflix.
• Pouvwa versatile: Operates on 12 Volt DC and includes 240V mains adaptors.
• Oratè entegre: Two high-quality speakers for clear audio.

2. Ki sa ki nan bwat la

Upon unboxing your Elecsung M27 Smart Bathroom Mirror TV, please ensure all the following components are present:

• Elecsung M27 Smart Bathroom Mirror TV Unit
• Kontwòl Remote
• Batri pou kontwòl Remote
• Power Adaptor (for 240V mains)
• Embedded Bracket (for in-wall installation)
• Wall Bracket (for on-wall installation)
• Enstriksyon Enstalasyon

3. Enstalasyon ak Enstalasyon

The Elecsung M27 TV offers flexible installation options: in-wall, on-wall, or on-desk. Choose the method best suited for your space. Ensure proper power and signal circuits are available at your chosen installation location.

3.1. Dimansyon

Before installation, verify the dimensions to ensure proper fit and clearance.

• Unit Size (WxHxD): 614mm x 375mm x 51mm (24.2"W x 14.76"H x 2"D)
• Recess Dimensions for In-wall (WxHxD): 575mm x 276mm x 30mm (22.63"W x 10.9"H x 1.2"D)

3.2. Opsyon enstalasyon yo

Three optional installation methods are provided:

Option 1: In-wall with Embedded Bracket

1. Create an opening in the wall according to the Embedded Bracket outlines. Ensure sufficient space for cables and the adapter.
2. Set up power and signal circuits and the outlet.
3. Place the Embedded Bracket into the recess and use pilot holes to drill into the wall on sides or back.
4. Secure the raw plugs into the drilled holes and screw the Embedded Bracket into position.
5. Organize the cables and offer the TV up to the Embedded Bracket that is fixed within the wall.
6. Align the 4 pilot holes on the back of the TV case with the 4 metal lugs on the Embedded Bracket and gently push the TV into place.

Option 2: On-wall with Embedded Bracket

1. Drill holes in the chosen area of the wall according to the Embedded Bracket outlines.
2. Place the raw plugs into the holes and screw the Embedded Bracket into position so it is attached to the wall.
3. Set up power and signal circuit and the outlet.
4. Simply offer the TV up to the Embedded Bracket that is fixed on the wall.
5. Align the 4 pilot holes on the back of the TV case with the 4 metal lugs on the Embedded Bracket and gently push the TV into place.

3.3. Connections and Interface

The TV features a variety of input and output ports for connecting external devices.

4. Operasyon Enstriksyon

The Elecsung M27 TV can be operated using the included remote control or its integrated touch controls.

4.1. Fonksyon kontwòl Remote

Familiarize yourself with the remote control buttons for optimal use.

1. Limen/Etenyen: Limen oswa etenn televizyon an.
2. Bèbè: Turns audio output on or off.
3. Information Display / Cursor Pointer: Displays current channel and program information. Press and hold for 2 seconds to activate cursor, then use directional buttons to move.
4. -/-- Digit: For 1 or 2 digit channel number input.
5. Son Mode: Select sound modes (Standard, Movie, Music, User).
6. Mòd dòmi: Designates power off after a specified time.
7. Meni prensipal: Launches the On Screen Display menu.
8. Kay Menu: Returns to the Home page.
9. Leve: Navigation up.
10. Left / Rewind: Navigation left or rewind media.
11. Right / Fast Forward: Navigation right or fast forward media.
12. OK / Pause: Confirms selection or pauses media.
13. Desann: Navigation down.
14. Antre: Launches input source menu.
15. Sòti: Closes the On Screen Display menu.
16. Kle nimerik: Numerical selection for channels and settings.
17. Chèn +/-: Chanje chanèl monte oswa desann.
18. Volim +/-: Ajiste volim monte oswa desann.
19. Remonte: Rembobine lekti medya a.
20. Vit Avant: Avanse rapidman lekti medya yo.
21. Efase: Deletes items in menus.
22. Sote: Skips items.
23. Edit: Edits selected items.
24. Deplase: Moves selected items.
25. Sote Retounen: Sote bak.
26. Ale pi devan: Sote pi devan.

4.2. Karakteristik televizyon entelijan

The Android 11.0 system provides a user-friendly interface for accessing various applications and streaming services. Connect to Wi-Fi via the settings menu to enable internet-based features. Use the pre-installed apps like YouTube and Netflix, or download others from the app store.

4.3. Bluetooth Koneksyon

Pair Bluetooth-enabled external speakers or headphones for an enhanced audio experience. Navigate to the Bluetooth settings in the main menu to discover and connect devices.

5. Antretyen

To ensure the longevity and optimal performance of your Elecsung M27 Smart Bathroom Mirror TV, follow these maintenance guidelines:

• Netwayaj: Sèvi ak yon mou, damp cloth to clean the mirror surface. Avoid abrasive cleaners or harsh chemicals that could damage the finish or waterproof seal.
• Ekspozisyon dlo: While the TV is IP66 waterproof, avoid directing high-pressure water jets directly at the unit. Ensure all port covers (if applicable) are securely closed.
• Mizajou lojisyèl: Periodically check for and install system updates to ensure the TV operates with the latest features and security patches.
• Vantilasyon: Ensure adequate ventilation around the TV, especially for in-wall installations, to prevent overheating.

NAN. Depanaj

If you encounter issues with your Elecsung M27 TV, refer to the following common troubleshooting steps:

• Pa gen pouvwa: Check if the power cable is securely connected and the power outlet is functioning. Ensure the power adapter is correctly connected.
• Pa gen imaj/son: Verify the correct input source is selected. Check all cable connections (HDMI, antenna, AV). For no sound, check volume levels and mute status.
• Kontwòl Remote pa travay: Replace batteries. Ensure there are no obstructions between the remote and the TV's IR receiver.
• Pwoblèm koneksyon Wi-Fi: Restart your router and the TV. Re-enter Wi-Fi password in settings. Ensure the TV is within range of your Wi-Fi network.
• Apps Not Loading: Check internet connection. Clear app cache or reinstall the app if necessary. Ensure sufficient storage space.
• Mirror Function Not Working: Ensure the TV is powered off. If the TV is on but displaying a black screen, it might be in standby mode or an input without a signal.

For persistent issues, please contact Elecsung customer support.

7. Espesifikasyon teknik

8. Videyo pwodwi yo

Watch these official videos for a visual guide to the Elecsung M27 Smart Bathroom Mirror TV's features and installation.

9. Garanti ak sipò

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official Elecsung websit la. Kenbe resi acha ou kòm prèv acha pou nenpòt reklamasyon garanti.
