Amazon Basics Clamber Pro 5-Step Foldable Ladder User Manual

1. Pwodwi souview

The Amazon Basics Clamber Pro 5-Step Foldable Ladder is designed for household and light commercial use, providing a stable and secure platform for reaching elevated areas. Constructed from industrial-grade aluminum, this ladder features a double-locking pro hinge technology for enhanced stability and a firm grip on each step. Its lightweight and foldable design allows for convenient storage and portability.

Enfòmasyon enpòtan sou sekirite: Before using this product, please read this entire manual carefully. Failure to follow these instructions can result in serious injury or property damage. Keep this manual for future reference.

Figure 1: Amazon Basics Clamber Pro 5-Step Foldable Ladder in its open, ready-to-use position. The ladder is silver with blue accents on the top handle, steps, and feet.

Karakteristik kle:

• Ultra-Sturdy Construction: Industrial-grade aluminum steps ensure superior performance and durability.
• Double-Locking Pro Hinge Technology: Provides dual protection on each side to prevent instability during use.
• Firm Grip Steps: Each step is serrated for secure footing, and the ultra-wide top platform is ribbed for steadiness.
• Sekirite Amelyore: Features a handgrip for easier climbing and a nylon webbing belt for additional structural solidity.
• Pòtab ak pliable: Lightweight design allows for compact storage and easy transport.
• Pwoteksyon etaj: Equipped with PVC shoes to prevent scratches on floor surfaces.

2. Enstriksyon Enstalasyon

Proper setup is crucial for safe ladder operation. Always ensure the ladder is fully extended and stable before climbing.

2.1 Unfolding the Ladder

1. Place the folded ladder on a flat, stable surface.
2. Grasp the top handle and carefully pull the front and rear sections apart until the ladder is fully extended.
3. Ensure that the double-locking pro hinges on both sides are fully engaged and locked into position. You should hear a click or feel the mechanism secure.
4. Verify that the nylon webbing belt is taut and properly positioned between the ladder legs, providing additional stability.

Figure 2: Detail of the double-locking hinge mechanism and the stabilizing nylon webbing belt, which must be fully engaged for safe use.

2.2 Placement and Stability Check

1. Position the ladder on a firm, level, and non-slippery surface. Avoid placing it on uneven ground, loose debris, or wet surfaces.
2. Ensure all four PVC shoes are in full contact with the ground. These shoes are designed to prevent slipping and protect your floors.
3. Gently shake the ladder to confirm it is stable and does not wobble. If any instability is detected, re-adjust its position or inspect for proper hinge engagement.

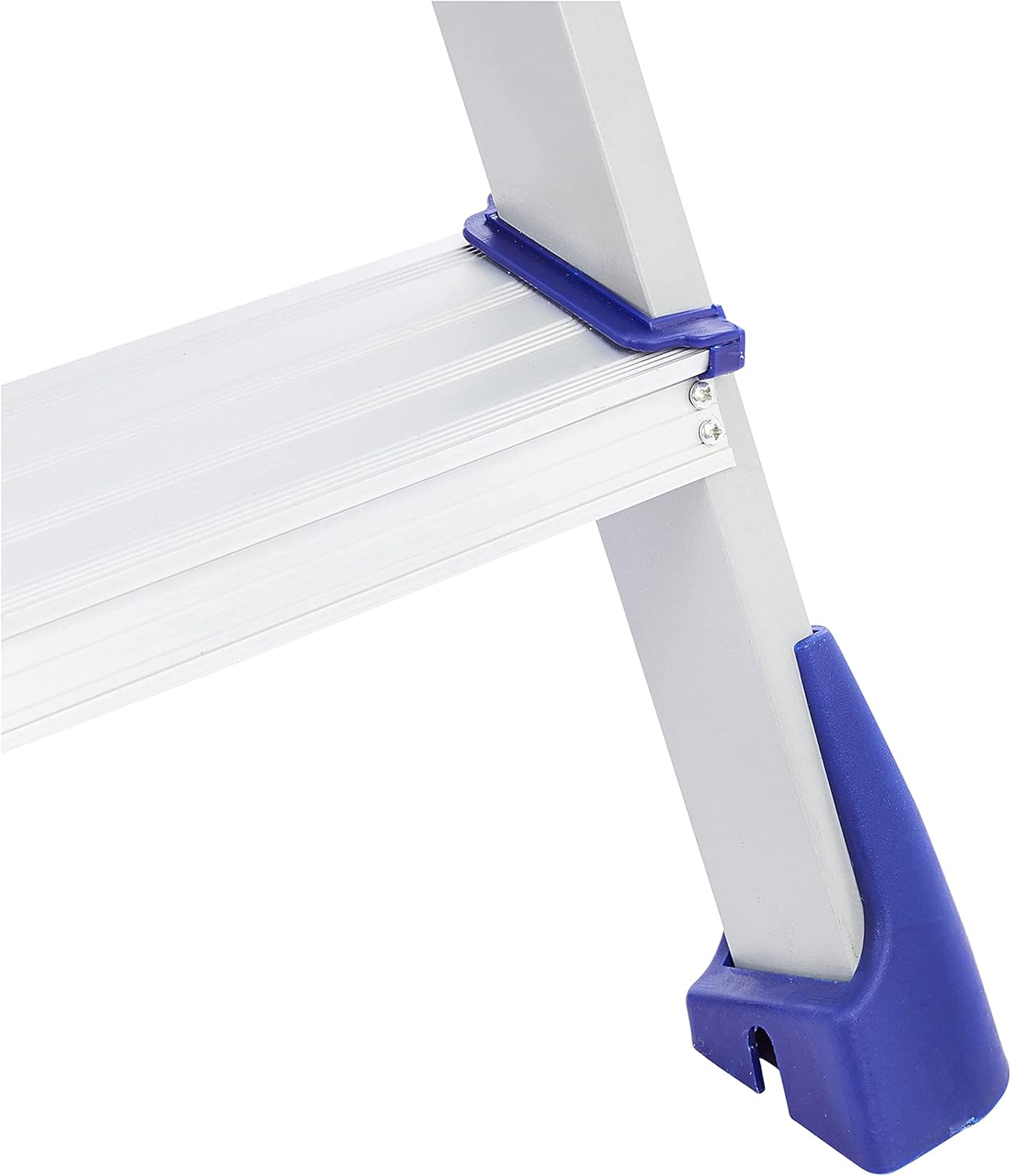

Figi 3: Close-up view of the blue PVC foot pads, designed to provide stability and protect floor surfaces from scratches.

3. Operasyon Enstriksyon

Follow these guidelines for safe and effective use of your Amazon Basics Clamber Pro ladder.

3.1 Règ jeneral sekirite yo

• One Person Only: Nechèl sa a fèt pou itilize pa yon sèl moun alafwa.
• Face the Ladder: Toujou fè fas a nechèl la lè w ap monte oswa desann.
• Three Points of Contact: Kenbe twa pwen kontak (de men ak yon pye, oubyen de pye ak yon men) ak nechèl la tout tan.
• Kapasite pwa: Do not exceed the maximum load capacity of 120 kilograms (approximately 264 pounds). This includes the user and any tools or materials.
• Evite twòp: Do not overreach or lean too far to the side while on the ladder. Reposition the ladder closer to your work area instead.
• Top Platform Use: The top platform is designed for standing. Ensure your feet are fully on the platform and maintain balance. Avoid placing heavy tools or objects on the top platform that could compromise stability.

Figure 4: The ribbed top platform provides a secure standing surface. Ensure proper footing when using this step.

3.2 Climbing and Descending

1. Ensure your shoes are clean and have good traction.
2. Use the handgrip for support when ascending or descending.
3. Step onto each rung firmly and deliberately.
4. Do not carry items that prevent you from maintaining a firm grip or balance. Use a tool belt or have someone hand you items.

4. Antretyen

Antretyen regilye asire lonjevite ak operasyon an sekirite nechèl ou a.

4.1 Netwayaj

• Siye nechèl la ak piblisiteamp twal ak detèjan twò grav jan sa nesesè.
• Avoid using abrasive cleaners or solvents that could damage the aluminum finish or plastic components.
• Ensure the ladder is completely dry before folding and storing.

4.2 Enspeksyon

Before each use, perform a quick visual inspection:

• Check all steps for damage, cracks, or excessive wear.
• Verify that the double-locking hinges are functioning correctly and engage securely.
• Inspect the nylon webbing belt for fraying or damage.
• Ensure the PVC shoes are intact and not worn out, as this can affect stability.
• Do not use the ladder if any part is damaged or appears to be malfunctioning.

4.3 Depo

When not in use, fold the ladder for compact storage:

1. Ensure no one is on the ladder and it is on a stable surface.
2. Disengage the locking mechanisms (if applicable, by pressing release buttons or levers).
3. Gently push the front and rear sections together until the ladder is fully folded.
4. Store the folded ladder in a dry, secure location away from extreme temperatures and direct sunlight.

Figure 5: The Amazon Basics Clamber Pro ladder shown in its compact, folded state, ready for storage.

NAN. Depanaj

This section addresses common issues you might encounter with your ladder.

5.1 Ladder Feels Unstable or Wobbles

• Tcheke sifas la: Ensure the ladder is placed on a firm, level, and non-slippery surface. Uneven ground is a common cause of instability.
• Hinge Engagement: Verify that both double-locking pro hinges are fully engaged and locked. If not, refold and unfold the ladder, ensuring the mechanisms click into place.
• Kousinen pou pye: Inspect the PVC shoes. Ensure all four are present, undamaged, and making full contact with the ground. Replace worn or missing foot pads if necessary.
• Surcharge: Confirm that the total weight on the ladder (user + tools) does not exceed the 120 kg load capacity.

5.2 Difficulty Folding or Unfolding

• Obstak: Check for any debris, dirt, or foreign objects lodged in the hinge mechanisms or between the ladder sections.
• Hinge Release: Ensure any release buttons or levers for the hinges are being pressed correctly (if applicable for your specific model).
• Fòs Dous: Apply steady, even pressure. Do not force the ladder, as this could cause damage. If resistance persists, inspect the hinges for damage.

6. Espesifikasyon

Detailed technical specifications for the Amazon Basics Clamber Pro 5-Step Foldable Ladder.

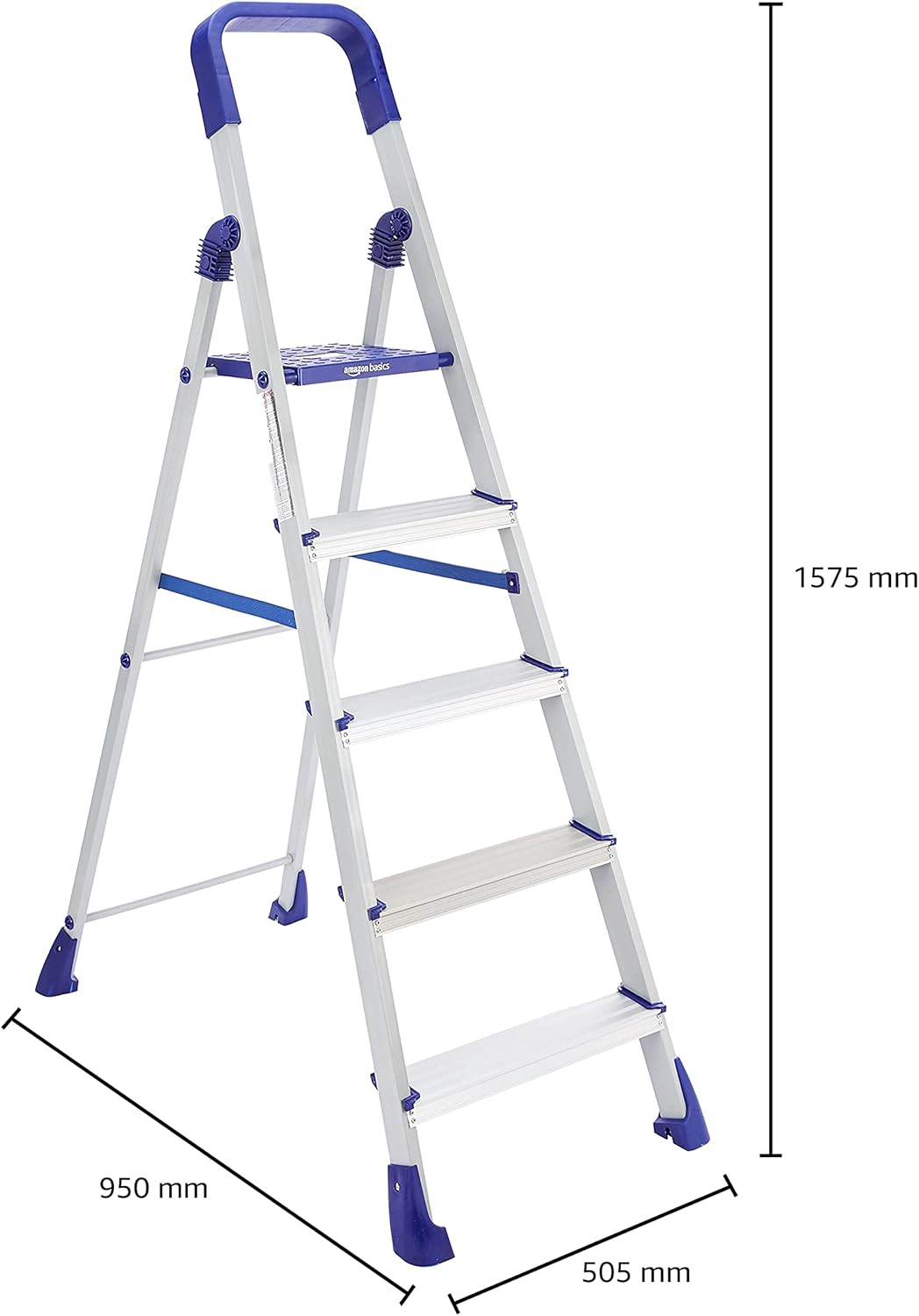

Figure 6: Dimensional diagram of the Amazon Basics Clamber Pro 5-Step Foldable Ladder, indicating height, width, and depth.

7. Enfòmasyon sou Garanti

This Amazon Basics product is covered by a manufacturer's warranty. For specific details regarding the warranty period, coverage, and terms, please refer to the documentation included with your purchase or visit the official Amazon Basics websit la. Kenbe prèv acha ou pou reklamasyon garanti.

8. Sipò pou Kliyan

If you have any questions, require assistance, or need to report an issue with your Amazon Basics Clamber Pro 5-Step Foldable Ladder, please contact Amazon Basics customer support. You can typically find contact information on the Amazon website under the 'Help' or 'Customer Service' sections, or through your order details.

Please have your product model number (ClamberPro-5steps-Blue) and purchase date ready when contacting support.
