1. Entwodiksyon
The Titan Mobile Hotspot is a portable 4G LTE WiFi device designed to provide reliable internet access on the go. Featuring advanced Cloud SIM technology, it eliminates the need for a physical SIM card, offering seamless global coverage and rapid carrier switching. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your Titan Mobile Hotspot.
2. Pwodwi Features
- Rapid Carrier Switch Technology: Automatically connects to the strongest available network.
- Cloud SIM Technology: No physical SIM card required for operation.
- Koneksyon segondè: Supports up to 10 connected devices simultaneously.
- Ekran tactile entwitif: 2.4-inch multi-screen menu for easy data usage monitoring and settings adjustment.
- Pwolonje lavi batri: Bay jiska 10 èdtan itilizasyon kontinyèl.
- Qualcomm Chipset: Ensures stable and efficient performance.
- Kouvèti Nasyonal: Optimized for major carriers to provide broad internet access.
Figi 2.1: Devan view of the Titan Mobile Hotspot, showing its compact design and interactive touchscreen interface.
Figure 2.2: Various angles of the Titan Mobile Hotspot, highlighting its sleek profile ak kote pò yo.
Figure 2.3: Close-up of the side of the device, detailing the power button and charging port.
Figure 2.4: Illustration of the optional physical SIM card slot, for users who prefer to use their own SIM.
Figure 2.5: The Titan Mobile Hotspot connected to its charging cable.

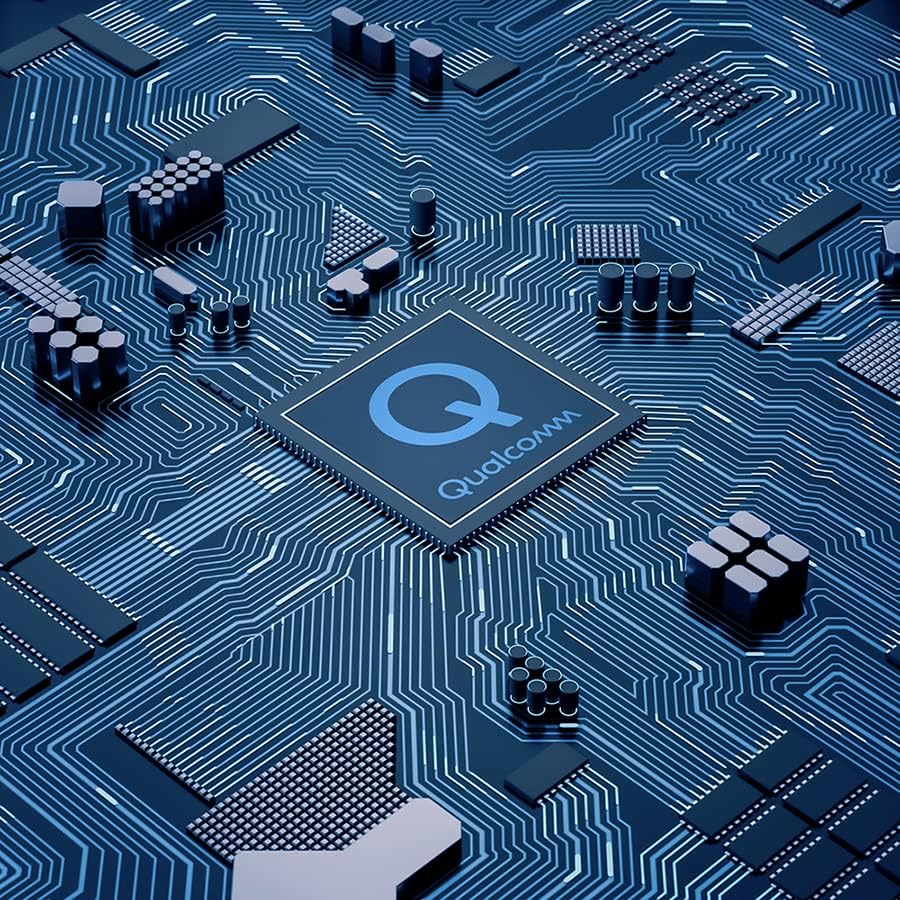

Figure 2.6: The Qualcomm chipset, a key component ensuring the device's performance.
Figure 2.7: The device's touchscreen interface, providing access to various settings and monitoring tools.
Figure 2.8: A visual representation of the Titan Mobile Hotspot's extensive global coverage.
Videyo pwodwi a finiview
Videyo 2.1: Yon ofisyèl finiview of the Titan 4G Mobile Hotspot, demonstrating its features and benefits.
3. Enstalasyon
3.1 Premye chaj
Before first use, fully charge your Titan Mobile Hotspot using the provided USB-C cable and a compatible power adapter. The device's screen will indicate charging status.
3.2 Limen/Etenyen
- Pou limen: Peze epi kenbe bouton pouvwa a ki sitiye sou kote aparèy la jiskaske ekran an limen.
- Pou etenn: Peze epi kenbe bouton pouvwa a jiskaske yon opsyon pou etenn parèt sou ekran an, answit konfime.
3.3 Connecting to the Internet (Cloud SIM)
The Titan Mobile Hotspot utilizes Cloud SIM technology, meaning no physical SIM card is required for basic operation. Upon powering on, the device will automatically detect and connect to the strongest available network. Ensure you have an active data plan associated with your device for internet access.
3.4 Konekte Aparèy ou yo
- On the Titan Hotspot's touchscreen, navigate to the 'Connections' or 'Wi-Fi Info' section to find the Wi-Fi Network Name (SSID) and Password.
- On your laptop, smartphone, tablet, or other Wi-Fi enabled device, search for available Wi-Fi networks.
- Select the Titan Hotspot's SSID from the list.
- Antre modpas Wi-Fi a lè w mande w.
- Your device should now be connected to the internet through the Titan Hotspot.
4. Operasyon Enstriksyon
4.1 Navigating the Touchscreen Menu
The 2.4-inch touchscreen allows you to access various functions and monitor your device. Swipe left or right to navigate through different menu screens. Tap on icons to select options.
- Koneksyon: View connected devices and manage Wi-Fi settings.
- Kòd QR: Scan to quickly connect devices without manually entering the password.
- Optimizasyon Rezo: Allows the device to scan and switch to the best available network for optimal performance.
- Flow Protection / Data Usage: Monitor your current data consumption and set usage alerts.
- Lang: Change the display language of the device.
4.2 Managing Data Plans
Data plans are managed through the SabertoothPro service. The Titan Hotspot operates on a pay-as-you-go model with no long-term contracts. Refer to the SabertoothPro website or customer support for details on available data plans and how to activate or recharge them.
5. Antretyen
5.1 Swen Batri
- Evite tanperati ekstrèm, ki ka diminye lavi batri a.
- Do not leave the device fully discharged for extended periods.
- Use only the provided charging cable or a certified USB-C cable.
5.2 Netwayaj
Siye aparèy la avèk yon twal mou, sèk, ki pa gen pousyè. Pa sèvi ak pwodui netwayaj likid oswa materyèl abrazif.
5.3 Mizajou lojisyèl
Periodically check for firmware updates through the device's settings menu or the SabertoothPro application/website. Keeping your device updated ensures optimal performance and security.
NAN. Depanaj
Pwoblèm komen ak solisyon:
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Pa gen koneksyon entènèt | No active data plan, poor signal, device error. | Check data plan status. Move to an area with better signal. Restart the hotspot. |
| Vitès Entènèt Ralanti | Siyal fèb, twòp aparèy konekte, konjesyon sou rezo a. | Move to an area with stronger signal. Disconnect unused devices. Try Network Optimization. |
| Aparèy pa Limen | Low battery, hardware issue. | Charge the device for at least 30 minutes. If still unresponsive, contact support. |
| Pa ka konekte ak Wi-Fi | Incorrect password, Wi-Fi disabled, device too far. | Verify Wi-Fi password. Ensure Wi-Fi is enabled on the hotspot. Move closer to the hotspot. |
If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact SabertoothPro Customer Support.
7. Espesifikasyon
| Karakteristik | Detay |
|---|---|
| Nimewo Modèl | OTRMT21V1 |
| Dimansyon pwodwi | 5 x 3 x 0.5 pous |
| Pwa atik | 8.1 ons |
| Kalite batri | 1 batri ityòm Polymère (enkli) |
| Continuous Use Battery Life | Jiska 10 èdtan |
| Wireless Kominikasyon Creole | 802.11n |
| Gwoup Gwoup Frekans | Doub-Band (2.4 GHz) |
| Max Konekte Aparèy | 10 |
| Aparèy konpatib | Laptop, Odinatè pèsonèl, Telefòn entelijan, Tablèt |
| Karakteristik espesyal | Sekirite Entènèt |
| Manifakti | OTRMOBILE |
8. Garanti ak sipò
8.1 Enfòmasyon sou Garanti
The Titan Mobile Hotspot comes with a manufacturer's warranty. Please refer to the warranty card included with your product or visit the official SabertoothPro websit la pou wè tèm ak kondisyon garanti detaye yo.
8.2 Sipò pou Kliyan
For technical assistance, data plan inquiries, or any other support needs, please contact SabertoothPro customer service. You can find contact information on the official SabertoothPro website or through the support section of your device's interface.
