ANENG AN101 Digital Multimeter User Manual

1. Enfòmasyon sou Sekirite

Please read and understand all safety information before operating this digital multimeter. Failure to follow these instructions may result in electric shock, fire, or damage to the device.

• Always ensure the multimeter is set to the correct function and range before making any measurements.
• Pa depase valè maksimòm antre yo espesifye pou chak fonksyon.
• Pran prekosyon lè w ap travay ak voltagki pi wo pase 30V AC RMS, 42V pik, oubyen 60V DC, paske yo poze yon danje pou elektrisite.
• Inspect test leads for damage before each use. Do not use if insulation is compromised.
• AVÈTISMAN: Before opening the case for battery or fuse replacement, always remove the test leads from the object being measured and disconnect from any power source to avoid electric shock.
• This device features F0.5A/600V fuse overload protection. Replace fuses only with specified types and ratings.

2. Pwodwi souview

The ANENG AN101 is a portable digital multimeter designed for measuring AC voltage, AC current, DC voltage, DC current, and resistance. It features an easy-to-read LCD display with 1999 counts and supports both automatic and manual ranging for versatile use in various electrical and electronic applications.

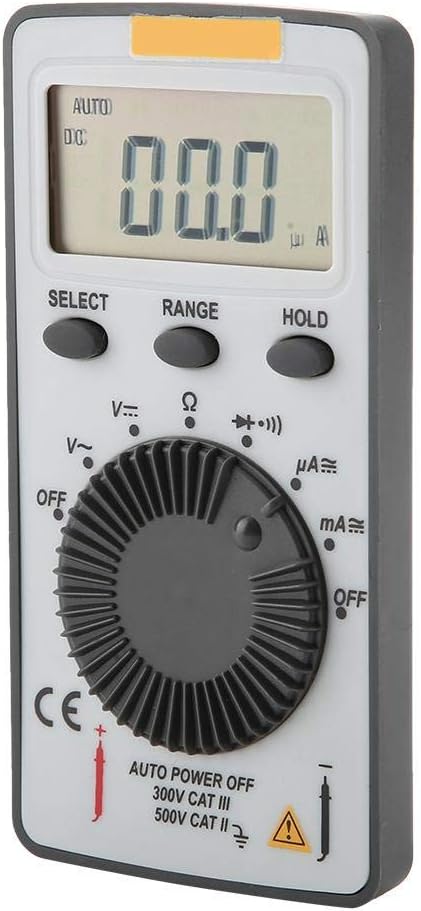

Figi 2.1: Devan view of the ANENG AN101 Digital Multimeter. This image displays the device's LCD screen, the central rotary function dial, and the 'SELECT', 'RANGE', and 'HOLD' buttons.

3. Enstalasyon

3.1 Enstalasyon batri

1. Ensure the multimeter is powered off and disconnect any test leads.
2. Jwenn lòj batri a sou do aparèy la.
3. Sèvi ak yon tournevis pou ouvri kouvèti konpatiman batri a.
4. Insert two 3V CR2032 batteries, observing the correct polarity.
5. Ranplase kouvèti lòj batri a epi an sekirite li ak vis la.

Figi 3.1: Retounen view of the ANENG AN101 Digital Multimeter. This image shows the battery compartment cover and a safety warning regarding opening the case.

3.2 Konekte fil tès yo

• Insert the red test lead into the 'VΩmA' input jack.
• Insert the black test lead into the 'COM' input jack.
• Ensure the connections are firm before proceeding with measurements.

4. Operasyon Enstriksyon

4.1 Power On/Off

Rotate the central dial from 'OFF' to any measurement function to power on the device. To power off, rotate the dial back to 'OFF'. The multimeter also features an auto power-off function to conserve battery life.

4.2 Seleksyon Fonksyon

Turn the rotary dial to select the desired measurement function (e.g., DC Voltage (V=), AC Voltage (V~), Resistance (Ω), DC Current (μA=, mA=), AC Current (μA~, mA~)).

4.3 Range Selection (Auto/Manual)

The AN101 supports both automatic and manual ranging. In auto-ranging mode, the meter automatically selects the best range for the measurement. Press the 'RANGE' button to switch between auto and manual ranging. In manual mode, press 'RANGE' repeatedly to cycle through available ranges.

4.4 Mezire DC Voltage

1. Set the rotary dial to 'V='.
2. Konekte fil tès wouj la sou bò pozitif sikwi a epi fil tès nwa a sou bò negatif la.
3. Li voltage value on the LCD display. The polarity will be indicated automatically.

4.5 Mezire AC Voltage

1. Set the rotary dial to 'V~'.
2. Konekte fil tès yo atravè vòltaj AC a.tage sous.
3. Li voltage valè sou ekspozisyon LCD a.

4.6 Mezire DC aktyèl

1. Set the rotary dial to 'μA=' or 'mA=' depending on the expected current.
2. AVÈTISMAN: To measure current, the multimeter must be connected in series with the circuit. Do not connect it in parallel across a voltage sous.
3. Break the circuit and connect the multimeter in series, ensuring the red lead is towards the higher potential and the black lead towards the lower potential.
4. Li valè aktyèl la sou ekspozisyon LCD a.

4.7 Measuring AC Current

1. Set the rotary dial to 'μA~' or 'mA~'.
2. AVÈTISMAN: Konekte miltimèt la an seri ak sikwi a.
3. Break the circuit and connect the multimeter in series.
4. Li valè aktyèl la sou ekspozisyon LCD a.

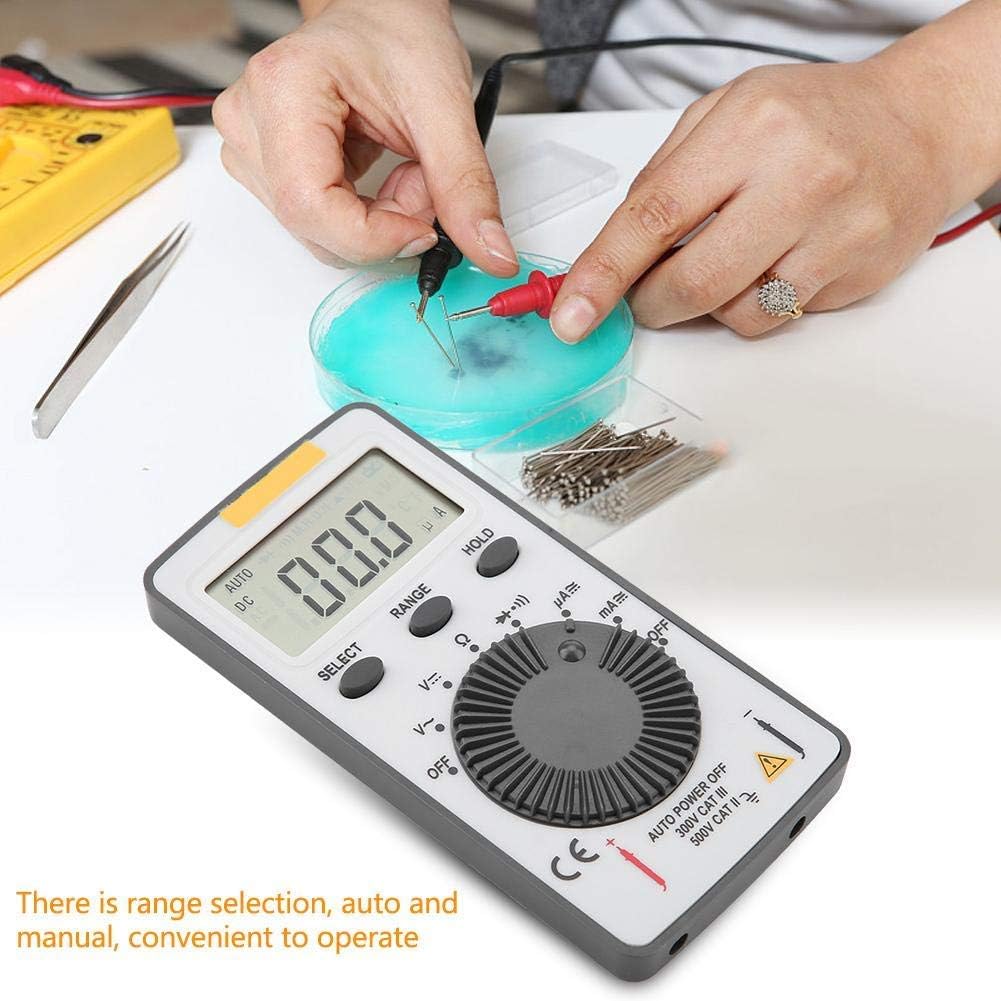

Figure 4.1: The ANENG AN101 Digital Multimeter in use, demonstrating its application for measuring electrical components. The image highlights the ease of operation with auto and manual range selection.

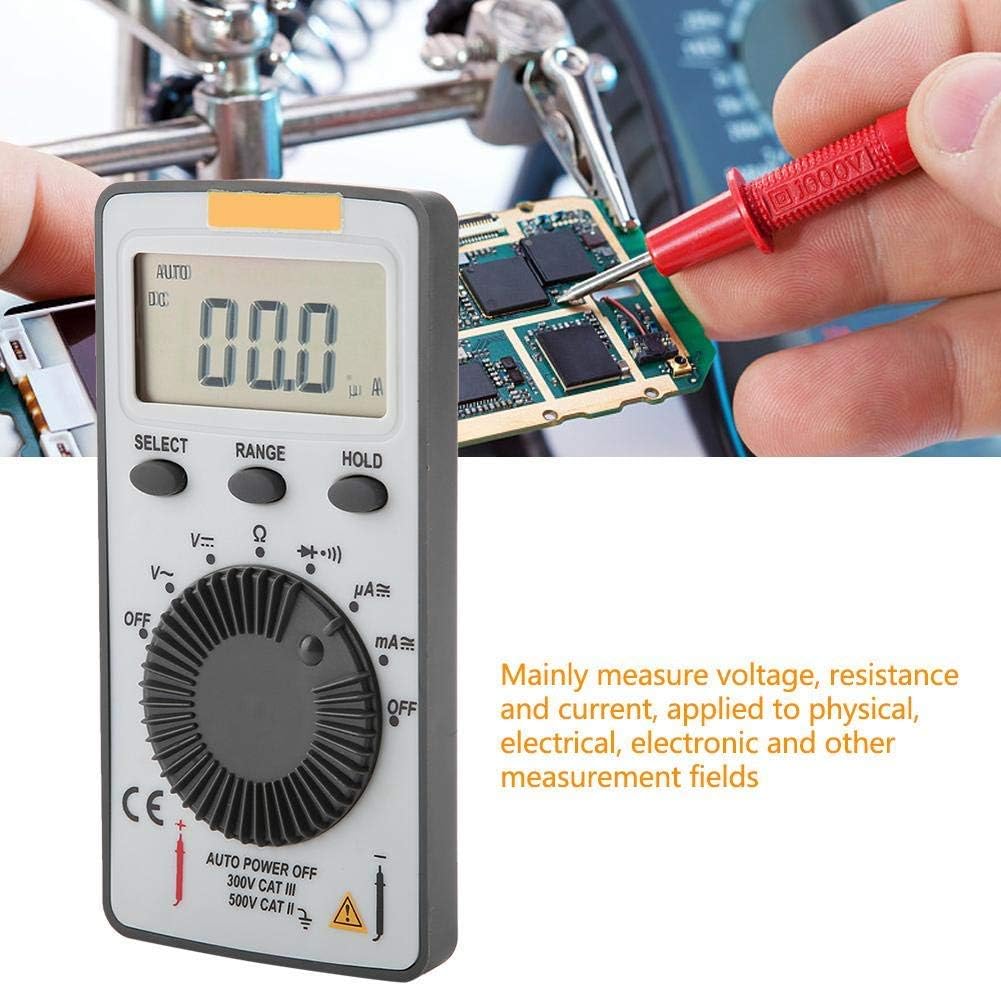

Figure 4.2: The ANENG AN101 Digital Multimeter being used to measure voltage or current on a circuit board. This illustrates its primary function in physical, electrical, and electronic measurement fields.

4.8 Fonksyon kenbe

Press the 'HOLD' button to freeze the current reading on the display. Press it again to release the hold function and resume live measurements.

5. Antretyen

5.1 Netwayaj

Wipe the device with a dry, soft cloth. Do not use abrasive cleaners or solvents. Keep the device free from dust and moisture.

5.2 Ranplasman batri

When the battery indicator appears on the display, replace the batteries as described in Section 3.1. Always use two new 3V CR2032 batteries.

5.3 Ranplasman Fuse

If the current measurement functions stop working, the fuse may need replacement. Refer to the safety warnings in Section 1 before attempting to open the case. Replace the fuse only with a F0.5A/600V type.

NAN. Depanaj

• Pa gen ekspozisyon: Tcheke enstalasyon pil yo epi asire w pil yo pa fin itilize.
• "OL" displayed: This indicates an over-range condition. Either the measured value exceeds the selected range, or the circuit is open (for resistance/current measurements). Select a higher range or check circuit continuity.
• Lekti ki pa kòrèk: Ensure test leads are properly connected, the correct function and range are selected, and the circuit connections are secure.
• Mezi aktyèl la pa fonksyone: Check the fuse as described in Section 5.3.

7. Espesifikasyon

Figure 7.1: Dimensions of the ANENG AN101 Digital Multimeter, showing its compact size for portability.

8. Garanti ak sipò

Pou enfòmasyon sou garanti a ak sipò teknik, tanpri gade dokiman yo te bay lè w te achte a oswa kontakte machann ou an. Kenbe resi acha w la kòm prèv acha.
