WORCRAFT 20V Cordless Impact Wrench

1. Pwodwi souview

The WORCRAFT 20V Cordless Impact Wrench (Model CIW-S20Li) is a powerful and versatile tool designed for heavy-duty fastening and loosening applications. Featuring a robust motor that delivers up to 450 ft-lbs of torque, a 1/2-inch anvil with a detent pin, and variable speed control, this wrench is suitable for tasks such as tire removal, vehicle maintenance, and construction projects. The ergonomic design with a soft TPE coating handle ensures comfortable and balanced control during operation. This kit includes a 4.0Ah battery, a fast charger, a toolbag, gloves, and four sockets.

2. Konpozan ki enkli

Your WORCRAFT 20V Cordless Impact Wrench kit comes with the following items:

• Kle enpak san fil
• 4.0Ah ityòm Ion batri
• Vit Charger
• Sak zouti
• Gan
• 4 Sockets (Fixed Square Hex)
• Hook senti

3. Enstalasyon

3.1 Batri Chaje

Before first use, fully charge the 4.0Ah Lithium Ion battery. Insert the battery into the fast charger, ensuring it clicks into place. The charger's LED indicator will show the charging status. A full charge is indicated when all LED segments are lit. Always use the provided WORCRAFT charger for optimal performance and safety.

3.2 Mete Sokèt yo an kontak

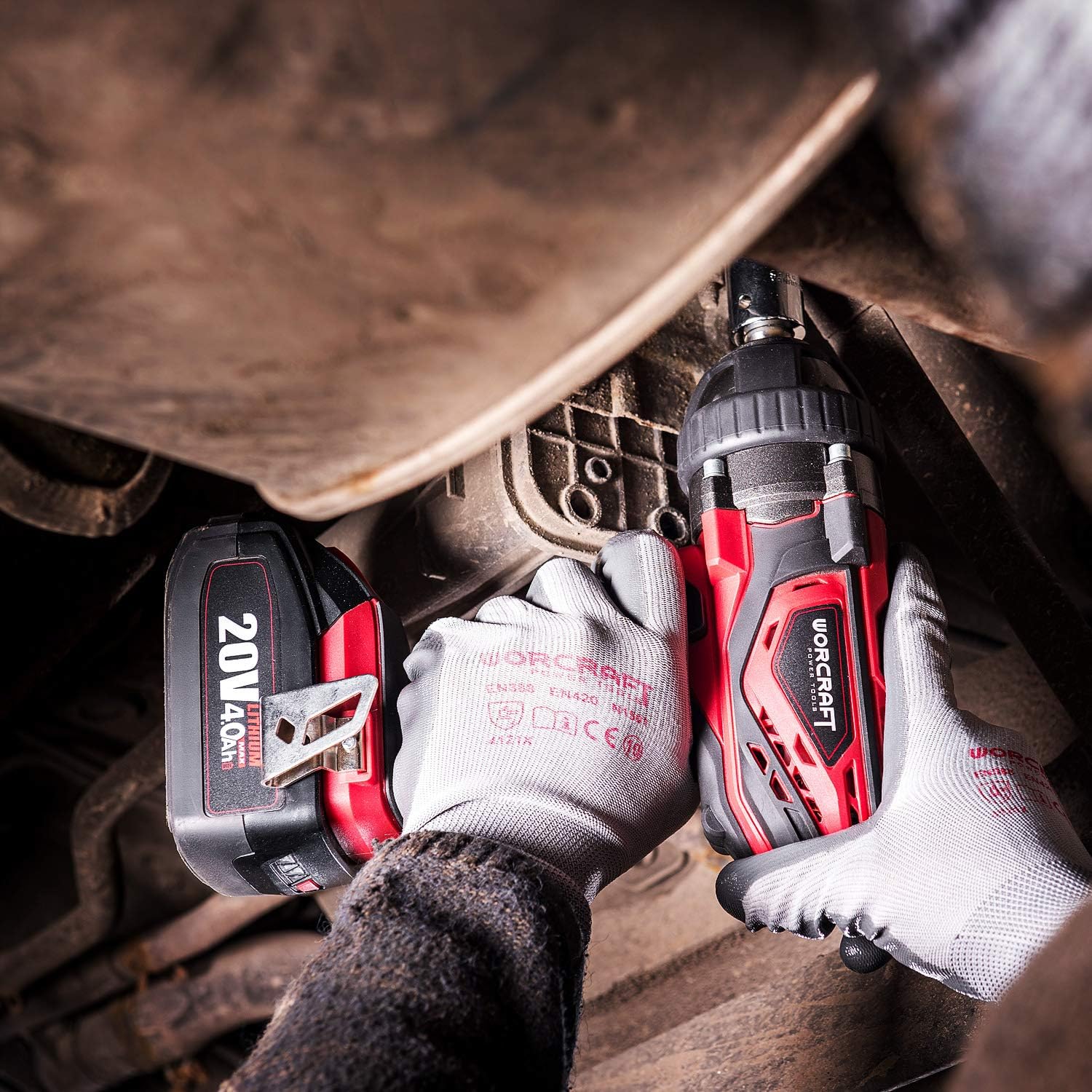

The impact wrench features a 1/2-inch anvil with a detent pin for secure socket attachment. To attach a socket, align the square drive of the socket with the anvil and push firmly until the detent pin engages the hole in the socket. To remove, pull back the detent pin and pull the socket off.

4. Operasyon Enstriksyon

4.1 Limen/Etenyen

To power on the tool, press the trigger. The tool will begin to operate. Release the trigger to turn off the tool. Ensure the rotation shift knob is in the desired position before operating.

4.2 Kontwòl Vitès Varyab

The impact wrench features a variable speed trigger. The speed of the tool is controlled by the amount of pressure applied to the trigger. Pressing the trigger lightly will result in lower speed and torque, while pressing it fully will deliver maximum speed and torque.

4.3 Direksyon wotasyon

The rotation direction (forward/reverse) is controlled by the rotation shift knob located above the trigger. Push the knob to the left for forward rotation (tightening) and to the right for reverse rotation (loosening). Ensure the tool is completely stopped before changing the rotation direction.

4.4 Aplikasyon

This impact wrench is ideal for a wide range of applications requiring high torque. It is commonly used for:

• Removing and installing lug nuts on vehicles.
• Fastening and loosening bolts in automotive repair.
• Assembly and disassembly of heavy equipment.
• Construction tasks requiring strong fastening.

5. Antretyen

5.1 Netwayaj jeneral

Keep the tool clean and free from dust, dirt, and debris. Use a soft, damp cloth to wipe down the exterior. Do not use harsh chemicals or abrasive cleaners. Ensure ventilation openings are clear to prevent overheating.

5.2 Swen Batri

Store batteries in a cool, dry place away from direct sunlight and extreme temperatures. Do not store batteries in a discharged state for extended periods. Recharge batteries regularly, even if not in use, to maintain their lifespan. Avoid dropping or damaging the battery pack.

NAN. Depanaj

If you encounter issues with your WORCRAFT 20V Cordless Impact Wrench, refer to the following common troubleshooting steps:

• Zouti a pa kòmanse: Ensure the battery is fully charged and properly inserted. Check the rotation shift knob is not in the center (locked) position.
• Rediksyon puisans/koupl: The battery may be low on charge. Recharge the battery. Ensure the correct size and type of socket is being used for the application.
• Batri pa chaje: Verify the charger is properly plugged into a working power outlet. Ensure the battery is correctly seated in the charger. If the issue persists, the charger or battery may need replacement.
• Twòp vibrasyon oswa bri: Stop using the tool immediately. Check for loose components or damaged parts. Contact customer support if the issue cannot be resolved.

7. Espesifikasyon

8. Garanti ak sipò

WORCRAFT provides a 2-year warranty for the cordless impact wrench and battery. For any questions, problems, or warranty claims, please contact WORCRAFT customer support. Refer to the contact information provided in your product packaging or on the official WORCRAFT websit.
