VECELO Gaming Racing Ergonomic High-Back Computer Chair User Manual

1. Entwodiksyon

Thank you for choosing the VECELO Gaming Racing Ergonomic High-Back Computer Chair. This chair is designed to provide comfort and support for extended periods, whether for gaming, office work, or relaxation. Its ergonomic design, adjustable features, and durable construction ensure a reliable and comfortable experience. This manual provides essential information for assembly, operation, maintenance, and troubleshooting to help you get the most out of your chair.

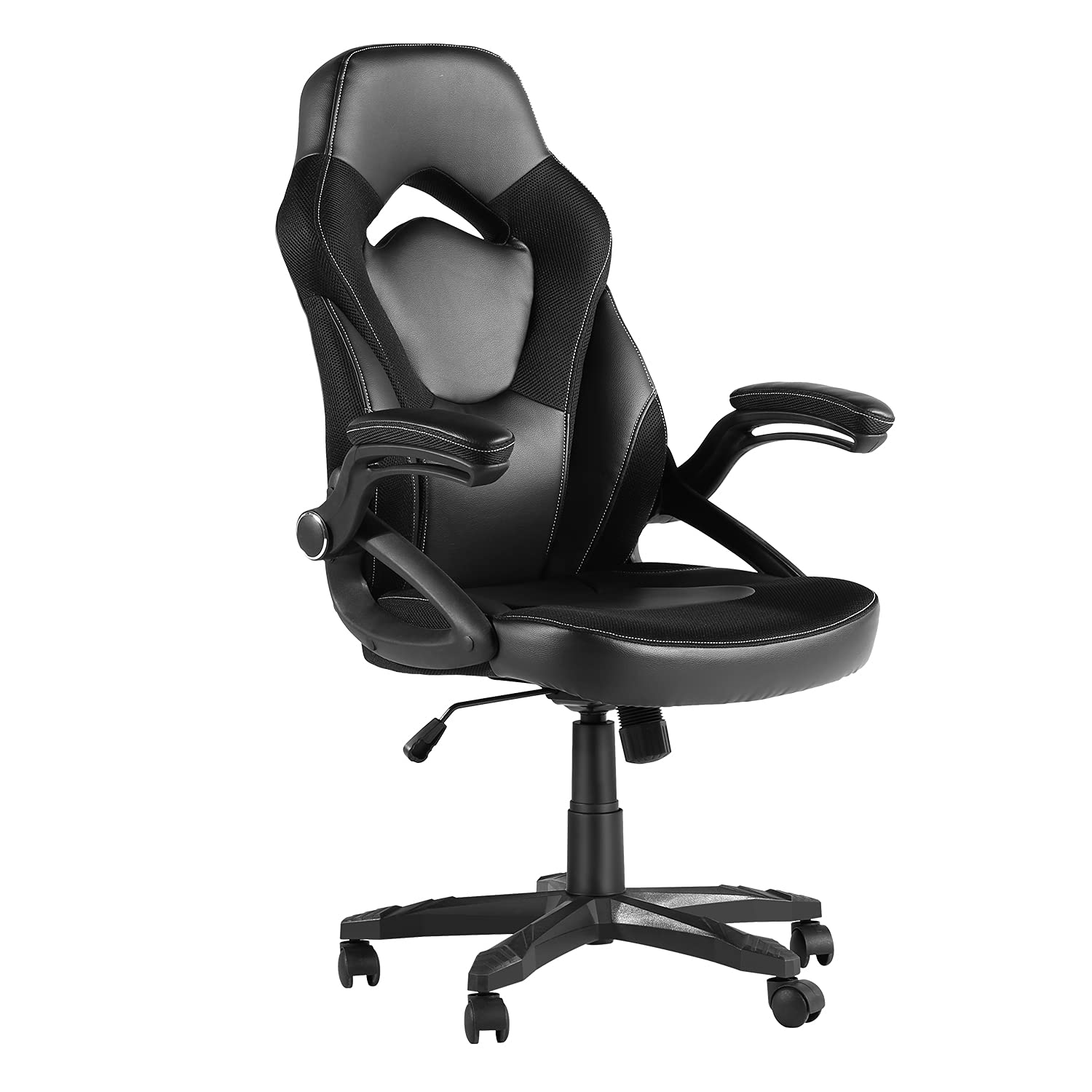

Image 1.1: The VECELO Gaming Racing Ergonomic High-Back Computer Chair in a typical gaming environment.

2. Enfòmasyon sou Sekirite

• Li tout enstriksyon yo ak anpil atansyon anvan asanble ak itilize.
• Kenbe tout materyèl anbalaj lwen timoun yo.
• Asire w tout vis ak boulon yo byen sere anvan w itilize yo. Tcheke yo detanzantan epi sere yo ankò jan sa nesesè.
• Pa kanpe sou chèz la.
• Pa sèvi ak chèz la si gen nenpòt pyès ki manke, ki domaje, oswa ki ize. Kontakte sèvis kliyan pou jwenn pyès ranplasman.
• Maximum weight capacity for this chair is 285 lbs (129 kg). Do not exceed this limit.
• Sèvi ak chèz la sou yon sifas plat epi ki stab.

3. Pake kontni

Before beginning assembly, verify that all components are present and undamaged. If any parts are missing or damaged, do not proceed with assembly. Contact VECELO customer support.

• Chair Components (Backrest, Seat, Armrests, Base, Casters, Gas Lift)
• Manyèl Enstriksyon (dokiman sa a)
• Twous pyès ki nan konpitè (vis, rondelles, kle Allen)

4. Enstalasyon ak Asanble

Assembly typically takes approximately 45 minutes. It is recommended to have a second person assist during certain steps for easier assembly. Lay out all components on a soft, clean surface to prevent scratches.

1. Mete wou yo nan baz la: Mete senk wou yo nan twou ki nan bout chak pye baz chèz la. Pouse byen fèm jiskaske yo fè yon klik pou yo anfòm.
2. Mete asansè gaz la: Mete silenn asansè gaz la nan twou santral baz chèz la ki reyini an. Asire w ke li byen chita.
3. Mete akoudwa yo nan chèz la: Secure the armrests to the underside of the seat cushion using the provided screws. Do not fully tighten the screws yet.
4. Mete dosye a nan chèz la: Align the backrest with the seat cushion and attach it using the remaining screws. Once all screws are in place for both armrests and backrest, tighten all screws securely.
5. Mete tèt la ki fin rasanble sou asansè gaz la: Carefully place the assembled seat and backrest onto the gas lift cylinder, ensuring the center mechanism aligns with the top of the gas lift.

Yon fwa ou fin rasanble chèz la, teste estabilite li ak tout fonksyon ajisteman yo anvan ou itilize li regilyèman.

5. Operasyon Enstriksyon

The VECELO Gaming Racing Chair offers several adjustable features for personalized comfort.

Image 5.1: Key features of the VECELO Gaming Racing Chair.

5.1. Ajisteman Wotè Syèj

To adjust the seat height, locate the lever on the right side, beneath the seat. While seated, pull the lever up to lower the seat. To raise the seat, stand up and pull the lever up. Release the lever at the desired height to lock it in place. The adjustable height range is 42.5-45.2 inches (107-115 cm).

5.2. Backrest Angle Adjustment

The backrest can be adjusted between 90° and 120°. Locate the lever on the left side, beneath the seat. Pull the lever up to recline the backrest. Release the lever at your preferred angle to lock it. Ensure the backrest is securely locked before leaning back.

5.3. Akoudwa ki ka rabat anlè

The armrests are designed to flip up, allowing you to push the chair closer to your desk or for easier storage. Simply lift the armrests upwards until they lock into the vertical position. To return them to the down position, gently pull them down.

5.4. Pivote ak Mobilite

The chair features a 360° swivel function and smooth-rolling nylon casters for easy movement across hard floors. Ensure the area around the chair is clear before moving to prevent accidents.

6. Antretyen

Regular maintenance helps prolong the life and appearance of your VECELO chair.

• Netwayaj: Pou netwayaj jeneral, siye sifas yo ak yon twal mou.amp twal. Pou tach ki difisil pou retire, sèvi ak yon solisyon savon dou epi siye touswit. Evite pwodui chimik ki agresif oswa pwodui netwayaj abrazif.
• Enspeksyon: Periodically check all screws and bolts to ensure they are tight. Re-tighten if necessary. Inspect casters for any debris that might hinder smooth movement.
• Evite limyè solèy la dirèk: Prolonged exposure to direct sunlight can cause fading or damage to the upholstery.

NAN. Depanaj

Si ou rankontre nenpòt pwoblèm ak chèz ou a, gade pwoblèm ak solisyon komen sa yo.

8. Espesifikasyon

Detailed specifications for the VECELO Gaming Racing Ergonomic High-Back Computer Chair.

Image 8.1: Dimensions of the VECELO Gaming Racing Ergonomic High-Back Computer Chair.

• Mak: VECELO
• Non modèl: Jwèt Kous
• Koulè: Nwa
• Materyèl: Mesh, Polyurethane, Stainless Steel
• Dimansyon pwodwi (P x W x H): 19.6" x 20.4" x 45.2" (49.8 santimèt x 51.8 santimèt x 114.8 santimèt)
• Seat Size (W x D): 20.4" x 19.6" (52 santimèt x 50 santimèt)
• Wotè dosye: 28.7 pous (73 santimèt)
• Adjustable Chair Height: 42.5" - 45.2" (107 santimèt - 115 santimèt)
• Pwa atik: 27 liv (12.2 kg)
• Rekòmandasyon pou pwa maksimòm: 285 liv (129 kg)
• Ang dèyè reglabl: 90° - 120°
• Karakteristik: Adjustable Height, Flip-Up Armrests, Ergonomic Design, 360° Swivel, High-Density Shaping Foam
• Itilizasyon Rekòmande: Gaming, Biwo
• Asanble obligatwa: Wi

9. Garanti ak sipò

VECELO is committed to providing quality products. For specific warranty details, please refer to the warranty card included with your purchase or visit the official VECELO website. If you have any questions, require assistance with assembly, or need replacement parts, please contact VECELO customer support through the retailer where the product was purchased or via the contact information provided on the VECELO official websit.

Please have your model name (Gaming Racing) and purchase information ready when contacting support.
