Bagtecs CRB 40-60 Liter Motorcycle Saddlebags User Manual

1. Pwodwi souview

The Bagtecs CRB 40-60 Liter Motorcycle Saddlebags are designed as universal, shape-retaining side bags for motorcycles. Constructed from durable Oxford polyamide with a high-quality carbon-look finish, these saddlebags offer an expandable volume of 40-60 liters (20-30 liters per bag). They feature stable side reinforcements and lids made of thermoformed EVA plastic to maintain their shape, even when partially loaded. The material is water-repellent, and a rain cover is included for 100% waterproofing during heavy rain.

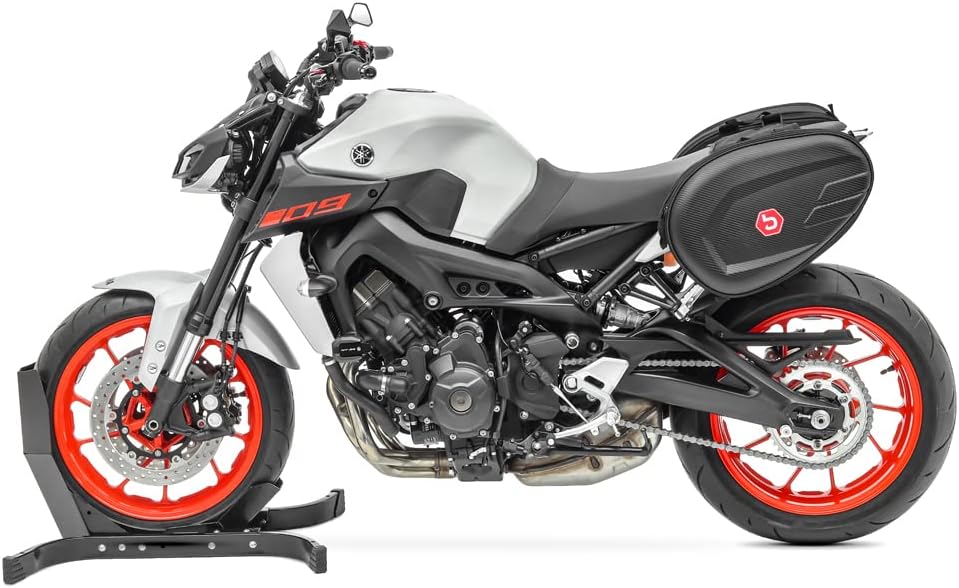

Figure 1: Bagtecs CRB 40-60 Liter Motorcycle Saddlebags installed on a motorcycle.

2. Pake kontni

Tanpri verifye ke tout atik yo prezan nan pakè a:

• Saddlebags (1 pair, right and left)
• Mounting System (adjustable Velcro straps)
• Rain Covers (1 pair)

3. Enstalasyon ak Enstalasyon

Follow these steps to properly install the saddlebags on your motorcycle:

1. Pozisyon: Place the saddlebags over the passenger seat or rear rack of your motorcycle. Ensure they are balanced and do not obstruct any controls or lights.
2. Tachman an sekirite: Use the adjustable Velcro fastening system to securely attach the bags to your motorcycle. The straps should pass over or under the seat, depending on your motorcycle model, and be tightened to prevent movement.
3. Clearance echapman: Maintain a minimum distance of 5 cm (approximately 2 inches) between the saddlebags and the exhaust system. If this distance cannot be achieved, it is essential to apply additional heat protection (not included) to the bag to prevent damage.
4. Tcheke final la: Before riding, verify that the bags are securely attached and do not interfere with the motorcycle's moving parts (e.g., wheels, chain) or the rider's operation. Refer to the images and dimensions provided to confirm compatibility with your motorcycle.

Figure 2: Proper mounting of saddlebags on a motorcycle.

4. Operasyon Enstriksyon

The Bagtecs CRB 40-60 Liter Motorcycle Saddlebags offer versatile storage options:

• Volume Expansion: Each saddlebag features an expansion zipper. To increase the storage capacity from 20 liters to 30 liters per bag, simply open this zipper. To reduce the volume, close the expansion zipper.
• Pwoteksyon dlo: The saddlebags are made from water-repellent material suitable for light rain and showers. For complete protection against heavy rain, always use the included rain covers.

Figure 3: Saddlebag with rain cover for enhanced weather protection.

5. Antretyen

To ensure the longevity and performance of your saddlebags, follow these maintenance guidelines:

• Netwayaj: Wipe the exterior of the saddlebags with a damp cloth to remove dirt and dust. Avoid using harsh chemicals or abrasive cleaners, as these can damage the material.
• Siye: If the bags become wet, allow them to air dry completely before storing to prevent mold or mildew.
• Depo: Store the saddlebags in a cool, dry place away from direct sunlight when not in use.
• Swen zip: Periodically check zippers for smooth operation. If they become stiff, apply a small amount of zipper lubricant.

NAN. Depanaj

Gade seksyon sa a pou pwoblèm komen ak solisyon yo:

• Issue: Bags are not stable or move during riding.
  Solisyon: Re-adjust the Velcro fastening straps to ensure they are tightly secured over the seat. Verify that the bags are balanced on both sides of the motorcycle.
• Issue: Bags are too close to the exhaust system.
  Solisyon: Re-position the bags to achieve the minimum 5 cm clearance. If this is not possible, install additional heat protection (not included) on the bag surface facing the exhaust.
• Issue: Water is entering the bags during rain.
  Solisyon: Ensure the included rain covers are properly installed and fully cover the saddlebags. Check that all zippers are completely closed.

7. Espesifikasyon

8. Enfòmasyon sou Sekirite

Tanpri obsève prekosyon sekirite sa yo:

• Always ensure the saddlebags are securely fastened to the motorcycle before riding. Loose bags can pose a safety hazard.
• Maintain a minimum distance of 5 cm between the saddlebags and the exhaust system to prevent heat damage. Use additional heat protection if necessary.
• Do not overload the saddlebags beyond their stated capacity. Overloading can affect motorcycle handling and stability.
• Periodically check the stability and attachment of the bags during long rides.
• Be aware that the installed saddlebags increase the overall width of your motorcycle. Exercise caution when maneuvering in tight spaces or through traffic.
• Distribute weight evenly between the two saddlebags to maintain motorcycle balance.
