Entwodiksyon
This manual provides essential information for the safe and effective use of the uxcell KW4-3Z-3 Micro Limit Switch. It covers product specifications, installation guidelines, operating principles, and general maintenance advice. Please read this manual thoroughly before installation and operation.
Enfòmasyon sou Sekirite
- Toujou dekonekte kouran an anvan ou enstale, konekte fil elektrik oswa fè antretyen sou switch la.
- Ensure wiring is performed by a qualified individual in accordance with local electrical codes and regulations.
- Do not exceed the specified electrical ratings (5A/250VAC).
- Avoid exposing the switch to environments outside its operating temperature range (-25°C to +80°C) or to excessive moisture, as its IP40 rating indicates protection against solid objects greater than 1mm, but not liquids.
- Verify correct terminal connections (Common, Normally Open, Normally Closed) before applying power.
Pwodwi souview
The uxcell KW4-3Z-3 is a momentary micro limit switch featuring a Short Straight Lever actuator and SPDT (Single Pole Double Throw) contacts, providing both Normally Open (NO) and Normally Closed (NC) functionality. It is designed for precise detection of mechanical movement in various applications.
Image: A general view of the uxcell KW4-3Z-3 Micro Limit Switch, showing its green housing and metal lever.
Karakteristik kle:
- Chaj Rating: 5A/250VAC
- Kalite kontak: SPDT NO+NC (3 pins)
- Operasyon: Momentary Mechanical
- Degre pwoteksyon: IP40 (protection against solid objects >1mm)
- Tanperati operasyon: -25°C pou +80°C
- Lavi: 100,000 operations min. (Electrical); 10,000,000 operations min. (Mechanical)
Espesifikasyon
| Spesifikasyon | Valè |
|---|---|
| Nimewo Modèl | a18113000ux0408 |
| Gwosè an jeneral (L x W x H) | 20 x 18 x 7 mm (0.79 x 0.71 x 0.28 pous) |
| Rating Load | 5A/250VAC |
| Operasyon vitès | 0.1mm-1m/s |
| Kontakte Rezistans | 15m Ohm max. (initial) |
| Rezistans izolasyon | 100m Ohm min. (at DC500V) |
| Lavi elektrik | 100,000 operations min. (full load) |
| Lavi mekanik | 10,000,000 operasyon min. |
| Tanperati Fonksyònman | -25°C pou +80°C |
| Fòm kontak | SPDT NO+NC |
| Nimewo PIN | 3 |
| Materyèl | Plastic (housing), Metal (lever) |
| Rating Pwoteksyon Entènasyonal | IP40 |
| Kalite actuator | Levye charnyèr |
| Kalite aliye | Panel Mount, Surface Mount |
Enstalasyon ak Enstalasyon
The KW4-3Z-3 micro limit switch is designed for integration into various electrical circuits to detect mechanical position. Proper installation ensures reliable operation.
Montaj:
The switch can be mounted using its integrated mounting holes. Ensure the mounting surface is stable and the switch is securely fastened to prevent movement during operation. The actuator lever should be positioned to interact reliably with the moving part it is intended to detect.

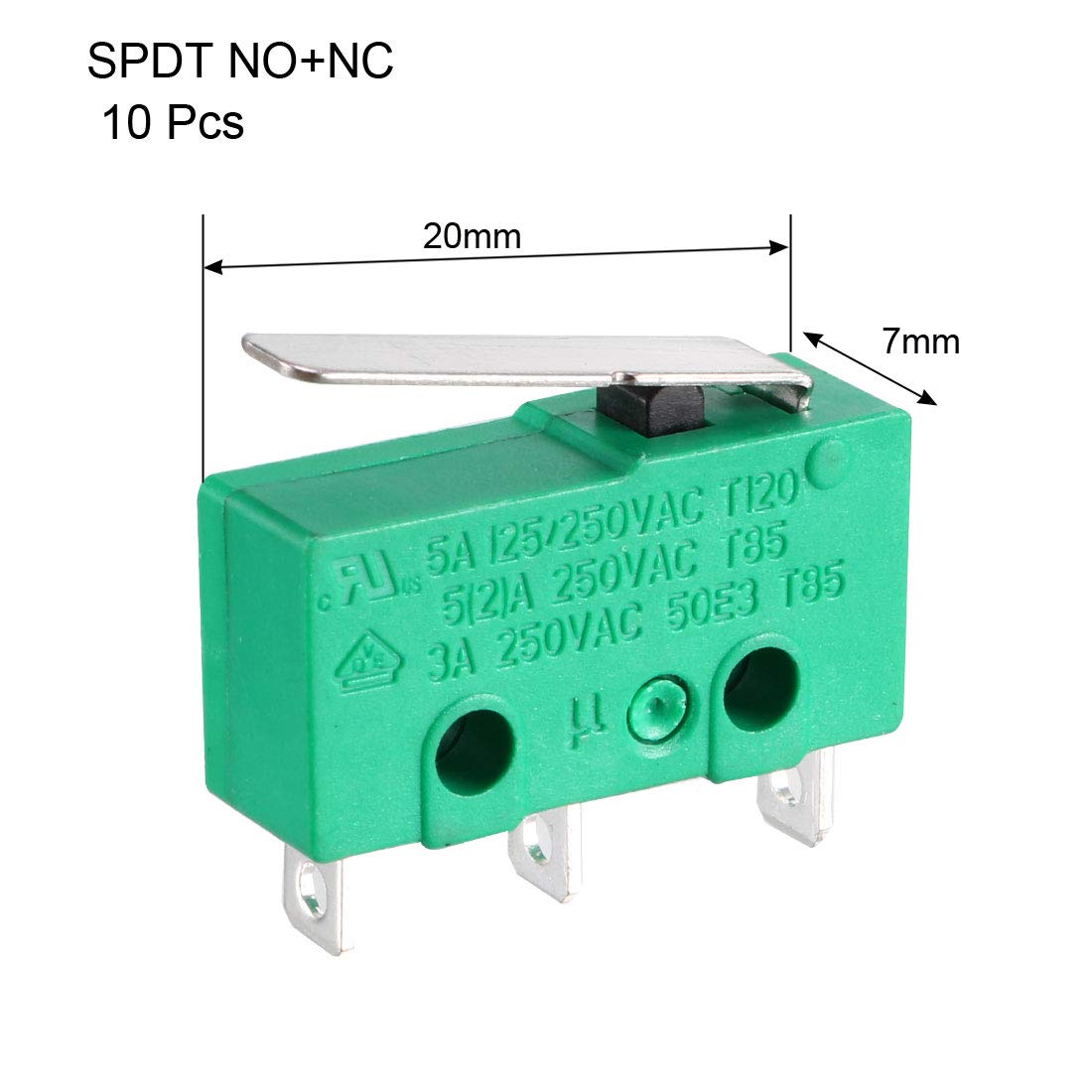

Image: Detailed dimensions of the micro limit switch, showing length, width, and height for precise installation planning.
Fil elektrik:
The switch features three terminals: Common (C), Normally Open (NO), and Normally Closed (NC). These terminals are typically marked on the switch body. Refer to the image below for terminal identification.
Imaj: Gwo plan view of the micro limit switch showing the 'C', 'NO', and 'NC' markings for terminal identification.
- Komen (C): This is the input terminal for the electrical signal.
- Nòmalman Louvri (NON): When the switch actuator is in its relaxed (unpressed) state, there is no electrical connection between C and NO. When the actuator is pressed, C and NO become connected.
- Nòmalman Fèmen (NC): When the switch actuator is in its relaxed (unpressed) state, there is an electrical connection between C and NC. When the actuator is pressed, the connection between C and NC is broken.
Connect your circuit wires to the appropriate terminals based on whether you require a signal when the switch is pressed (NO) or when it is released (NC).
Imaj: Anba view of the micro limit switch, clearly showing the three metal terminals for electrical connections.
Prensip Fonksyònman
The KW4-3Z-3 is a momentary action switch. This means that the switch contacts change state only while the actuator lever is physically pressed. Once the pressure on the lever is removed, the contacts return to their original state.
The short straight lever acts as the sensing element. When a mechanical force or object presses against this lever, it actuates the internal switch mechanism, causing the SPDT contacts to switch their state. This makes it ideal for applications requiring detection of presence, position, or end-of-travel.
Video: Demonstration of a micro limit switch application, showing how the switch operates when its lever is pressed, triggering an electrical response.
Video: A close-up demonstration of a micro touch button momentary switch, illustrating the physical actuation and immediate response of the switch mechanism.
Antretyen
The uxcell KW4-3Z-3 Micro Limit Switch is designed for long-term reliability with minimal maintenance. However, periodic inspection can help ensure optimal performance.
- Netwayaj: Keep the switch free from dust, dirt, and debris. Use a dry, soft cloth for cleaning. Avoid using solvents or abrasive cleaners.
- Enspeksyon: Regularly check the actuator lever for any signs of wear, bending, or damage. Ensure it moves freely without obstruction.
- Fil elektrik: Verify that all electrical connections remain secure and free from corrosion. Loose connections can lead to intermittent operation or electrical hazards.
- Kondisyon anviwònman: Confirm that the operating environment continues to meet the specified temperature and humidity ranges.
Depanaj
If you encounter issues with your micro limit switch, consider the following troubleshooting steps:
- Pa gen repons:
- Check if power is supplied to the circuit.
- Verify all wiring connections are correct and secure (Common, NO, NC).
- Ensure the actuator lever is being fully pressed and released.
- Test the switch continuity with a multimeter if possible, to confirm internal contact operation.
- Operasyon tanzantan:
- Enspekte pou koneksyon fil elektrik ki lach.
- Check for debris or obstructions affecting the actuator lever's movement.
- Ensure the mechanical part actuating the switch is consistent in its movement and pressure.
- Switch Stuck On/Off:
- Examine the actuator lever for physical damage or deformation.
- Check for internal damage if the switch has been subjected to excessive force. Replacement may be necessary.
Garanti ak sipò
Specific warranty details for the uxcell KW4-3Z-3 Micro Limit Switch are not provided in this manual. For warranty claims, technical support, or further assistance, please refer to the product packaging or contact your point of purchase or the manufacturer directly.
