PowerSmith 18" 20V Cordless Hedge Trimmer (Model PHT120) User Manual

1. Entwodiksyon

Thank you for choosing the PowerSmith 18" 20V Cordless Hedge Trimmer, Model PHT120. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new tool. Please read these instructions thoroughly before first use and retain them for future reference.

This hedge trimmer is designed for trimming hedges, shrubs, and bushes in residential settings. It features an 18-inch dual-action blade and operates on a 20V Lithium-Ion battery system.

2. Enfòmasyon jeneral sou sekirite

AVÈTISMAN: Li tout avètisman sekirite, enstriksyon, ilistrasyon, ak espesifikasyon yo bay zouti elektrik sa a. Si w pa swiv tout enstriksyon ki endike anba la yo, sa ka lakòz chòk elektrik, dife, ak/oswa blesi grav.

2.1 Sekirite Pèsonèl

• Always wear eye protection (safety glasses) and hearing protection.
• Wear heavy-duty gloves, long pants, and sturdy footwear.
• Do not operate the hedge trimmer when tired, under the influence of drugs, alcohol, or medication.
• Keep all parts of the body away from the blade. Do not attempt to remove cut material or hold material to be cut when blades are moving.

2.2 Sekirite Zòn Travay

• Kenbe timoun yo ak moun ki prale la lwen pandan w ap itilize kouto taye pyebwa a.
• Clear the work area of debris, wires, and other obstacles that could interfere with operation or be thrown by the blades.
• Pa opere nan kondisyon mouye.

2.3 Electrical Safety (Battery and Charger)

• Sèvi ak sèlman chajè manifakti a espesifye a.
• Pa chaje pil yo nan damp oswa kote ki mouye.
• Pa kout sikwi tèminal batri yo.
• Pa jete pil nan dife.

CALIFORNIA PROPOSITION 65 WARNING: Cancer and Reproductive Harm.

3. Pwodwi souview

The PowerSmith PHT120 hedge trimmer is designed for efficient and comfortable hedge trimming. Key features include:

• 18-inch Dual-Action Blades: Provides clean and efficient cuts.
• Kapasite Koupe 3/4 pous: Suitable for various hedge and shrub thicknesses.
• Sistèm batri ityòm-ion 20V: Offers cordless convenience and consistent power.
• 2-StagDeklanchè: Enhances safety by requiring two actions to start the tool.
• Kouvèti Pwoteksyon Lam: For safe storage and transport.
• Optimized Handle Grips: Designed for balanced weight distribution and comfortable operation.

Figure 3.1: PowerSmith 18" 20V Cordless Hedge Trimmer (Model PHT120). This image displays the complete hedge trimmer unit, highlighting its 18-inch blade, ergonomic handles, and the attached 20V battery.

4. Enstalasyon ak Asanble

4.1 Chaje batri a

The hedge trimmer operates on a 20V Lithium-Ion battery. Before first use, and after each use, ensure the battery is fully charged.

1. Konekte chargeur a nan yon priz elektrik estanda.
2. Slide the 20V Lithium-Ion battery into the charger. Ensure it clicks securely into place.
3. Allow the battery to charge until the indicator light on the charger signals a full charge. A full charge typically provides approximately 21 minutes of run time.
4. Yon fwa li chaje, dekonekte chajè a nan priz la epi retire batri a.

Figure 4.1: PowerSmith 20V Lithium-Ion Battery and Charger. This image shows the 20V battery pack alongside its dedicated charging unit, ready for connection to a power source.

4.2 Tache batri a

To attach the charged battery to the hedge trimmer:

1. Align the battery with the battery port on the hedge trimmer handle.
2. Slide the battery firmly into the port until it locks into place. Ensure it is securely seated before operation.

5. Operasyon Enstriksyon

5.1 Kòmanse epi kanpe kouto a

The PHT120 features a 2-stage trigger for enhanced safety:

1. To start, first depress the safety lock-off button (usually located on the handle).
2. While holding the safety lock-off button, squeeze the main trigger switch. The blades will begin to move.
3. To stop, release the main trigger switch. The blades will cease movement.

5.2 Teknik pou koupe

Pou pi bon rezilta ak sekirite:

• Hold the trimmer firmly with both hands, utilizing the front and rear handle grips for optimal balance.
• Maintain a stable footing and balance.
• Cut with a sweeping motion, moving the trimmer away from your body.
• Avoid cutting branches thicker than the 3/4 inch capacity.
• Do not force the trimmer through thick material; allow the blades to do the work.

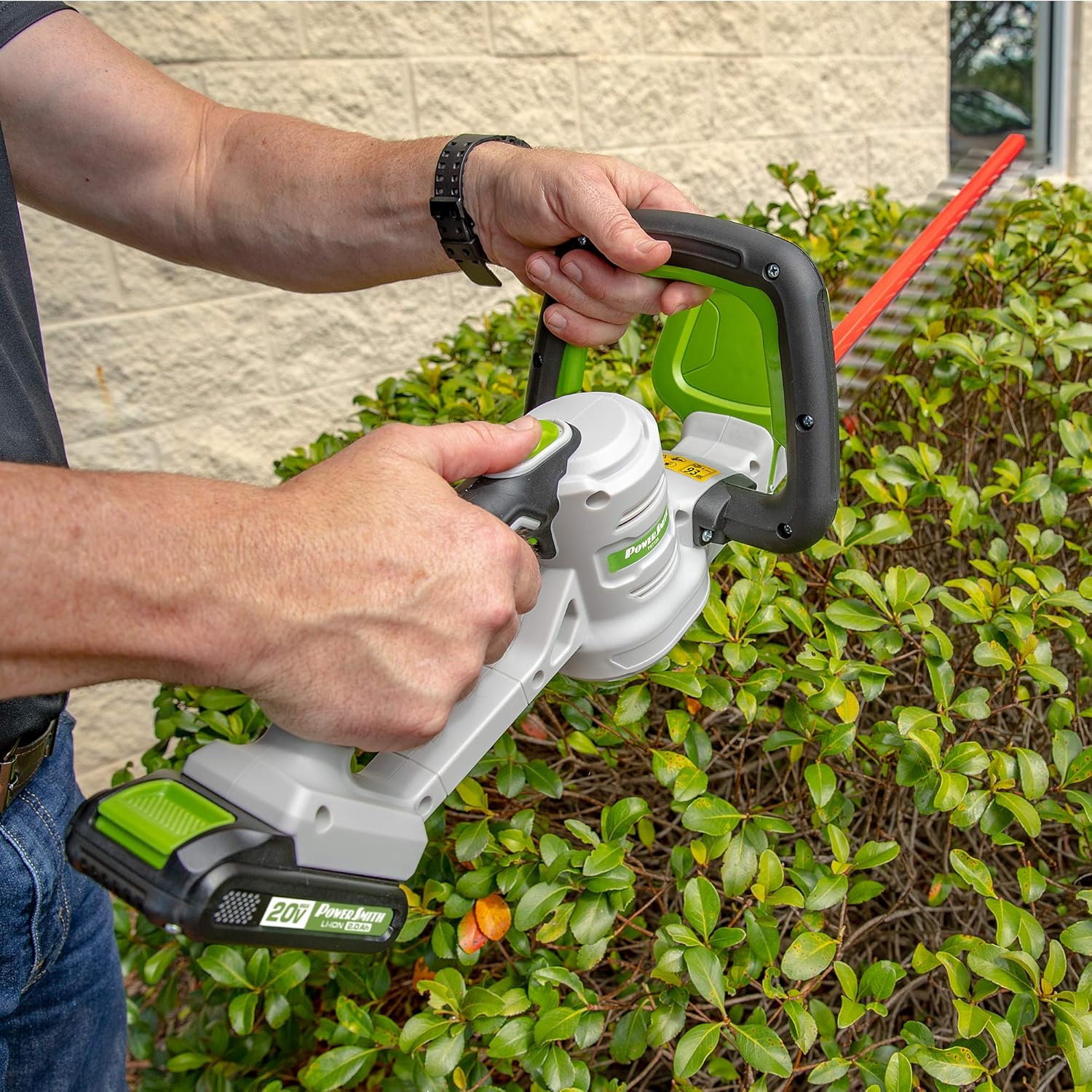

Figure 5.1: User operating the PowerSmith hedge trimmer to trim a bush. This image demonstrates the proper two-handed grip and cutting angle during operation.

Figi 5.2: Close-up view of the PowerSmith hedge trimmer's blades actively trimming foliage. This image highlights the blade action and the protective guard.

6. Antretyen

6.1 Cleaning and Blade Care

• Toujou retire batri a anvan ou netwaye oswa fè nenpòt antretyen.
• After each use, clean the blades with a stiff brush to remove sap and debris.
• Apply a light machine oil or blade lubricant to the blades to prevent rust and ensure smooth operation.
• Inspect the blades for damage or dullness. Sharpen or replace as necessary by a qualified service technician.

6.2 Depo

• Ensure the protective blade cover is securely in place before storing.
• Sere kouto kloti a nan yon kote ki sèk epi an sekirite, kote timoun pa ka rive.
• Store the battery separately from the tool, in a cool, dry place, away from direct sunlight and extreme temperatures.

NAN. Depanaj

8. Espesifikasyon

9. Garanti ak Sipò Kliyan

The PowerSmith 18" 20V Cordless Hedge Trimmer (Model PHT120) is backed by a 3-ane garanti manifakti. Garanti sa a kouvri domaj nan materyèl ak atizan konn fè nan itilizasyon nòmal.

For warranty claims, technical assistance, or general inquiries, please contact PowerSmith's US-Based Customer Support. Refer to the contact information provided in your product packaging or visit the official PowerSmith websit la pou plis detay sou sipò aktyèl la.

Tanpri konsève prèv acha ou a pou validasyon garanti a.
