1. Entwodiksyon
This user manual provides essential information for the safe and efficient operation of the MEAN WELL HVGC-650-U-AB LED Driver Power Supply. This device is designed to provide stable power for LED lighting applications, featuring a 649.6W output, 24-58V range, 11.2A constant power, and 3-in-1 dimming capabilities. Please read this manual thoroughly before installation and use.
2. Enstriksyon Sekirite Enpòtan
- Sekirite elektrik: Installation and servicing must be performed by qualified personnel only. Disconnect power before any installation or maintenance work.
- Vantilasyon: Ensure adequate ventilation around the unit to prevent overheating. Do not cover the power supply.
- Anviwònman: Pa ekspoze aparèy la nan imidite, tanperati ekstrèm, oswa anviwònman koroziv.
- Atè: Ensure proper grounding (FG) connection to prevent electric shock.
- Konpatibilite chaj: Verify that the connected LED load is within the specified voltage and current range of the power supply.
3. Pwodwi souview
The HVGC-650-U-AB is a high-performance LED driver enclosed in a robust aluminum casing, designed for demanding industrial and outdoor applications. It features clearly labeled input and output terminals for straightforward wiring.

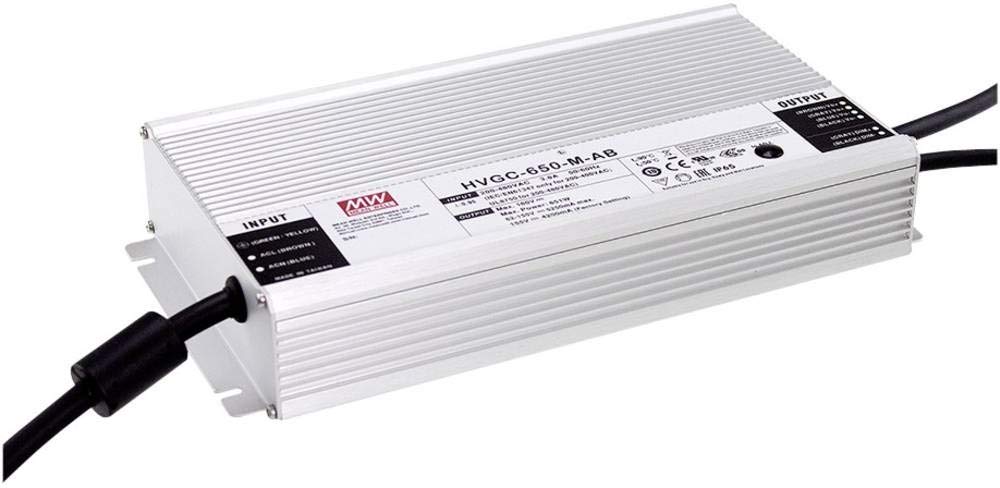

Image: The MEAN WELL HVGC-650-U-AB LED Driver Power Supply. The image shows the silver aluminum casing with input and output cables. The input side has labels for GREEN/YELLOW (FG), AC L (BROWN), and AC N (BLUE). The output side has labels for V+ (BROWN/GRAY), V- (BLUE/WHITE), and dimming wires (PURPLE/PINK, BLACK/DIM). The model number HVGC-650-M-AB is visible on the label.
4. Enstalasyon ak Enstalasyon
Follow these steps for proper installation of the HVGC-650-U-AB LED driver:
- Montaj: Securely mount the power supply in a location that allows for adequate airflow and heat dissipation. Ensure the mounting surface is stable and can support the unit's weight (approximately 59.52 pounds).
- Fil elektrik Antre: Connect the AC input wires to the designated terminals. The input cable typically includes GREEN/YELLOW for Frame Ground (FG), BROWN for AC Line (AC L), and BLUE for AC Neutral (AC N). Ensure all connections are tight and secure.
- Fil elektrik Sòti: Connect the LED load to the output terminals. The output cable typically includes BROWN/GRAY for V+ and BLUE/WHITE for V-. Observe correct polarity.
- Dimming Connections (Optional): If utilizing the 3-in-1 dimming function, connect the dimming control wires (PURPLE/PINK and BLACK/DIM) to your dimming controller. Refer to the operating instructions for details on dimming methods.
- Verifikasyon: Anvan ou mete kouran an nan aparèy la, verifye tout koneksyon fil yo de fwa pou wè si yo kòrèk epi an sekirite.
5. Operating the HVGC-650-U-AB
Once properly installed, the HVGC-650-U-AB will provide a stable power output to the connected LED load. The unit is designed for continuous operation within its specified parameters.
5.1. 3-in-1 Dimming Function
The HVGC-650-U-AB supports three dimming methods:
- 0-10V gradyasyon: Connect a 0-10V DC signal to the dimming control wires. A 10V signal typically corresponds to 100% brightness, and 0V to minimum brightness.
- PWM Signal Dimming: Connect a Pulse Width Modulation (PWM) signal to the dimming control wires. The duty cycle of the PWM signal controls the brightness level.
- Resistance Dimming: Connect a variable resistor between the dimming control wires. The resistance value will determine the output brightness.
Ensure the dimming controller is compatible with the 3-in-1 dimming interface of the HVGC-650-U-AB.
6. Antretyen
The HVGC-650-U-AB is designed for reliable operation with minimal maintenance. However, periodic checks are recommended:
- Netwayaj: Keep the unit clean and free from dust and debris, especially around ventilation areas. Use a soft, dry cloth for cleaning. Do not use liquid cleaners.
- Tcheke Koneksyon: Enspekte tout koneksyon fil elektrik yo detanzantan pou asire yo rete byen fèm epi yo pa gen korozyon.
- Tcheke anviwònman an: Asire w ke anviwònman operasyon an rete nan limit tanperati ak imidite espesifye yo.
NAN. Depanaj
If you encounter issues with your HVGC-650-U-AB, refer to the table below for common problems and solutions:
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Pa gen pwodiksyon pouvwa | No AC input power; Incorrect wiring; Internal fault | Check AC power source and circuit breaker. Verify input wiring. If problem persists, contact support. |
| Sòti voltage kòrèk | Overload; Short circuit; Incorrect dimming setting | Reduce load. Check for short circuits in output wiring. Verify dimming control signal. |
| Dimming pa travay | Incorrect dimming wiring; Incompatible controller; Dimming signal issue | Check dimming wire connections. Ensure controller is compatible. Verify dimming signal output. |
8. Espesifikasyon teknik
Key specifications for the MEAN WELL HVGC-650-U-AB LED Driver Power Supply:
| Karakteristik | Detay |
|---|---|
| Nimewo Modèl | HVGC-650-U-AB |
| Mak | BYEN VLE |
| Sorti pouvwa | 649.6W |
| Sòti Voltage Range | 24-58V |
| Rating aktyèl | 11.2 Amps |
| Fonksyon gradyasyon | 3-in-1 (0-10V, PWM signal, resistance) |
| Frekans minimòm | 60 Hz |
| Dimansyon pwodwi | 11.02 x 5.67 x 1.91 pous |
| Pwa | 59.52 liv |
| Dat Premye Disponib | 10 out 2018 |
9. Garanti ak sipò
Pou enfòmasyon sou garanti a ak sipò teknik, tanpri al gade paj ofisyèl MEAN WELL la. websit la oubyen kontakte distribitè otorize ou a. Kenbe resi acha ou a pou reklamasyon garanti.
