Schlage S-6000 Touchpad dijital Manyèl Itilizatè Pòt Lock

Entwodiksyon

This manual provides detailed instructions for the installation, operation, and maintenance of your Schlage S-6000 Digital Touchpad Door Lock. Please read this manual thoroughly before installation and use to ensure proper function and security.

The Schlage S-6000 is designed to provide advanced security for your home, offering multiple access methods including PIN codes, RFID cards, and fobs, along with an emergency manual override key.

Pwodwi souview

Karakteristik kle

• Multiple Access Methods: PIN codes, RFID cards, Fobs, and Emergency Manual Override Key.
• User Capacity: Supports up to 8 different user PIN codes and cards.
• Temporary Access: Ability to create temporary access codes for guests or contractors.
• Weather Resistant: Tested to IP54 standards for durability against environmental elements.
• Double Locking Feature: Deactivates the touchpad and cards for enhanced security when at home.
• Built-in Alarm: Alerts if the door is left unlocked.

Eleman

The Schlage S-6000 Digital Touchpad Door Lock system includes the following main components:

• Exterior Unit with Touchpad
• Interior Unit with Battery Compartment and Manual Locking Mechanism
• Kat RFID
• Fobs
• Stick-on Patches
• Emergency Manual Override Key

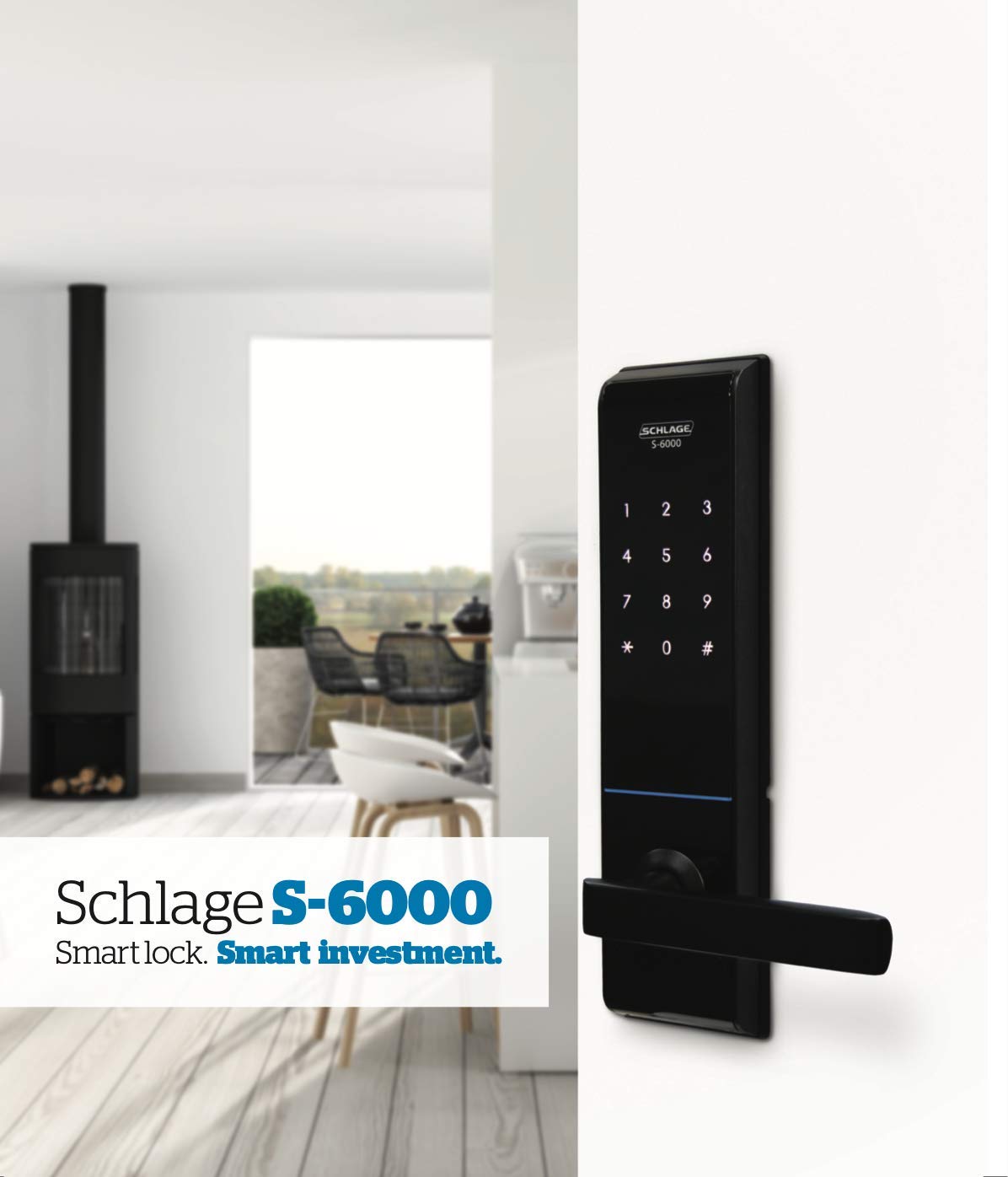

Imaj: Devan view of the Schlage S-6000 Digital Touchpad Door Lock.

Imaj: Devan (agoch) ak dèyè (adwat) views of the Schlage S-6000 Digital Touchpad Door Lock, showing the exterior keypad and interior locking mechanism.

Image: Various access methods including RFID cards, a fob, and stick-on patches for the Schlage S-6000 lock.

Kontni pake

Pake pwodwi a gen ladan:

• Schlage S-6000 Digital Touchpad Door Lock (Exterior and Interior Units)
• Battery (for initial power)
• RFID Cards, Fobs, and/or Stick-on Patches (quantity may vary)
• Emergency Manual Override Key
• Materyèl enstalasyon

Enstalasyon ak Enstalasyon

Proper installation is crucial for the security and functionality of your Schlage S-6000 lock. It is recommended to follow the detailed installation guide provided with your product packaging. Below are general considerations:

Door Requirements

• Epesè Pòt: Suitable for doors with a thickness of 40mm to 90mm.
• Backset: Requires a 70mm backset.

Enstalasyon batri

1. Locate the battery compartment on the interior unit of the lock.
2. Louvri kouvèti batri a.
3. Mete pil espesifye yo, asire polarite ki kòrèk la.
4. Fèmen kouvèti batri a byen.

Nòt: Always use high-quality alkaline batteries for optimal performance and longevity. Replace all batteries simultaneously when needed.

Enstriksyon Operasyon

Accessing with PIN Codes

1. Touche klavye a pou aktive li.
2. Enter your registered PIN code.
3. Peze kle '#' la pou konfime.
4. The lock will unlock, allowing entry.

Nòt: The lock supports up to 8 different user PIN codes. Refer to the full manual for instructions on adding, modifying, or deleting PIN codes.

Accessing with RFID Cards/Fobs/Stick-on Patches

1. Present your registered RFID card, fob, or stick-on patch to the card reader area on the exterior unit.
2. The lock will emit an audible signal and unlock.

Nòt: Ensure your RFID device is properly registered with the lock. Refer to the full manual for registration procedures.

Emergency Manual Override Key

In case of battery depletion or electronic malfunction, the lock can be opened using the provided emergency manual override key. Insert the key into the keyhole and turn to unlock.

Kòd Aksè Tanporè

The S-6000 allows for the creation of temporary access codes, ideal for contractors or guests requiring short-term entry. Consult the detailed programming instructions in the complete manual for setting up and managing temporary codes.

Double Locking Feature

For enhanced security when you are inside your home, activate the double locking feature. This deactivates the exterior touchpad and RFID card reader, preventing unauthorized entry even with a valid code or card. Refer to the full manual for activation and deactivation steps.

Alam entegre

The lock features a built-in alarm that activates if the door is left unlocked for an extended period, providing an audible reminder to secure your premises.

Antretyen

To ensure the longevity and optimal performance of your Schlage S-6000 Digital Touchpad Door Lock, follow these maintenance guidelines:

• Netwayaj: Wipe the exterior unit with a soft, damp twal. Evite pwodui netwayaj abrazif oswa solvan ki ka domaje fini an oswa konpozan elektwonik yo.
• Ranplasman batri: Replace batteries promptly when the low battery indicator appears. Always replace all batteries at the same time with new, high-quality alkaline batteries.
• Verifikasyon mekanik: Periodically check that all screws are tight and the lock operates smoothly. Do not lubricate the electronic components.

Depanaj

If you encounter issues with your Schlage S-6000 lock, refer to the following common troubleshooting steps:

• Kadna a pa reponn: Check the batteries. If they are low or depleted, replace them. Ensure the battery compartment connections are clean and secure.
• PIN Code Not Working: Verify that the correct PIN code is being entered. Ensure the keypad is clean and free from obstructions. Re-enter the PIN carefully.
• RFID Card/Fob Not Working: Ensure the card/fob is properly registered. Try presenting it closer to the reader.
• Lock Mechanism Sticking: Check for any physical obstructions around the latch or deadbolt. Ensure the door frame is aligned correctly.
• Alarm Sounds Unexpectedly: Check if the door is fully closed and latched. Review the settings for the built-in alarm.

For persistent issues, consult the comprehensive troubleshooting section in the full product manual or contact customer support.

Espesifikasyon teknik

Garanti ak sipò

Enfòmasyon sou Garanti

The Schlage S-6000 Digital Touchpad Door Lock comes with a two-year guarantee from the date of purchase. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase for warranty claims.

Sipò pou Kliyan

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Schlage customer support. Refer to the contact information provided in your product packaging or on the official Schlage websit.
