CATA E-120-G Exhaust Fan User Manual

1. Entwodiksyon

Thank you for choosing the CATA E-120-G Exhaust Fan. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new exhaust fan. Please read these instructions carefully before use and retain them for future reference.

Figi 1: Devan view of the CATA E-120-G Exhaust Fan.

2. Enstriksyon Sekirite Enpòtan

Pou diminye risk pou dife, chòk elektrik, oswa blesi sou moun, obsève bagay sa yo:

• Li tout enstriksyon yo anvan ou enstale oswa fè antretyen sou vantilatè sa a.
• Installation must be carried out by a qualified electrician in accordance with all local and national electrical codes.
• Asire w ke ekipman pou kouran an dekonekte anvan enstalasyon, antretyen oswa netwayaj.
• Aparèy sa a pa fèt pou itilize pa moun (ki gen ladan timoun) ki gen kapasite fizik, sansoryèl oswa mantal redwi, oswa ki pa gen eksperyans ak konesans, sof si yo te bay sipèvizyon oswa enstriksyon konsènan itilizasyon aparèy la pa yon moun ki responsab sekirite yo. .
• Timoun yo ta dwe sipèvize pou asire ke yo pa jwe ak aparèy la.
• Pa sèvi ak fanatik sa a avèk nenpòt aparèy kontwòl vitès solid.
• Do not use the fan in areas where water or other liquids may come into contact with electrical components. The fan is water-resistant but not submersible.
• Ensure proper ventilation is provided to prevent back-drafting of gases from open-flame appliances.
• The fan is designed for outdoor usage in bathrooms, ensuring proper air extraction.

3. Pake kontni

Tanpri tcheke pake a pou atik sa yo:

• CATA E-120-G Exhaust Fan unit
• Manyèl Enstriksyon (dokiman sa a)
• Materyèl pou monte (vis, ploge miray) - (Assumed, as typical for such products)

4. Enstriksyon Enstalasyon

The CATA E-120-G exhaust fan is designed for wall or ceiling mounting, typically in bathrooms for outdoor exhaust.

4.1. Preparasyon sit

• Choose a suitable location for installation, ensuring adequate space for the fan unit and ducting.
• The fan requires a circular opening with a diameter of approximately 118 mm (ØA for E GLASS -120 in the dimensions table).
• Ensure the mounting surface is flat and strong enough to support the fan.

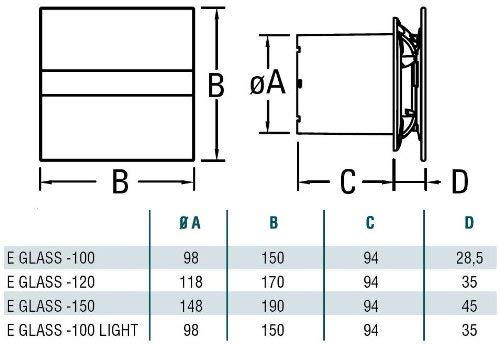

Figure 2: Dimensions for CATA E-Glass series fans. For E-120-G, refer to the 'E GLASS -120' row.

4.2. Enstalasyon Vantilatè a

1. Carefully remove the front glass panel by gently pulling it away from the main body.
2. Position the fan body into the prepared opening.
3. Mark the drilling points for the mounting screws through the holes on the fan's base.
4. Fè twou epi mete ploge miray si sa nesesè.
5. Secure the fan body to the wall/ceiling using appropriate screws.

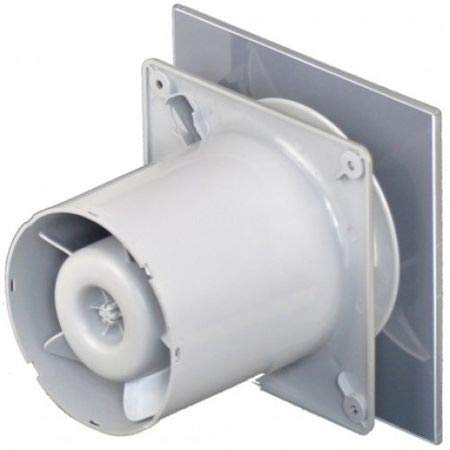

Figi 3: Dèyè view of the fan, illustrating the duct connection and mounting points.

Figure 4: Illustration of the fan body being inserted into the duct opening.

4.3. Koneksyon elektrik

AVÈTISMAN: Electrical connections must be performed by a qualified electrician. Ensure power is disconnected at the main circuit breaker before proceeding.

1. Locate the electrical terminal block inside the fan unit.
2. Connect the live (L), neutral (N), and earth (E) wires from your power supply to the corresponding terminals on the fan.
3. For models with a timer or humidity sensor (if applicable to your specific E-120-G variant), refer to the specific wiring diagram for additional connections (e.g., switched live 'SL' for timer function).
4. Asire w ke tout koneksyon an sekirite epi byen izole.
5. Replace the front glass panel, ensuring it clicks securely into place.

Figi 5: Egzample wiring diagram for models with timer or hygrostat functions. Consult a qualified electrician for proper connection.

5. Operasyon Enstriksyon

The CATA E-120-G exhaust fan is designed for simple operation.

• Limen/Etenyen: The fan is typically connected to a light switch or a dedicated fan switch in your bathroom. Flipping the switch will turn the fan on or off.
• Automatic Operation (if applicable): Some variants of the E-Glass series may include features like a timer, humidity sensor (Hygro), or infrared presence sensor (PIR). If your model has these features, the fan will operate automatically based on the detected conditions or set time. The E-120-G is a standard model, but other E-Glass models offer these advanced features.
• Efikasite enèji: The E-120-G is designed for high energy efficiency, consuming approximately 8 Watts during operation.

Figure 6: The fan is designed for energy efficiency, consuming approximately 8 Watts.

Figi 7: Plis paseview of CATA E-Glass Series features, highlighting energy efficiency and low noise operation.

6. Antretyen ak netwayaj

Regular cleaning will ensure optimal performance and extend the lifespan of your CATA E-120-G exhaust fan.

1. AVÈTISMAN: Always disconnect the power supply to the fan at the main circuit breaker before cleaning or performing any maintenance.
2. Front Panel Cleaning: Gently remove the front glass panel. Clean it with a soft, damp cloth and a mild, non-abrasive detergent. Dry thoroughly before reattaching.
3. Netwayaj lam vantilatè: Carefully wipe the fan blades and the interior of the fan housing with a soft, damp cloth. Avoid using excessive water or harsh chemicals.
4. Reyasanblaj: Once all parts are clean and dry, carefully reattach the front glass panel, ensuring it is securely fastened.
5. Do not lubricate the motor. The motor is permanently lubricated.

NAN. Depanaj

If you experience issues with your CATA E-120-G exhaust fan, refer to the following common problems and solutions:

Si pwoblèm nan pèsiste apre ou fin eseye solisyon sa yo, tanpri kontakte sèvis kliyan.

8. Espesifikasyon

Remak: Espesifikasyon yo ka chanje san avètisman alavans pou amelyore pwodwi a.

9. Enfòmasyon sou Garanti

The CATA E-120-G Exhaust Fan comes with a standard manufacturer's warranty. Please refer to the warranty card included with your purchase or contact your retailer for specific warranty terms and conditions. Keep your purchase receipt as proof of purchase for warranty claims.

This warranty typically covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, misuse, abuse, accident, or unauthorized repairs.

10. Sipò pou Kliyan

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact your local CATA distributor or the retailer from whom you purchased the product.

Lè w ap kontakte sipò a, tanpri gen enfòmasyon sa yo pare:

• Product Model: CATA E-120-G
• Dat Achte
• Deskripsyon pwoblèm nan

You may also visit the official CATA websit la pou plis enfòmasyon ak resous sipò: www.cata.com (Nòt: Sa a se yon espas rezève URL, tanpri verifye ofisyèl aktyèl la website for CATA products in your region.)
