1. Entwodiksyon
Welcome to the user manual for your new axion Electrode Pads. These high-quality electrode pads are designed for use with TENS and EMS devices, offering effective pain relief and muscle stimulation. Please read this manual carefully before use to ensure safe and optimal operation.
2. Enfòmasyon sou Sekirite
Avètisman enpòtan:
- Do not use on patients with pacemakers, severe cardiac arrhythmias, epilepsy, open wounds, or diseased skin.
- It is strongly advised against using TENS devices on patients suffering from epilepsy.
- Electrodes should not be applied to open wounds or diseased skin.
- Avoid applying electrodes near the carotid artery, directly over the heart, on the larynx, or over large metal implants.
- Always consult your doctor before use.
Enfòmasyon jeneral:
- These pads can aid in pain relief, promote blood circulation, and support muscle building.
3. Pwodwi souview
The axion electrode pads are self-adhesive, reusable pads designed for various TENS and EMS applications. They feature a 3.5 mm snap connector for broad compatibility.
Image: A set of 12 axion electrode pads, showing their rectangular shape and snap connector.
Karakteristik pwodwi:
- Gwosè: 100 x 50 mm (10x5 cm) for universal body application.
- Konektè: 3.5 mm snap connector.
- Adhesion: Excellent adhesive strength for multiple uses (up to 20 treatments).
- Kondiktivite: High conductivity for effective current therapy.
- Materyèl: Skin-friendly, latex-free, with a soft insulation layer, conductive carbon layer, and self-adhesive premium gel layer.
- Sètifikasyon: Certified medical product from a German manufacturer.

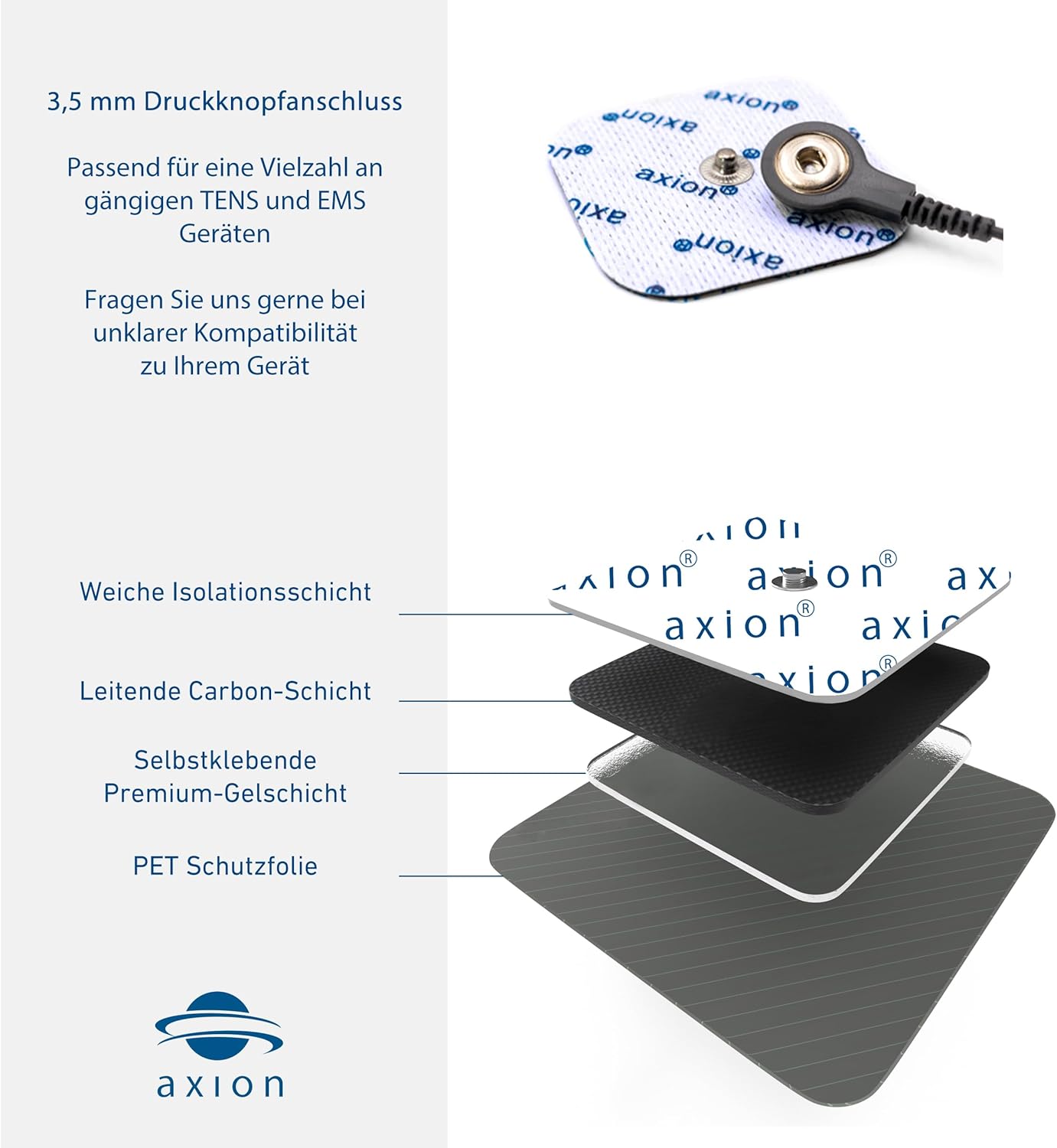

Imaj: Yon eksplozyon view diagram illustrating the layers of the electrode pad: PET protective film, self-adhesive premium gel layer, conductive carbon layer, and soft insulation layer, with a 3.5 mm snap connector.
4. Konpatibilite
These replacement electrodes with a 3.5mm snap connector are compatible with a wide range of TENS and EMS devices. Please verify your device's connector type before purchase.
Aparèy konpatib (Egzanpamples):
- Sanitas: SEM 40, SEM 41, SEM 42, SEM 43, SEM 44
- Beurer: EM 40, EM 41, EM 80 (NOT compatible with EM59!)
- Hydas
- Bluetens
NOT Compatible With:
- Beurer EM59
- Compex
Image: A graphic detailing compatible and incompatible TENS/EMS device brands and models, highlighting the 3.5mm snap connector.
5. Enstalasyon
- Prepare po a: Ensure the skin area where the electrodes will be applied is clean, dry, and free of oils, lotions, or hair. This maximizes adhesion and conductivity.
- Konekte ak aparèy: Connect the electrode pads to your TENS or EMS device using the 3.5 mm snap connector. Ensure a secure connection.
- Retire fim pwoteksyon: Carefully peel the electrode pad from its protective film. Retain the film for storage after use.
- Aplike sou po: Place the adhesive side of the electrode pad firmly onto the desired skin area (e.g., neck, shoulder, back, thigh). Ensure full contact with the skin.
Image: A person with electrode pads applied to their back and thigh, demonstrating versatile application for TENS and EMS.
6. Operasyon Enstriksyon
Once the electrodes are properly connected and applied, operate your TENS or EMS device according to its specific user manual. The axion electrode pads are designed to effectively transmit the electrical impulses from your device to the target area.
- Pain Relief (TENS): Use for non-medicinal pain relief for conditions such as back pain, neck pain, sciatica, heel pain, and other types of pain.
- Muscle Training (EMS): Utilize for gentle and targeted muscle training to achieve your athletic goals.
- Electrostimulation Massage: Apply for relaxing muscles and promoting overall wellness.
Image: A person with electrode pads on their upper back, illustrating their use for pain relief and muscle training.
7. Antretyen
- Apre itilizasyon: After each TENS/EMS application, carefully peel the electrode pad from your skin.
- Depo: Re-apply the electrode pad to its original protective film. This helps maintain the adhesive quality and extends the lifespan of the pads. Store them in a cool, dry place, preferably in their original sealed bag.
- Viv lavi: With proper care, each pad can be reused for up to 20 treatments.
- Enhancing Lifespan: Using a contact spray can further increase the lifespan of the electrodes.
- Netwayaj: Do not wash the electrode pads with water or cleaning agents, as this can damage the adhesive gel.
Image: A hand peeling an electrode pad from its protective film, demonstrating how to store them for reuse.
NAN. Depanaj
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Pòv adezyon | Skin is not clean/dry; pad is old/worn out; protective film not used for storage. | Clean and dry skin thoroughly before application. Re-apply pad to protective film after each use. Replace pads if adhesion is consistently poor. Consider using a contact spray. |
| Weak or inconsistent current sensation | Poor connection to device; pad not fully adhering to skin; pad is old/worn out. | Ensure snap connector is securely attached. Press pad firmly onto skin to ensure full contact. Replace pads if conductivity is compromised. |
| Iritasyon po | Allergic reaction to adhesive; prolonged use in one spot; skin not clean. | Discontinue use if irritation persists. Try applying to a different area. Ensure skin is clean before application. Consult a doctor if severe. |
9. Espesifikasyon
| Karakteristik | Detay |
|---|---|
| Non pwodwi | axion Electrode Pads (10x5 cm) |
| Nimewo Modèl | ZK-A2IE-X6BJ |
| Kantite | 12 pieces per set |
| Dimensions (each pad) | 10 cm x 5 cm (100 x 50 mm) |
| Kalite Connector | 3.5 mm Snap Connector |
| Dimansyon pwodwi (anbalaj) | 19 x 12.5 x 1.5 cm |
| Pwa atik | 127.01 gram |
| Manifakti | axion GmbH |
| Peyi orijin | Lachin |
| Medical Device Certification | Certified Medical Product |
10. Garanti & Sipò
As a certified medical product from a German manufacturer, axion stands behind the quality of its electrode pads. For any questions regarding TENS & EMS devices or these electrode pads, our medical specialists are available to assist you by phone.
Please refer to the packaging or the official axion websit la pou plis detay sou garanti a ak enfòmasyon pou kontakte yo.
Manifakti: axion GmbH
Magazen mak: Visit the axion Store on Amazon.de
