Forney 85653 Spool Gun Instruction Manual

1. Pwodwi souview

The Forney 85653 Spool Gun is an accessory designed for use with Forney Multi-Process welding machines, specifically compatible with Forney 322 and 324 models. This spool gun facilitates the welding process by providing a dedicated wire feed system for aluminum and other soft wires, which can be challenging to feed through standard MIG gun liners.

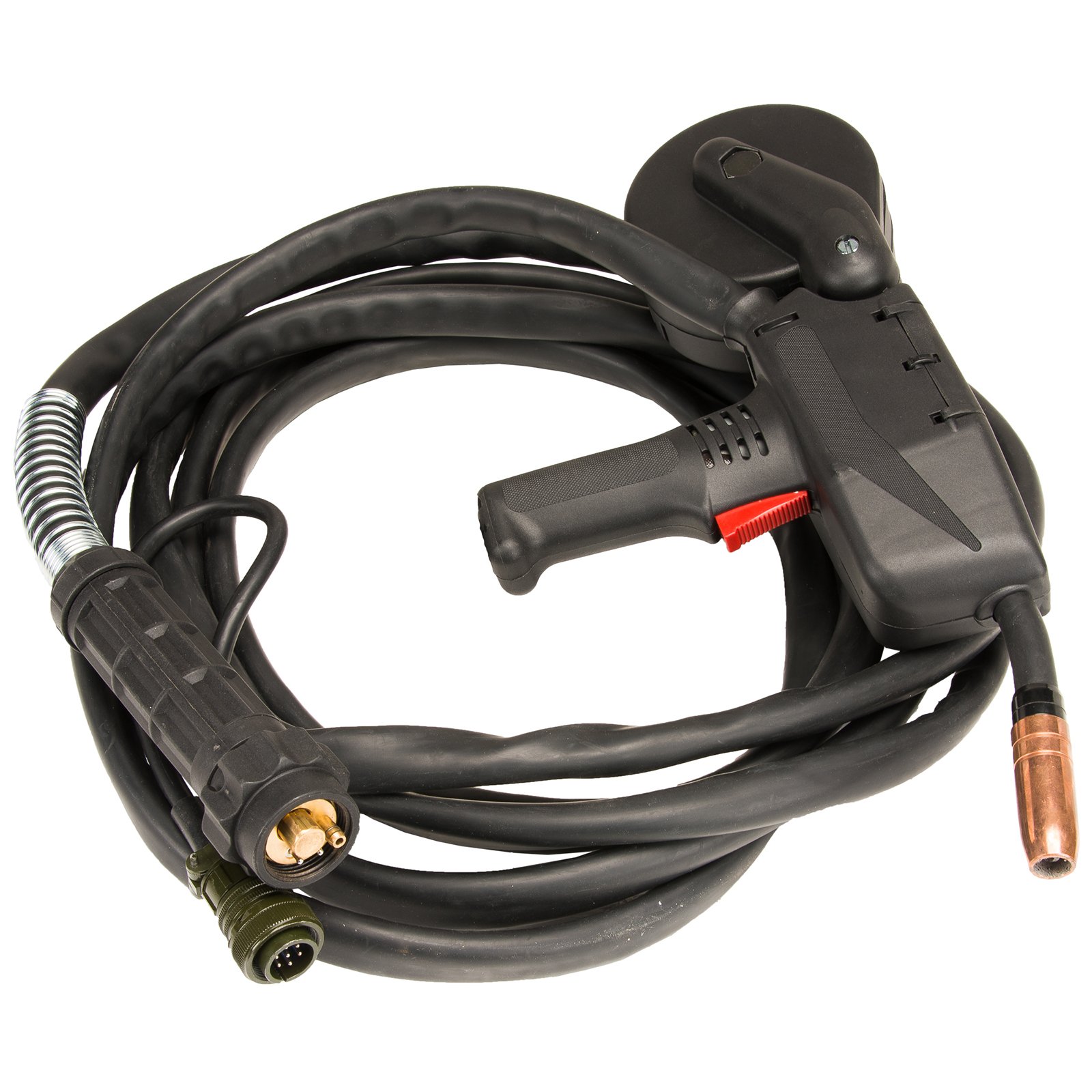

Figure 1: The Forney 85653 Spool Gun. This image displays the complete spool gun unit, including its ergonomic handle, wire feed housing, and the integrated Euro-connect cable.

Karakteristik kle:

• Consommables: Utilizes Tweco style 1 consumables for wide availability and ease of replacement.
• Koneksyon: Features a Euro-connect style cable for secure and efficient attachment to compatible welding machines.
• Integrated Gas Line: The gas line is integrated within the cable, simplifying setup and operation.
• Longè kab: Provides an overall cable length of 20 feet (approximately 6.1 meters) for extended reach.
• Konpatibilite: Designed to fit Forney 322 and Forney 324 Multi-Process Welders.

2. Enfòmasyon sou Sekirite

Always prioritize safety when operating welding equipment. Failure to follow safety precautions can result in serious injury or death. Refer to your welding machine's primary instruction manual for comprehensive safety guidelines.

• Pwoteksyon pou je ak figi: Always wear a welding helmet with appropriate shade lenses to protect against arc flash and sparks.
• Pwoteksyon kò: Wear flame-resistant clothing, heavy-duty gloves, and safety shoes to protect against burns and electrical shock.
• Vantilasyon: Ensure adequate ventilation to remove welding fumes and gases from the work area. If natural ventilation is insufficient, use local exhaust ventilation or respirators.
• Sekirite elektrik: Ensure the welding machine is properly grounded. Never operate equipment with damaged cables or connections. Avoid welding in wet conditions.
• Prevansyon dife: Keep a fire extinguisher nearby. Remove all flammable materials from the welding area. Be aware of hot metal and sparks.
• Fume and Gas Hazards: Welding fumes and gases can be hazardous to your health. Read and understand the Material Safety Data Sheets (MSDS) for the materials being welded and the welding consumables.

3. Enstalasyon ak Enstalasyon

3.1 Connecting the Spool Gun to the Welder

1. Ensure the welding machine is turned off and disconnected from the power source.
2. Locate the Euro-connect receptacle on your Forney 322 or 324 Multi-Process Welder.
3. Align the Euro-connect fitting of the spool gun cable with the receptacle on the welder.
4. Push the fitting firmly into the receptacle and tighten the retaining nut clockwise until secure. This connection also establishes the gas flow and electrical contact.
5. Konekte tè a clamp from the welding machine to a clean, bare metal section of your workpiece.

3.2 Loading Welding Wire

1. Open the wire compartment cover on the spool gun.
2. Place the wire spool onto the spindle, ensuring it rotates freely and the wire feeds off the top of the spool towards the drive rollers.
3. Thread the wire through the guide tube and into the drive rollers.
4. Close the drive roller tension arm and adjust the tension. The tension should be sufficient to feed the wire without slipping, but not so tight as to deform the wire.
5. Feed the wire through the gun liner until it exits the contact tip. You may need to press the trigger briefly (with power on, but gas off and no arc) to advance the wire.
6. Close the wire compartment cover.

3.3 Consumable Installation (Tweco Style 1)

1. Ensure the welding machine is off.
2. Unscrew the nozzle from the gun head.
3. Unscrew the contact tip from the diffuser.
4. Install the correct size contact tip for your welding wire by screwing it firmly into the diffuser.
5. Re-attach the nozzle by screwing it onto the gun head. Ensure it is snug but do not overtighten.

4. Operasyon

4.1 Basic Welding Procedure

1. Asire w ke tout prekosyon sekirite yo an plas.
2. Turn on the welding machine and set the appropriate voltage and wire feed speed for your material and wire type. Refer to your welder's manual or a welding chart for recommended settings.
3. Open the shielding gas cylinder valve and set the flow rate (typically 15-25 CFH for MIG welding).
4. Position the workpiece and ensure the ground clamp gen bon kontak.
5. Put on your welding helmet.
6. Position the spool gun nozzle approximately 3/8 to 1/2 inch from the workpiece.
7. Press the trigger to initiate the arc and begin welding. Maintain a consistent travel speed and gun angle.
8. Lage deklanche a pou sispann soude.
9. After welding, turn off the welding machine and close the shielding gas cylinder valve.

4.2 Wire Feed Speed Adjustment

The wire feed speed is typically controlled by the welding machine. Adjust the wire feed speed setting on your Forney 322 or 324 welder according to the wire diameter and material being welded. Proper wire feed speed is crucial for a stable arc and quality weld. Too slow, and the wire will burn back to the tip; too fast, and the wire will stub into the workpiece.

5. Antretyen

Regular maintenance ensures optimal performance and extends the lifespan of your spool gun.

• Netwayaj bouch: Regularly clean spatter from inside the nozzle to ensure proper gas flow and prevent arc instability. Use a nozzle reamer or pliers designed for this purpose.
• Contact Tip Replacement: Replace the contact tip when the bore becomes enlarged or oval-shaped, as this can lead to poor arc stability and wire feeding issues. Ensure the replacement tip matches the wire diameter.
• Drive Roller Inspection: Periodically inspect the drive rollers for wear or debris. Clean them as needed and ensure they are correctly aligned and tensioned for the wire size.
• Enspeksyon kab: Check the entire length of the cable for cuts, abrasions, or damage to the insulation. Damaged cables should be replaced immediately by a qualified technician.
• Netwayaj jeneral: Keep the exterior of the spool gun clean and free of dust and debris.

NAN. Depanaj

This section addresses common issues encountered during spool gun operation.

7. Espesifikasyon teknik

8. Garanti ak sipò

8.1 Enfòmasyon sou Garanti

This Forney 85653 Spool Gun is covered by the manufacturer's warranty. For specific details regarding warranty coverage, duration, and terms, please refer to the warranty card included with your product or visit the official Forney websit la. Kenbe prèv acha ou pou reklamasyon garanti.

8.2 Sipò pou Kliyan

For technical assistance, replacement parts, or any questions not covered in this manual, please contact Forney customer support. Contact information can typically be found on the product packaging or the official Forney websit.
