Acer Aspire Switch 10 SW5-012-16AA User Manual

1. Entwodiksyon

The Acer Aspire Switch 10 SW5-012-16AA is a versatile 2-in-1 detachable touchscreen laptop designed for flexibility and productivity. It combines the functionality of a traditional laptop with the portability of a tablet, allowing users to switch between modes to suit various tasks and environments. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your device.

Figure 1: Acer Aspire Switch 10 in traditional laptop mode.

2. Enstalasyon

2.1 Debale ak Premye Enspeksyon

Upon opening the package, ensure all components are present and undamaged. Your Acer Aspire Switch 10 package should include the laptop unit, AC adapter, and power cord. Inspect the device for any physical damage before proceeding.

2.2 Chaje Aparèy la

Before first use, fully charge your Acer Aspire Switch 10. Connect the AC adapter to the charging port on the device and then to a power outlet. The charging indicator light will illuminate. A full charge typically takes several hours.

2.3 Attaching and Detaching the Keyboard

The Acer Aspire Switch 10 features a magnetic snap hinge for easy attachment and detachment of the keyboard. To attach, align the tablet portion with the keyboard dock and gently push until the magnets engage. To detach, firmly pull the tablet away from the keyboard. Ensure the device is powered off or in sleep mode before detaching to prevent data loss.

Figure 2: Attaching the tablet to the keyboard dock.

3. Operasyon

3.1 Limen/Etenyen

To power on, press and hold the power button until the Acer logo appears. To power off, navigate to the Windows Start menu, select "Power," and then "Shut down."

3.2 Mòd Fonksyònman

The Acer Aspire Switch 10 offers four distinct operating modes:

• Notebook Mode: Konfigirasyon laptop tradisyonèl pou tape ak pwodiktivite.
• Mòd tablèt: Detach the screen for a portable touchscreen experience.
• Mòd Kanpe: Flip the screen around and dock it facing outwards for presentations or media viewing.
• Mòd ekspozisyon: Fold the screen back completely, with the keyboard facing down, ideal for watching videos or interacting with the touchscreen.

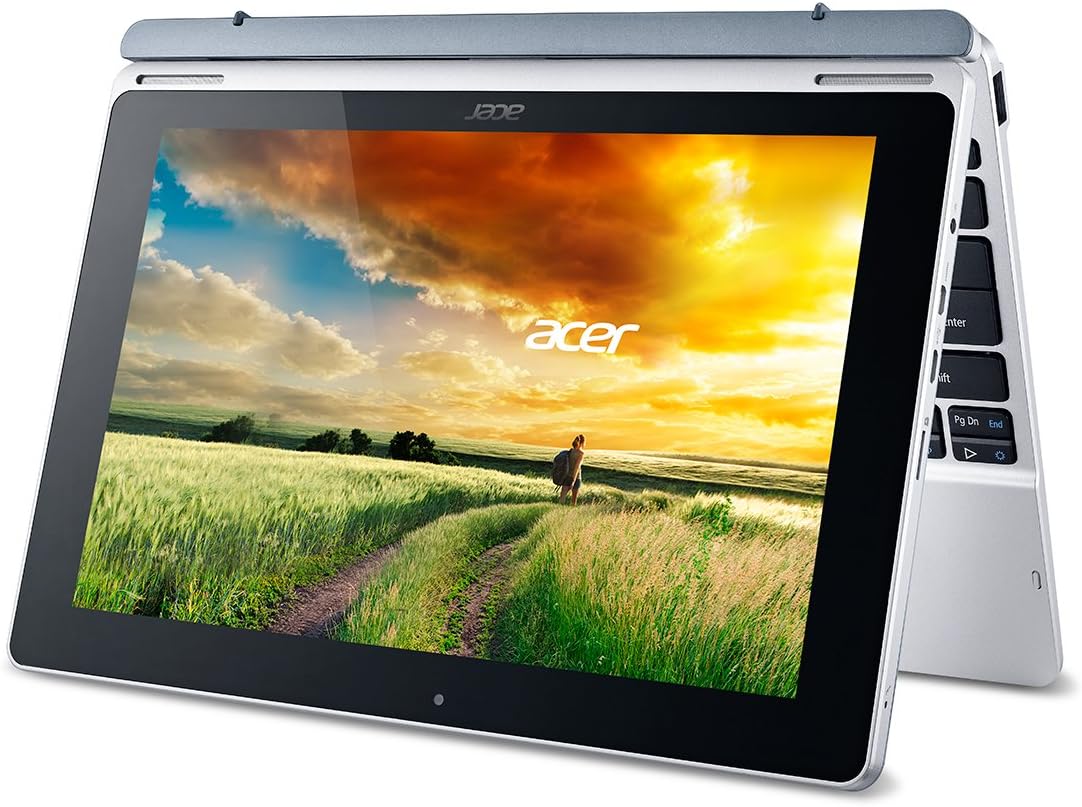

Figure 3: Acer Aspire Switch 10 in tablet mode.

3.3 Navigasyon debaz

The device runs on Windows 8.1 (32-bit) with Bing. You can navigate using the 10.1-inch touchscreen, the keyboard, or the integrated touchpad. Familiarize yourself with Windows 8.1 gestures for optimal touchscreen interaction.

3.4 Koneksyon

The Aspire Switch 10 supports various connectivity options:

• Wi-Fi: 802.11a/b/g/n Wireless LAN with Acer Nplify, featuring MIMO technology (Dual-Band 2.4GHz and 5GHz).
• Bluetooth: Bluetooth 4.0 for connecting wireless peripherals.
• Pò USB: One Micro USB 2.0 port on the tablet and one USB 2.0 port on the keyboard.
• Micro-HDMI: Pou konekte ak ekran ekstèn ki sipòte HDCP.
• Mikwo SD plas: For expanding internal storage.

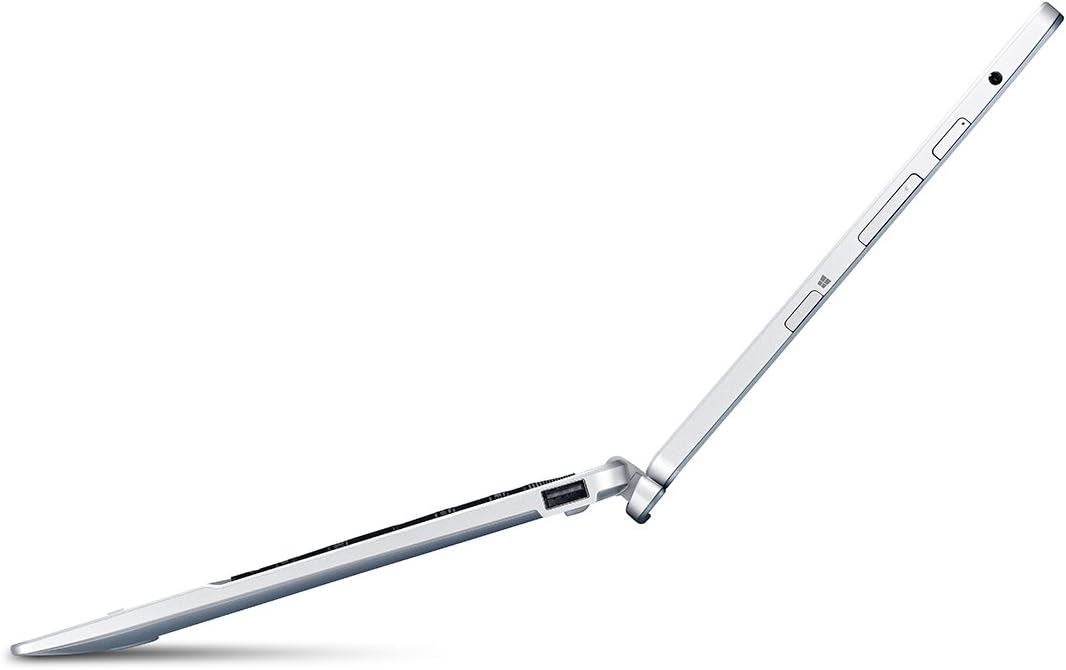

Figi 4: Side view ilistrasyon pò ki disponib yo.

3.5 Lojisyèl pre-enstale

Your device comes with a Microsoft Office 365 Personal 1-Year Subscription (activation code included), providing access to essential productivity applications like Word, Excel, and PowerPoint.

4. Antretyen

4.1 Netwaye Aparèy la

Use a soft, lint-free cloth to clean the screen and exterior surfaces. For stubborn smudges, slightly dampSiye twal la avèk dlo oswa yon solisyon netwayaj ki an sekirite pou ekran. Evite pwodui chimik ki agresif oswa materyèl abrazif.

4.2 Swen Batri

To maximize battery life, avoid extreme temperatures and fully discharging the battery frequently. For long-term storage, charge the battery to about 50% and store the device in a cool, dry place.

4.3 Mizajou lojisyèl

Regularly check for and install Windows updates to ensure your system has the latest security patches and performance improvements. Go to "Settings" > "Update & Security" > "Windows Update" to manage updates.

NAN. Depanaj

5.1 Aparèy la pa limen

If the device does not power on, ensure it is connected to the AC adapter and charging. Press and hold the power button for several seconds. If the issue persists, try connecting to a different power outlet or contact support.

5.2 Klavye a pa reponn

Ensure the tablet is securely docked to the keyboard. Detach and reattach the tablet to re-establish the connection. If the problem continues, restart the device.

5.3 Pèfòmans Ralanti

Close unnecessary applications running in the background. Check for available storage space and consider uninstalling unused programs. Running Windows updates can also improve performance.

6. Espesifikasyon

7. Garanti ak sipò

The Acer Aspire Switch 10 SW5-012-16AA comes with a Yon ane garanti entènasyonal vwayajè limite (ITW). For detailed warranty terms, service, and technical support, please refer to the official Acer support website or contact Acer customer service directly. Keep your proof of purchase for warranty claims.
