Mannesmann M29070 122-Piece Rolling Tool Box

1. Entwodiksyon ak souview

This instruction manual provides essential information for the safe and effective use of your Mannesmann M29070 122-Piece Rolling Tool Box. This comprehensive multi-tool trolley is designed for versatile use, featuring a telescopic handle for easy transport. The set includes a wide selection of sockets and bits made from durable chrome vanadium steel, ensuring reliability for various tasks. It is VPA-GS approved, signifying compliance with safety standards, and offers additional storage capacity for other tools. A 10-year warranty is provided for this product.

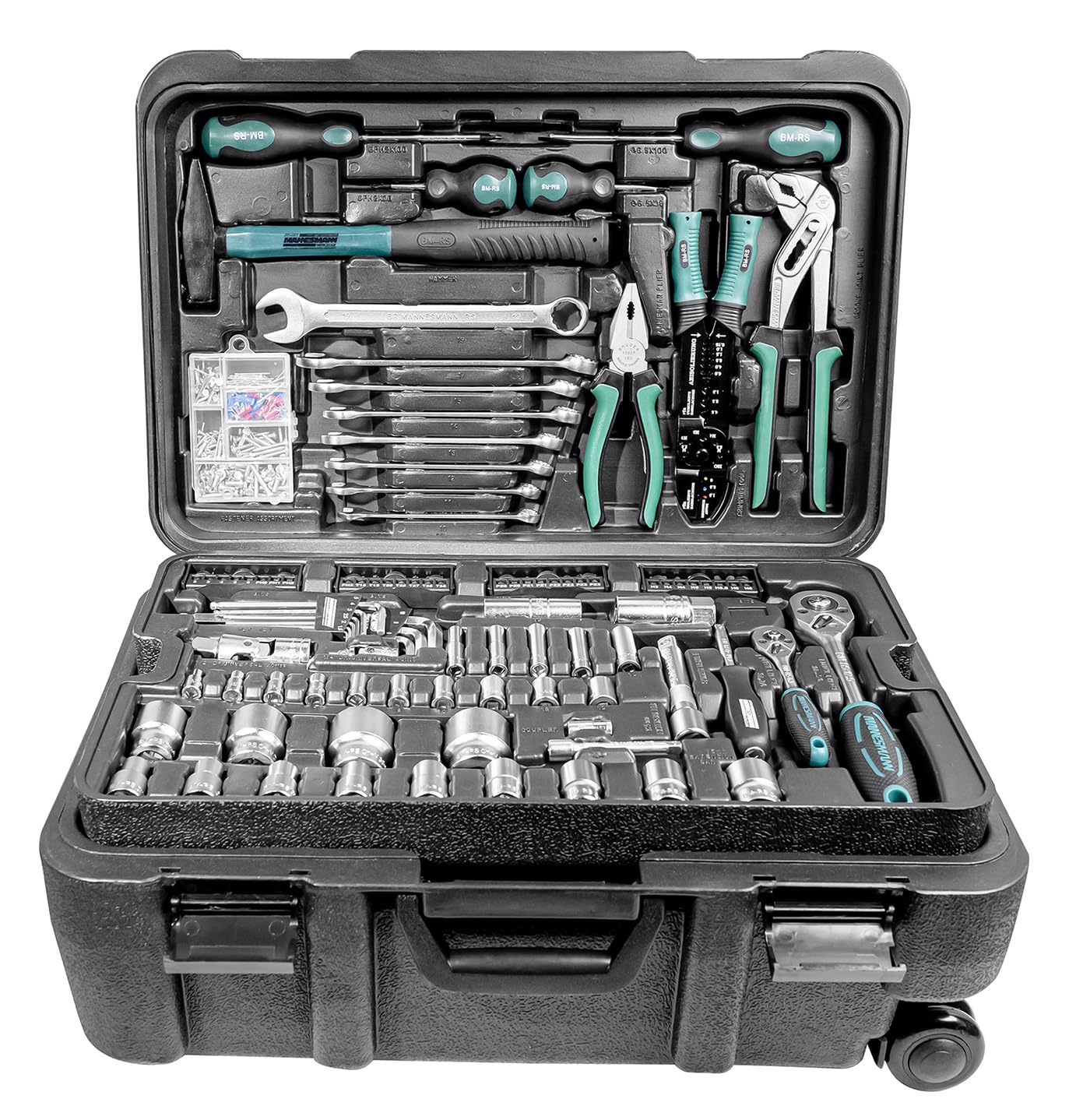

Image: The Mannesmann 122-piece rolling tool box opened, showcasing the full array of tools.

2. Enstalasyon

Follow these steps for the initial setup of your tool box:

1. Debake: Carefully remove the tool box from its packaging. Inspect the case and its contents for any signs of damage that may have occurred during transit.
2. Verifikasyon Kontni: Refer to the 'Specifications' section of this manual to ensure all 122 pieces are present and accounted for.
3. Manch ekstansyon: To utilize the rolling feature, locate the release button on the telescopic handle. Press the button and pull the handle upwards until it fully extends and locks securely into place.
4. Enspeksyon wou: Ensure the wheels are free to rotate and are not obstructed.

Image: The tool box with its telescopic handle extended and wheels, illustrating its rolling capability.

3. Operasyon Enstriksyon

Proper operation ensures efficiency and extends the life of your tools:

1. Opening the Tool Box: Release the two latches located on the front of the tool box. Gently lift the lid to reveal the upper and lower compartments.
2. Accessing Tools: Tools are securely organized in custom-molded trays. Carefully remove the required tool from its designated slot. Always return tools to their correct positions after use.
3. Using the Rolling Function: With the telescopic handle extended, tilt the tool box slightly and pull it using the handle. The integrated wheels allow for easy transportation. Ensure your path is clear of obstacles to prevent tipping.
4. General Tool Use: Always select the appropriate tool for the specific task. Ensure a firm and safe grip on all tools. Apply force steadily and avoid excessive or sudden movements. For specialized tools, consult additional resources if needed.

Image: The tool box fully open, displaying the organized layout of tools.

Imaj: Detaye view of the sockets and bits in the lower compartment.

4. Antretyen

Regular maintenance ensures the longevity and optimal performance of your tools:

1. Netwayaj: After each use, wipe all tools clean of dirt, grease, or debris. Use a dry cloth or a mild, non-abrasive cleaning solution if necessary. Ensure tools are completely dry before storage to prevent rust.
2. Lubrifikasyon: Periodically apply a light machine oil to the moving parts of pliers, wrenches, and ratchets. This helps ensure smooth operation and prevents corrosion.
3. Depo: Always return tools to their designated slots within the tool box. This prevents tools from shifting, becoming damaged, or causing damage to the case. Store the tool box in a dry, secure location, away from direct sunlight, extreme temperatures, and excessive moisture.
4. Enspeksyon: Regularly inspect all tools for signs of wear, damage, or corrosion. Check for loose handles, cracked plastic, or deformed metal. Replace or repair damaged tools immediately to maintain safety and functionality.

Imaj: Detaye view of the wrenches, pliers, and hammer in the upper compartment.

NAN. Depanaj

Seksyon sa a adrese pwoblèm komen ou ka rankontre:

• Missing Tools: If a tool appears to be missing, thoroughly re-check all compartments of the tool box and your immediate work area. Ensure tools are consistently returned to their correct slots after use to prevent misplacement.
• Pati k ap deplase rèd: If a ratchet, plier, or other tool with moving parts feels stiff or difficult to operate, apply a small amount of lubricating oil to the joints. Work the mechanism back and forth until it moves freely.
• Ka domaje: For minor cosmetic damage to the tool box case, assess if it compromises the structural integrity or the safety of the tools. For significant cracks or breaks, consider replacing the case to ensure proper protection for your tools and ease of transport.
• Telescopic Handle Not Extending/Retracting: Check for any debris or obstructions in the handle mechanism. Ensure the release button is fully depressed when attempting to extend or retract the handle.

6. Espesifikasyon

Dimensions (Approximate, Closed Case):

• Longè: 52 cm
• Lajè: 36 cm
• Wotè: 25 cm

Image: Dimensions of the closed tool box.

7. Garanti

This Brüder Mannesmann M29070 122-Piece Rolling Tool Box is covered by a 10-year warranty from the date of purchase. This warranty specifically covers manufacturing defects in materials and workmanship under normal use. It does not cover damage resulting from normal wear and tear, misuse, abuse, alteration, improper maintenance, or unauthorized repairs. Please retain your proof of purchase for any warranty claims.

8. Sipò

For further assistance, technical support, or to inquire about replacement parts, please visit the official Brüder Mannesmann website or contact their customer service department. When contacting support, please have your purchase receipt and the model number (M29070) readily available for faster service.

Brüder Mannesmann Werkzeuge GmbH
Websit: www.br-mannesmann.de
