Grundig RRCD 4305 Freaxx 50

Grundig RRCD 4305 Freaxx 50 CD/MP3 Cassette Radio Instruction Manual

Model: RRCD 4305 Freaxx 50

1. Entwodiksyon

Thank you for choosing the Grundig RRCD 4305 Freaxx 50 CD/MP3 Cassette Radio. This manual provides essential information for the safe and efficient operation of your device. Please read it thoroughly before use and retain it for future reference.

2. Enstriksyon Sekirite

  • Sous pouvwa: Asire ekipman pou pouvwa a voltage matches the rating indicated on the unit.
  • Vantilasyon: Pa bloke ouvèti vantilasyon yo. Kite ase espas otou aparèy la pou yon bon sikilasyon lè.
  • Dlo ak imidite: Do not expose the unit to rain, moisture, or dripping/splashing liquids. Keep away from water sources.
  • Chalè: Avoid placing the unit near heat sources such as radiators, heat registers, stoves, or other heat-producing appliances.
  • Netwayaj: Disconnect the unit from the power source before cleaning. Use a soft, dry cloth.
  • Sèvis: Pa eseye fè antretyen aparèy la tèt ou. Konfye tout antretyen bay pèsonèl sèvis kalifye.
  • Batri: Follow proper polarity when inserting batteries. Do not mix old and new batteries or different types of batteries. Remove batteries if the unit is not used for extended periods.

3. Pwodwi souview

Familiarize yourself with the main components and controls of your Grundig RRCD 4305 Freaxx 50.

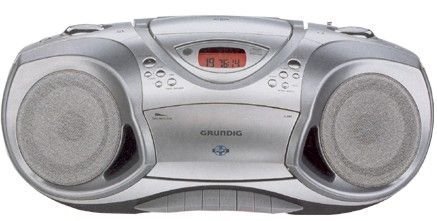

Grundig RRCD 4305 Freaxx 50 CD/MP3 Cassette Radio front view

Figi 1: Devan view of the Grundig RRCD 4305 Freaxx 50, showing the CD compartment, cassette deck, and control buttons.

Kontwòl ak Endikatè:

  • Bouton pouvwa: Limen oswa etenn inite a.
  • Kontwòl Volim: Ajiste nivo pwodiksyon odyo a.
  • Seleksyon Fonksyon: Switches between CD, Radio, Cassette, and AUX modes.
  • Tuning Knob (Radio): Ajiste frekans radyo a.
  • Band Selector (Radio): Selects AM/FM radio bands.
  • CD/MP3 Controls: Play/Pause, Stop, Skip Forward/Backward, Folder Up/Down.
  • Kontwòl kasèt: Play, Stop/Eject, Fast Forward, Rewind, Record.
  • Ekspozisyon: Montre mòd aktyèl la, nimewo tras la, oswa frekans radyo a.

4. Enstalasyon

4.1 Debake

  1. Ak anpil atansyon retire inite a nan anbalaj li yo.
  2. Check for any damage that may have occurred during transit. If damaged, do not operate the unit and contact your dealer.
  3. Kenbe materyèl anbalaj yo pou transpò oswa depo nan lavni.

4.2 Koneksyon pouvwa

The unit can be powered by AC mains or batteries.

AC pouvwa:

  • Connect the supplied AC power cord to the AC IN socket on the rear of the unit.
  • Plug the other end of the power cord into a standard wall outlet.

Pouvwa batri:

  • Louvri kouvèti konpatiman batri a ki anba aparèy la.
  • Insert the required number of 'C' size batteries (not supplied), ensuring correct polarity (+/-).
  • Fèmen kouvèti lòj batri a byen.

4.3 antèn

  • For FM reception, extend the telescopic antenna fully. Adjust its position for optimal signal reception.
  • For AM reception, the unit uses a built-in ferrite bar antenna. Rotate the entire unit for best AM reception.

5. Operasyon Enstriksyon

5.1 Operasyon debaz

  1. Peze a POUVWA bouton pou limen inite a.
  2. Ajiste a VOLIM kontwòl la nan nivo koute ou vle a.
  3. Peze a POUVWA bouton ankò pou fèmen inite a.

5.2 Operasyon radyo

  1. Mete la FONKSYON SELECTOR nan 'RADYO'.
  2. Chwazi bann ou vle a (AM oubyen FM) avèk bouton an. BAND SELECTOR chanje.
  3. Vire a REGLAGE knob to find your desired radio station.
  4. Ajiste antèn la pou resepsyon optimal.

5.3 Lekti CD/MP3

  1. Mete la FONKSYON SELECTOR pou 'CD'.
  2. Open the CD compartment cover by pressing the 'OPEN' button.
  3. Place a CD or MP3 disc onto the spindle with the label side facing up.
  4. Close the CD compartment cover. The unit will read the disc.
  5. Peze a JWE/POZ bouton pou kòmanse lecture.
  6. Sèvi ak la SOTE AVAN/RETIRE bouton pou navige ant tras yo.
  7. For MP3 discs, use the DOSYE ANWO/ANBA buttons to navigate between folders.
  8. Peze a SISPANN bouton pou sispann lèktur.

5.4 Lekti ak Anrejistreman Kasèt

Lektur:

  1. Mete la FONKSYON SELECTOR pou 'KASET'.
  2. Peze a STOP/EJECT bouton pou louvri lòj kasèt la.
  3. Mete yon kasèt ak bò ouvè a anlè.
  4. Fèmen lòj kasèt la.
  5. Peze a JWE bouton pou kòmanse lecture.
  6. Sèvi ak VIT VANSE or RETIRE buttons to quickly move through the tape.
  7. Peze STOP/EJECT to stop playback and open the compartment.

Recording (from Radio/CD/AUX):

  1. Mete yon kasèt vid nan konpatiman an.
  2. Select the desired source (RADIO, CD, or AUX) using the FONKSYON SELECTOR.
  3. Start playback on the source (e.g., play a CD, tune a radio station).
  4. Peze a DOSYE button (usually red) and the JWE button simultaneously on the cassette deck. Recording will begin.
  5. Peze a STOP/EJECT bouton pou fini anrejistreman an.

5.5 Antre Oksilyè (AUX)

  • Connect an external audio device (e.g., smartphone, MP3 player) to the AUX IN jack using a 3.5mm audio cable (not supplied).
  • Mete la FONKSYON SELECTOR nan 'AUX'.
  • Control playback from your external device. The unit will output the audio.

6. Antretyen

6.1 Netwaye inite a

  • Toujou deploge aparèy la nan priz kouran anvan w netwaye.
  • Sèvi ak yon twal mou epi sèk pou siye sifas ekstèn yo.
  • Pa sèvi ak pwodui netwayaj abrazif, sir, oswa solvan paske yo ka domaje fini an.

6.2 Antretyen Lantiy CD

  • Do not touch the CD lens.
  • If the lens is dirty, use a commercially available CD lens cleaner.

6.3 Antretyen kasèt

  • Periodically clean the tape heads, capstan, and pinch roller using a cotton swab lightly moistened with isopropyl alcohol.
  • Demagnetize the tape heads regularly with a tape head demagnetizer to prevent sound degradation.

6.4 Ranplasman batri

  • When battery power is low, the unit's performance may degrade. Replace all batteries with new ones.
  • Refer to section 4.2 for battery insertion instructions.
  • Jete pil yo itilize yon fason responsab selon règleman lokal yo.

NAN. Depanaj

Pwoblèm Kòz posib Solisyon
Pa gen pouvwa Kòd kouran altènatif la pa konekte; Pil yo fin itilize oswa yo pa byen mete. Tcheke koneksyon kòd kouran altènatif la; Ranplase pil yo, asire polarite ki kòrèk la.
Pa gen son Volume too low; Incorrect function selected; Headphones connected. Increase volume; Select correct function (CD/Radio/Tape/AUX); Disconnect headphones.
Disk CD/MP3 a sote oswa li pa jwe Disc dirty or scratched; Disc inserted incorrectly; Lens dirty. Clean or replace disc; Reinsert disc correctly; Clean CD lens.
Resepsyon radyo pòv Antenna not extended/adjusted; Weak signal. Extend and adjust FM antenna; Rotate unit for AM reception; Try moving the unit to a different location.
Cassette playback distorted Tape heads dirty or demagnetized; Worn tape. Clean and demagnetize tape heads; Try a different tape.

8. Espesifikasyon

  • Pwovizyon pou pouvwa: AC 230V ~ 50Hz or DC 9V (6 x 'C' size batteries)
  • Frekans radyo:
    • FM: 87.5 - 108 MHz
    • AM: 522 - 1620 kHz
  • Jwè CD: Supports CD-R/RW, MP3 playback
  • Plato kasèt: Stereo playback and recording
  • Antre odyo: 3.5mm AUX-IN Jack
  • Sòti pouvwa: [Specific wattage, if known, otherwise omit or state 'Typical']
  • Dimansyon (W x H x P): [Specific dimensions, if known, otherwise omit]
  • Pwa: [Specific weight, if known, otherwise omit]

Specifications are subject to change without notice for continuous product improvement.

9. Garanti ak sipò

Grundig products are manufactured to high quality standards and are warranted against manufacturing defects. For detailed warranty information, please refer to the warranty card included with your purchase or visit the official Grundig website. For technical support or service inquiries, please contact your local Grundig service center or authorized dealer.

Ou ka jwenn plis enfòmasyon ak sipò nan Grundig Brand Store.
