1. Pwodwi souview
The Safco Industrial Wire Shelving Add-On Unit is designed to expand your existing Safco Industrial Wire Shelving Starter Unit, creating a continuous shelving system. This unit is ideal for corner applications or extending straight runs, providing robust and versatile storage. It features a durable metallic gray powder coat finish and strong welded wire construction.
Nòt: This is an add-on unit and requires a Safco Industrial Wire Shelving Starter Unit (e.g., Model 5291GR) for complete assembly and stability. Starter Unit and Extra Shelf Packs are sold separately.

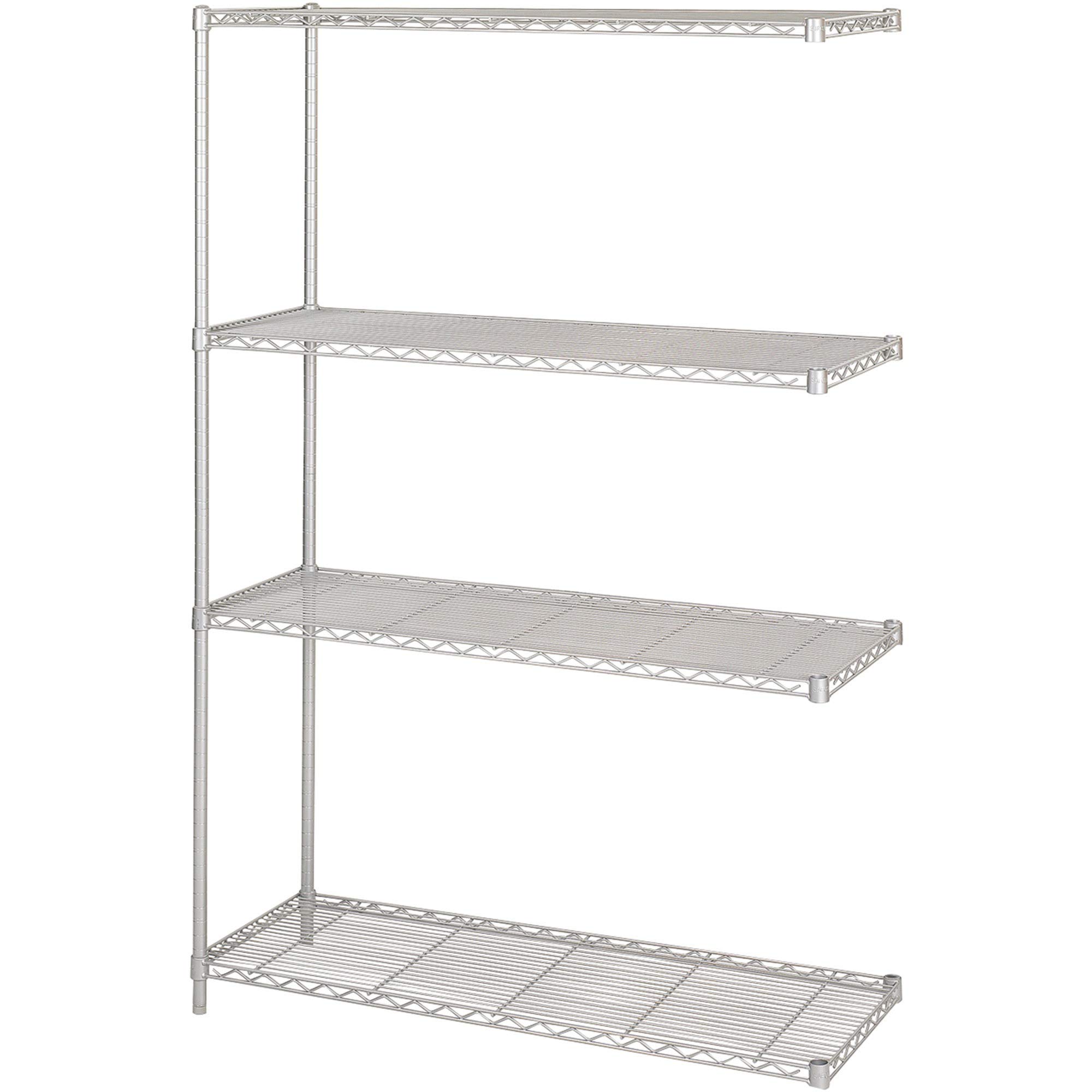

Image 1.1: Safco Industrial Wire Shelving Add-On Unit (Metallic Gray, 48"W x 18"D x 72"H). This unit is designed to connect to an existing starter unit to expand storage capacity.
2. Pwodwi Features
- Dimansyon: 48"W x 18"D x 72"H.
- Eleman: Includes four shelves, two posts, and snap-together clips.
- Kapasite pwa: Rated up to 1000 lbs. per shelf (evenly distributed). Overall capacity is 2500 lbs. (evenly distributed).
- Etajè reglabl: Shelves adjust in 1" increments for customized storage.
- Konstriksyon: Strong welded steel construction with a durable powder coat finish.
- Konpatibilite: Designed for use with Safco Products Starter Unit Model 5291GR, Extra Shelf Pack Model 5293GR, and optional Casters Model 5283 (all sold separately).
3. Lis konpozan yo
Before assembly, ensure all components are present and undamaged. If any parts are missing or damaged, contact Safco customer support.
- 4 x etajè fil
- 2 x Vertical Posts
- Snap-together Clips (sufficient quantity for 4 shelves)
Required (Sold Separately):
- Safco Industrial Wire Shelving Starter Unit
- Rubber Mallet (recommended for assembly)
4. Enstriksyon pou enstalasyon ak asanblaj
This add-on unit is designed for tool-less assembly. Follow these steps carefully to ensure a stable and secure shelving unit. It must be attached to an existing Safco Industrial Wire Shelving Starter Unit.
- Prepare zòn nan: Choose a level surface for assembly. Ensure sufficient space around the existing starter unit where the add-on unit will be attached.
- Atache pòs yo: Position the two vertical posts of the add-on unit next to the existing starter unit's posts where you intend to connect them.
- Install Clips: For each shelf, attach four snap-together clips to the vertical posts at the desired height. Ensure the clips are positioned at the same height on all posts for even shelf placement. The clips should snap securely into the grooves on the posts.
- Mete etajè yo: Carefully lower a wire shelf onto the installed clips. Press down firmly on all four corners of the shelf until it seats securely over the clips. A rubber mallet can be used gently to tap the shelf into place if needed.
- Connect to Starter Unit: The add-on unit's shelves will connect to the starter unit's shelves using additional clips (typically included with the starter unit or add-on unit). Ensure these connection points are secure to form a continuous unit.
- Repete pou etajè ki rete yo: Install the remaining three shelves following steps 3 and 4, adjusting heights as desired.
- Tcheke final la: Once all shelves are in place, gently shake the entire shelving system to ensure it is stable. Verify all clips are securely fastened and shelves are level.
Video 4.1: Official Safco Industrial Wire Shelving Assembly Guide. This video demonstrates the tool-less assembly process and how shelves are secured with clips, applicable to both starter and add-on units.
5. Operasyon Enstriksyon
The Safco Industrial Wire Shelving Add-On Unit is designed for heavy-duty storage. To ensure safe and effective use:
- Distribisyon chaj: Always distribute weight evenly across each shelf. Avoid concentrating heavy items in one small area.
- Limit pwa: Do not exceed the maximum weight capacity of 1000 lbs. per shelf or the overall unit capacity of 2500 lbs. (when evenly distributed). Overloading can lead to structural failure and injury.
- Estabilite: Ensure the unit is always connected to a stable starter unit. Avoid placing items that could cause the unit to become top-heavy or unstable.
- Plasman: Place heavier items on lower shelves for increased stability.
6. Antretyen
Regular maintenance will prolong the life and appearance of your shelving unit.
- Netwayaj: Wipe down shelves and posts with a damp cloth and mild detergent as needed. Avoid abrasive cleaners that could damage the powder coat finish.
- Enspeksyon: Periodically check all snap-together clips and connections to ensure they remain secure. Tighten any loose connections.
- Domaj: If any part of the unit becomes bent or damaged, discontinue use and replace the affected components to maintain structural integrity.
NAN. Depanaj
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Shelves are not level | Clips not installed at the same height; clips not fully seated. | Remove the shelf, re-position clips to ensure they are at identical heights on all posts, and firmly press the shelf down until clips are fully seated. Use a rubber mallet if necessary. |
| Unit feels unstable or wobbly | Not properly connected to a starter unit; clips not fully engaged; uneven floor surface. | Ensure the add-on unit is securely connected to a stable starter unit. Check all clips for full engagement. Adjust the height-adjustable feet (if applicable, or use shims) to level the unit on an uneven floor. |
| Shelf sags under weight | Overloaded shelf; weight not evenly distributed. | Reduce the weight on the shelf. Redistribute items to ensure weight is spread evenly across the entire shelf surface. Do not exceed 1000 lbs. per shelf. |
8. Espesifikasyon
| Karakteristik | Detay |
|---|---|
| Nimewo Modèl | SAF5292GR |
| Dimansyon pwodwi (D x W x H) | 18"D x 48"W x 72"H |
| Materyèl | Alloy Steel |
| Koulè | Gri metalik |
| Kantite etajè | 4 |
| Kalite etajè | Etajè Nivo |
| Kapasite pwa (pa etajè) | 1000 liv. (egalman distribye) |
| Kapasite pwa total | 2500 liv. (egalman distribye) |
| Asanble obligatwa | Yes (Tool-less) |
| Pwa atik | 51 liv |
| GTIN/UPC | 073555529234 |
9. Garanti ak sipò
Garanti manifakti: This Safco product is covered by a manufacturer limited lifetime warranty. Please refer to the official Safco website or contact customer service for full warranty details and terms.
Swen pwodwi: For specific product care instructions, please refer to this manual's Maintenance section or visit the official Safco websit.
Sipò Kliyan: For assistance with assembly, missing parts, or any other inquiries, please contact Safco customer support. Visit www.safcoproducts.com pou enfòmasyon kontak ak lòt resous.
